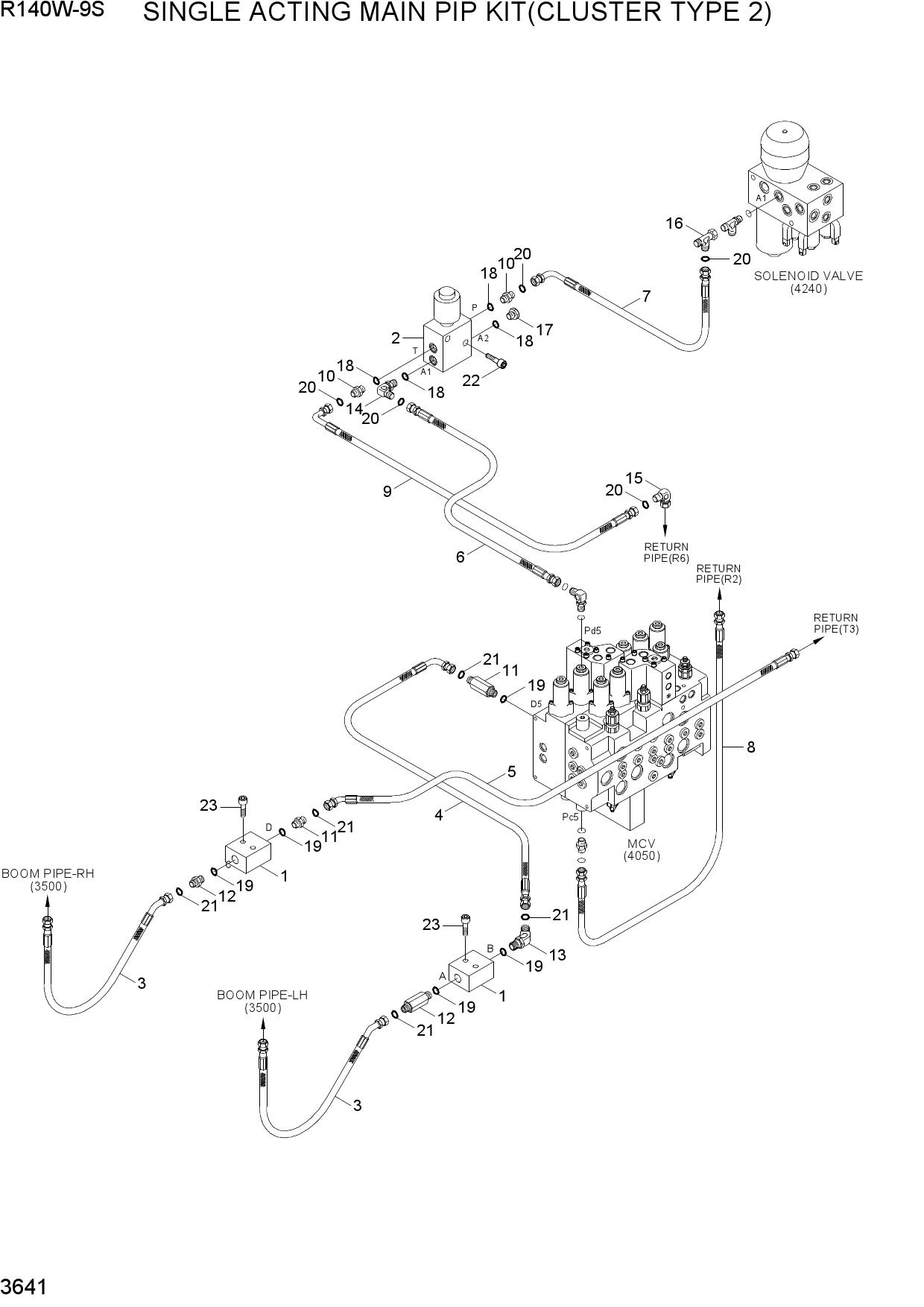

Запчасти для колесных экскаваторов Hyundai R140W-9S S/ACTING MAIN PIP KIT(CLUSTER TYPE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 38Q4-93110 | S/ACT MAIN PIPING KIT | |
| 1 | 31N4-95280 | BLOCK-HOSE JOINT | |
| 2 | 31Q6-91220 | VALVE-SOLENOID | |
| 2-1 | EDH0427V-HD | COIL | |
| 3 | P924-126023 | HOSE ASSY-ORFS 0X45 | |
| 4 | P933-126016 | HOSE ASSY-ORFS 0X90 | |
| 5 | P923-123026 | HOSE ASSY-ORFS | |
| 6 | P910-042045 | HOSE ASSY-ORFS 0X0 | |
| 7 | P930-042007 | HOSE ASSY-ORFS 0X90 | |
| 8 | P910-042021 | HOSE ASSY-ORFS 0X0 | |
| 9 | P930-042039 | HOSE ASSY-ORFS 0X90 | |
| 10 | X500-110001 | CONNECTOR-ORFS | |
| 11 | X500-110004 | CONNECTOR-ORFS | |
| 12 | X511-112543 | CONNECTOR-LONG,ORFS | |
| 13 | X530-110004 | ELBOW-45,ORFS | |
| 14 | X520-110001 | ELBOW-90,ORFS | |
| 15 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 16 | X840-515151 | TEE-R/TYPE,ORFS | |
| 17 | P220-110102 | PLUG-HEX | |
| 18 | S631-011004 | O-RING | |
| 19 | S631-024004 | O-RING | |
| 20 | S621-011001 | O-RING | |
| 21 | S621-018001 | O-RING | |
| 22 | S109-080406 | BOLT-SOCKET | |
| 23 | S109-120556 | BOLT-SOCKET |
