- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING 1(ADJUST BOOM)
- UPPER HYD PIPING 2(ADJUST BOOM)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(BOTTOM 1)
- PILOT HYD PIPING(BOTTOM 2)
- PILOT HYD PIPING(BASE 1, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 2, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 3, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 1, CLUSTER TYPE 2)
- PILOT HYD PIPING(BASE 2, CLUSTER TYPE 2)
- PILOT HYD PIPING(BASE 3, CLUSTER TYPE 2)
- PILOT HYD PIPING(4 OUTRIGGER)
- POWER TRAIN HYD PIPING 1
- POWER TRAIN HYD PIPING 2
- POWER TRAIN HYD PIPING 3
- LOWER HYD PIPING 1
- LOWER HYD PIPING 2
- LOWER HYD PIPING(REAR BLADE, -#0014)
- LOWER HYD PIPING(REAR BLADE, #0015-)
- LOWER HYD PIPING(FRONT BLADE, -#0014)
- LOWER HYD PIPING(FRONT BLADE, #0015-)
- LOWER HYD PIPING(2 OUTRIGGER, -#0014)
- LOWER HYD PIPING(2 OUTRIGGER, #0015-)
- LOWER HYD PIPING 1(F/OUT, R/BLD, -#0014)
- LOWER HYD PIPING 1(F/OUT, R/BLD, #0015-)
- LOWER HYD PIPING 2(F/OUT, R/BLD,-#0014)
- LOWER HYD PIPING 2(F/OUT, R/BLD, #0015-)
- LOWER HYD PIPING 1(4 OUTRIGGER, -#0014)
- LOWER HYD PIPING 1(4 OUTRIGGER, #0015-)
- LOWER HYD PIPING 2(4 OUTRIGGER, -#0014)
- LOWER HYD PIPING 2(4 OUTRIGGER, #0015-)
- LOWER HYD PIPING 1(F/BLD, R/OUT, -#0014)
- LOWER HYD PIPING 1(F/BLD, R/OUT, #0015-)
- LOWER HYD PIPING 2(F/BLD, R/OUT, -#0014)
- LOWER HYD PIPING 2(F/BLD, R/OUT, #0015-)
- LOWER HYD PIPING 1(F/BLD, R/BLD, -#0014)
- LOWER HYD PIPING 1(F/BLD, R/BLD, #0015-)
- LOWER HYD PIPING 2(F/BLD, R/BLD, -#0014)
- LOWER HYD PIPING 2(F/BLD, R/BLD, #0015)
- BOOM HYD PIPING(4.6M, STD)
- BOOM HYD PIPING(4.1M, OPT)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(4.6M, STD)
- BOOM GREASE LUB SYSTEM(4.1M, OPT)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- ARM HYD PIPING
- ARM HYD PIPING(3.0M)
- ARM SAFETY LOCK SYSTEM
- ATTACH PIPING KIT(S & D/ACTING)
- S/ACTING MAIN PIP KIT(CLUSTER TYPE 1)
- S/ACTING MAIN PIP KIT(CLUSTER TYPE 2)
- D/ACTING MAIN PIP KIT 1(CLUSTER TYPE 1)
- D/ACTING MAIN PIP KIT 2(CLUSTER TYPE 1)
- D/ACTING MAIN PIP KIT(CLUSTER TYPE 2)
- SINGLE PEDAL(DOUBLE ACTING)

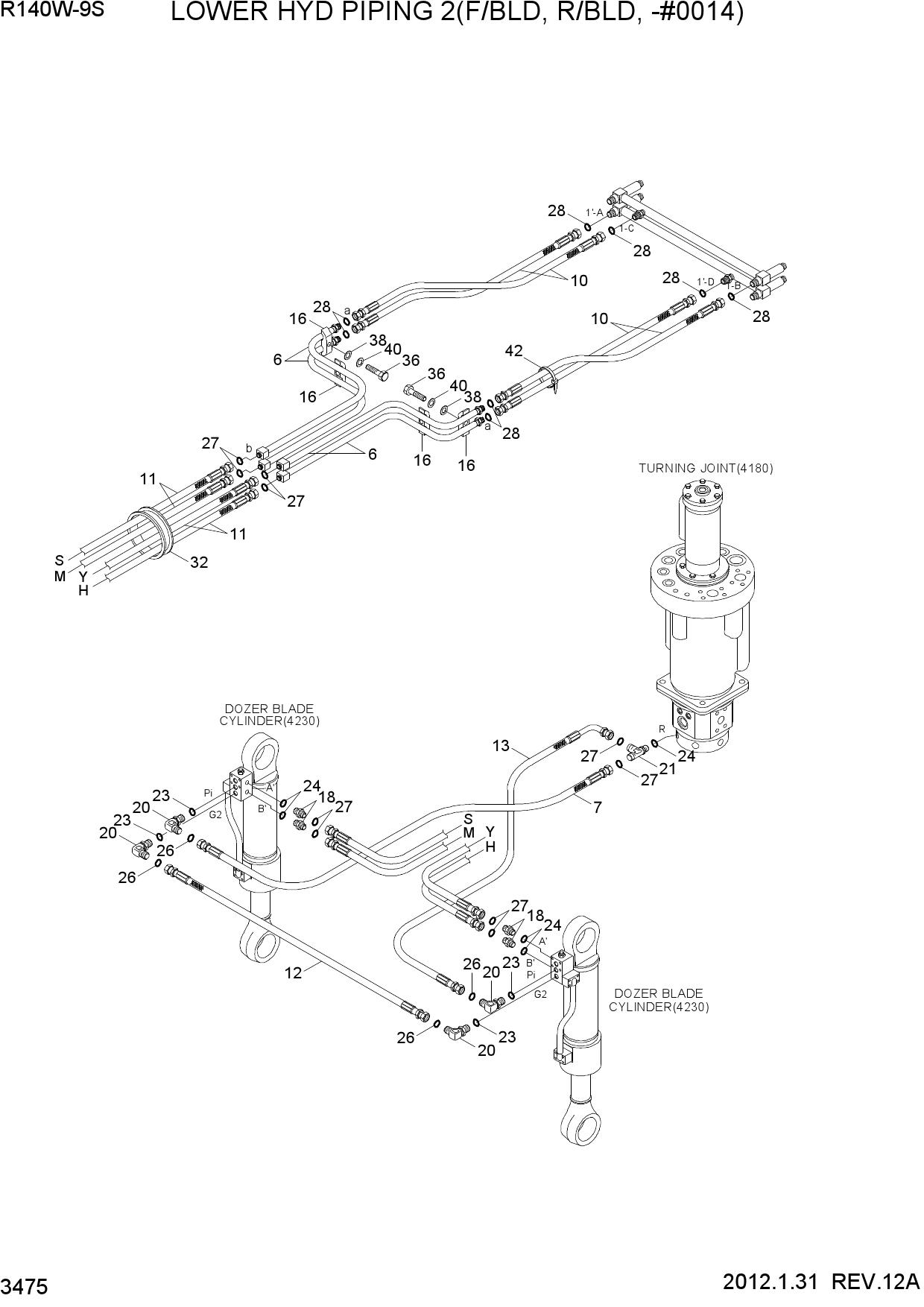

Запчасти для колесных экскаваторов Hyundai R140W-9S LOWER HYD PIPING 2(F/BLD, R/BLD, -#0014)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | 31Q4-70360 | PIPE ASSY | |
| 7 | P913-044050 | HOSE ASSY-ORFS 0X0 | |
| 10 | P913-089029 | HOSE ASSY-ORFS 0X0 | |
| 11 | P913-069018 | HOSE ASSY-ORFS 0X0 | |
| 12 | P913-049014 | HOSE ASSY-ORFS 0X0 | |
| 13 | P933-044050 | HOSE ASSY-ORFS 0X90 | |
| 16 | 31EE-50180 | CLAMP ASSY | |
| 18 | X500-110002 | CONNECTOR-ORFS | |
| 20 | X520-110001 | ELBOW-90,ORFS | |
| 21 | X820-065151 | TEE-R/TYPE,ORFS | |
| 23 | S631-011004 | O-RING | |
| 24 | S631-014004 | O-RING | |
| 26 | S621-011001 | O-RING | |
| 27 | S621-012001 | O-RING | |
| 28 | S621-014001 | O-RING | |
| 32 | S760-091414 | GROMMET | |
| 36 | S017-120606 | BOLT-HEX | |
| 38 | S403-121006 | WASHER-PLAIN | |
| 40 | S411-120006 | WASHER-SPRING | |
| 42 | S552-102370 | CLAMP-BAND |
