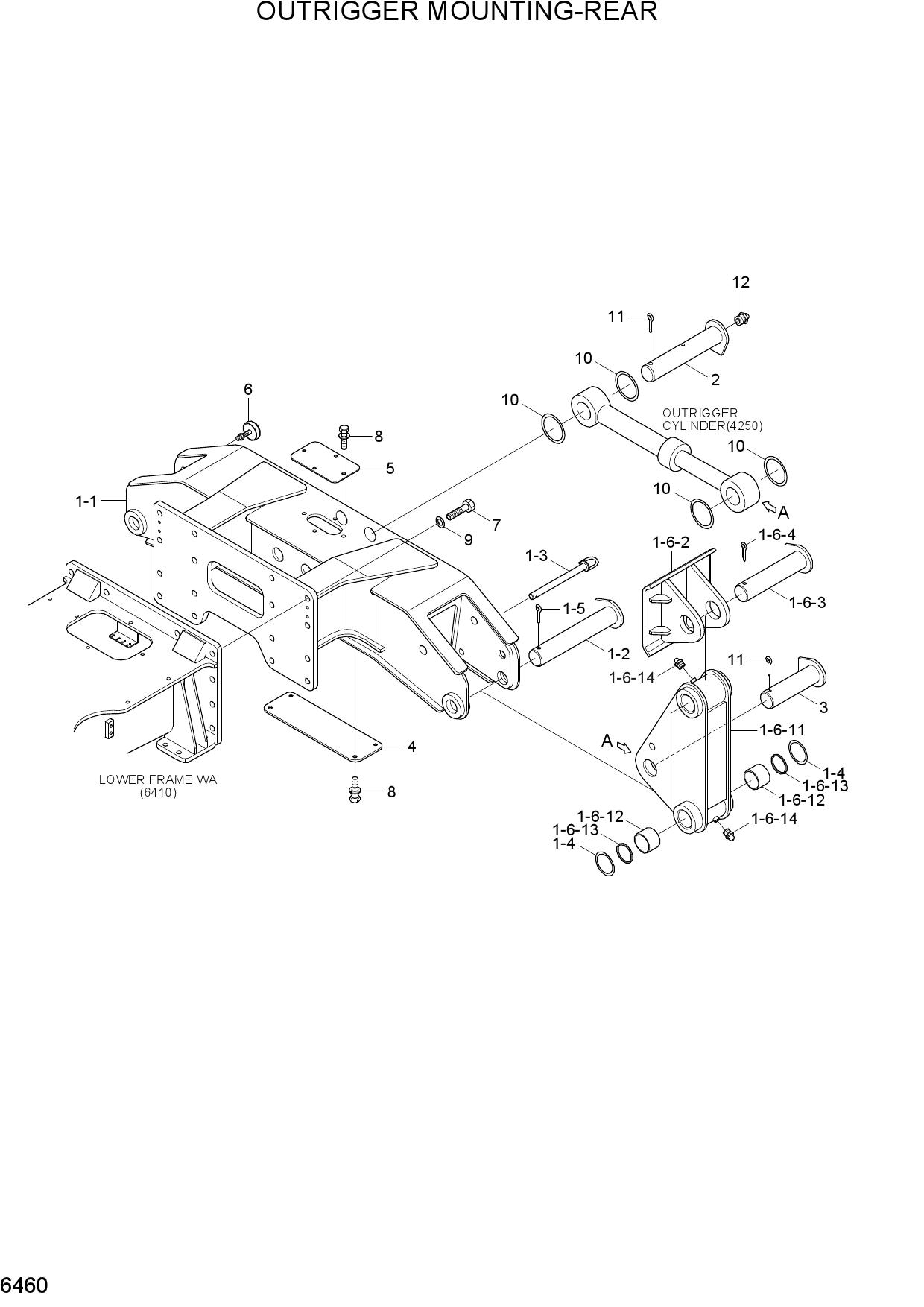

Запчасти для колесных экскаваторов Hyundai R140W-7A OUTRIGGER MOUNTING-REAR
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 53N4-53000 | OUTRIGGER ASSY-REAR | |
| 1-1 | 53N4-53010 | FRAME WA-RR OUTRIGG | |
| 1-2 | 53N4-55510 | PIN ASSY | |
| 1-3 | 51EK-52542BG | PIN-SAFETY | |
| 1-4 | S391-070120 | SHIM-ROUND(1.0T) | |
| 1-5 | S461-800902 | PIN-SPLIT | |
| 1-6 | 53N4-53100 | LEG & FOOT ASSY | |
| 1-6-1 | 53N4-53200 | LEG ASSY | |
| 1-6-11 | 53N4-53210 | LEG WA | |
| 1-6-12 | 51EK-52550 | BUSHING | |
| 1-6-13 | S700-070206 | SEAL-DUST | |
| 1-6-14 | S651-810002 | NIPPLE-GREASE | |
| 1-6-2 | 53N4-53300 | FOOT WA | |
| 1-6-3 | 53N4-55520 | PIN ASSY | |
| 1-6-4 | S461-800902 | PIN-SPLIT | |
| 2 | 53N4-55530 | PIN ASSY | |
| 3 | 53N4-55540 | PIN ASSY | |
| 4 | 53N4-52570 | PLATE-COVER | |
| 5 | 53N4-27120 | COVER(B) | |
| 6 | 51EK-52990 | REFLECTOR-REAR | |
| 7 | S018-24050D | BOLT-HEX | |
| 8 | S037-122556 | BOLT-W/WASHER | |
| 9 | S441-240006 | WASHER-HARDENED | |
| 10 | S391-070130 | SHIM-ROUND(1.0T) | |
| 11 | S461-800902 | PIN-SPLIT | |
| 12 | S651-810002 | NIPPLE-GREASE |
