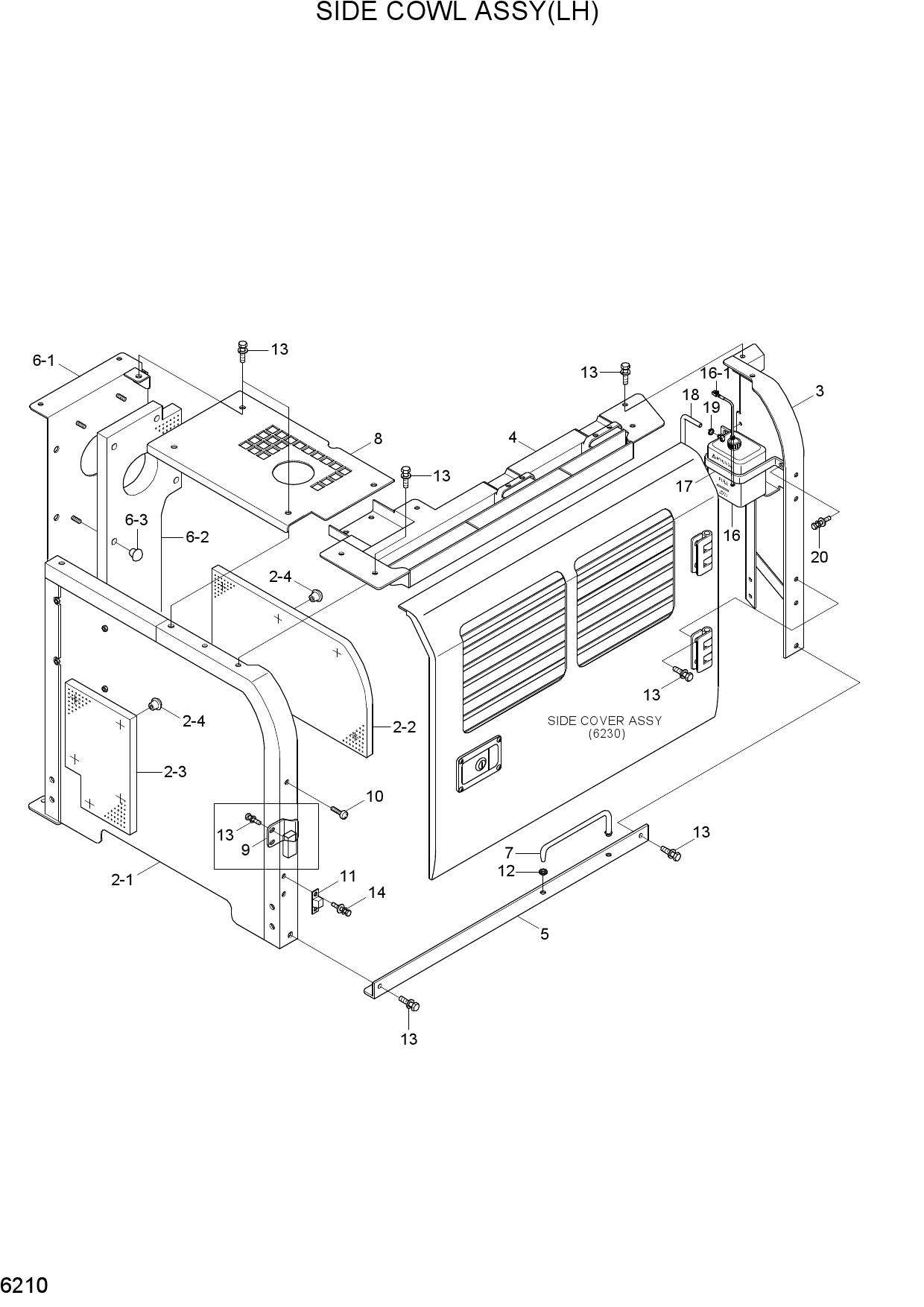

Запчасти для колесных экскаваторов Hyundai R140W-7A SIDE COWL ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 75N4-52301 | SUPPORT ASSY-LH(FR) | |
| 2-1 | 75N4-52311 | SUPPORT WA-LH(FR) | |
| 2-2 | 75N4-52330 | SPONGE | |
| 2-3 | 75N4-52340 | SPONGE | |
| 2-4 | 71EM-51580 | CAP-STUD BOLT | |
| 3 | 72N4-52500 | SUPPORT WA-LH(RR) | |
| 4 | 72N4-52602 | HOOD WA-R/D | |
| 5 | 71N4-62700 | SUPPORT-LH/BOTTOM | |
| 6 | 75N4-52901 | SCREEN ASSY-MCV | |
| 6-1 | 75N4-52911 | SCREEN-MCV | |
| 6-2 | 75N4-52921 | SPONGE | |
| 6-3 | 71EM-51580 | CAP-STUD BOLT | |
| 7 | 71N8-52950 | STAY-SIDE COVER | |
| 8 | 75N4-55101 | HOOD-A/C | |
| 9 | 71N8-52492 | PLATE-LOCK | |
| 10 | 71EH-13150 | BUMPER-RUBBER | |
| 11 | 71EE-53540 | STOPPER-B | |
| 12 | S681-100400 | GROMMET | |
| 13 | S037-122556 | BOLT-W/WASHER | |
| 14 | S035-062026 | BOLT-W/WASHER | |
| 16 | 11N4-47010 | TANK-RESERVOIR | |
| 16-1 | 11EN-42400 | SENSOR-RESERVOIR | |
| 17 | 11ER-42530 | PLATE-CLAMP | |
| 18 | 11E3-4011 | HOSE | |
| 19 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 20 | S035-082026 | BOLT-W/WASHER |
