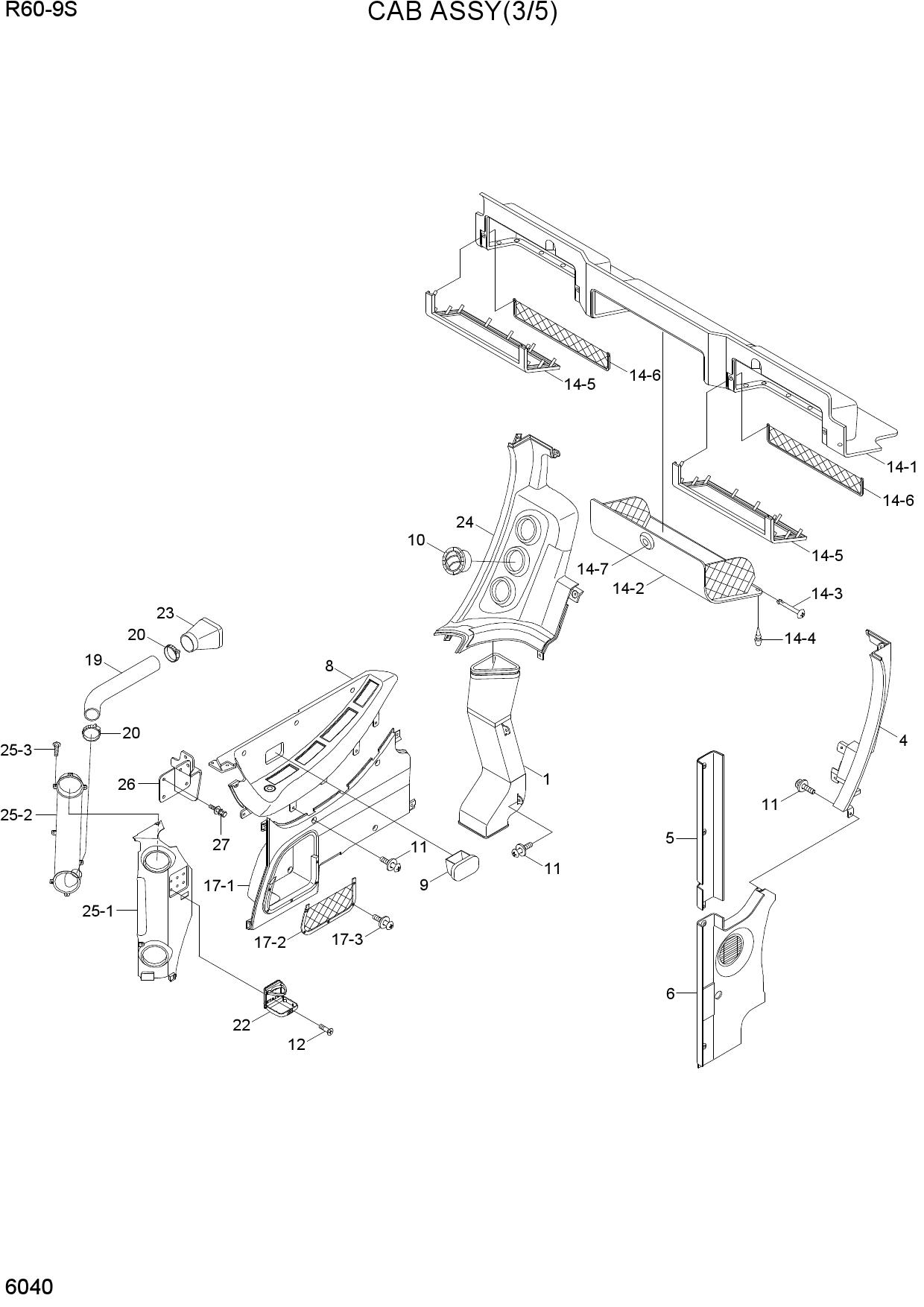

Запчасти для гусеничных экскаваторов Hyundai R60-9S CAB ASSY(3/5)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-41 | 71M9-26000 | CAB SUB ASSY | |
| 1 | 71M9-21160 | DUCT-REAR(2) | |
| 4 | 71M9-21201 | TRIM-PILLAR,LH | |
| 5 | 71M9-21221 | TRIM-CENTER PILLAR,LH | |
| 6 | 71M9-21151 | TRIM-LH,LOW | |
| 8 | 71M9-21091 | PANEL-SWITCH | |
| 9 | E171-1176 | ASHTRAY | |
| 10 | 71Q6-22400 | NOZZLE-AIR | |
| 11 | S002-06015B | SCREW-TRUS HEAD | |
| 12 | S141-040166 | SCREW-FLAT HD | |
| 14 | 71M9-23411 | POCKET ASSY-REAR | |
| 14-1 | 71M9-23421 | POCKET-REAR | |
| 14-2 | 71M9-23431 | COVER-CTR | |
| 14-3 | 71M9-23440 | HINGE | |
| 14-4 | 71M9-23450 | DAMPER | |
| 14-5 | 71M9-23460 | COVER-SIDE | |
| 14-6 | 71M9-23830 | NET | |
| 14-7 | 71M9-25440 | LOCK ASSY | |
| 17 | 71M9-25411 | TRIM ASSY-RH, LOW | |
| 17-1 | 71M9-21061 | TRIM-SIDE.RH.LOW(1) | |
| 17-2 | 71M9-23120 | NET ASSY | |
| 17-3 | S002-05015B | SCREW-TRUS HEAD | |
| 19 | 71M9-22951 | HOSE-DEFROSTER | |
| 20 | S520-055000 | CLAMP-HOSE | |
| 22 | 71M9-20870 | HOLDER-CUP | |
| 23 | 71M9-23730 | DUCT-DEFROSTER | |
| 24 | 71M9-25451 | PILLAR ASSY-REAR, RH | |
| 25 | 71M9-25471 | TRIM ASSY-FRONT |
