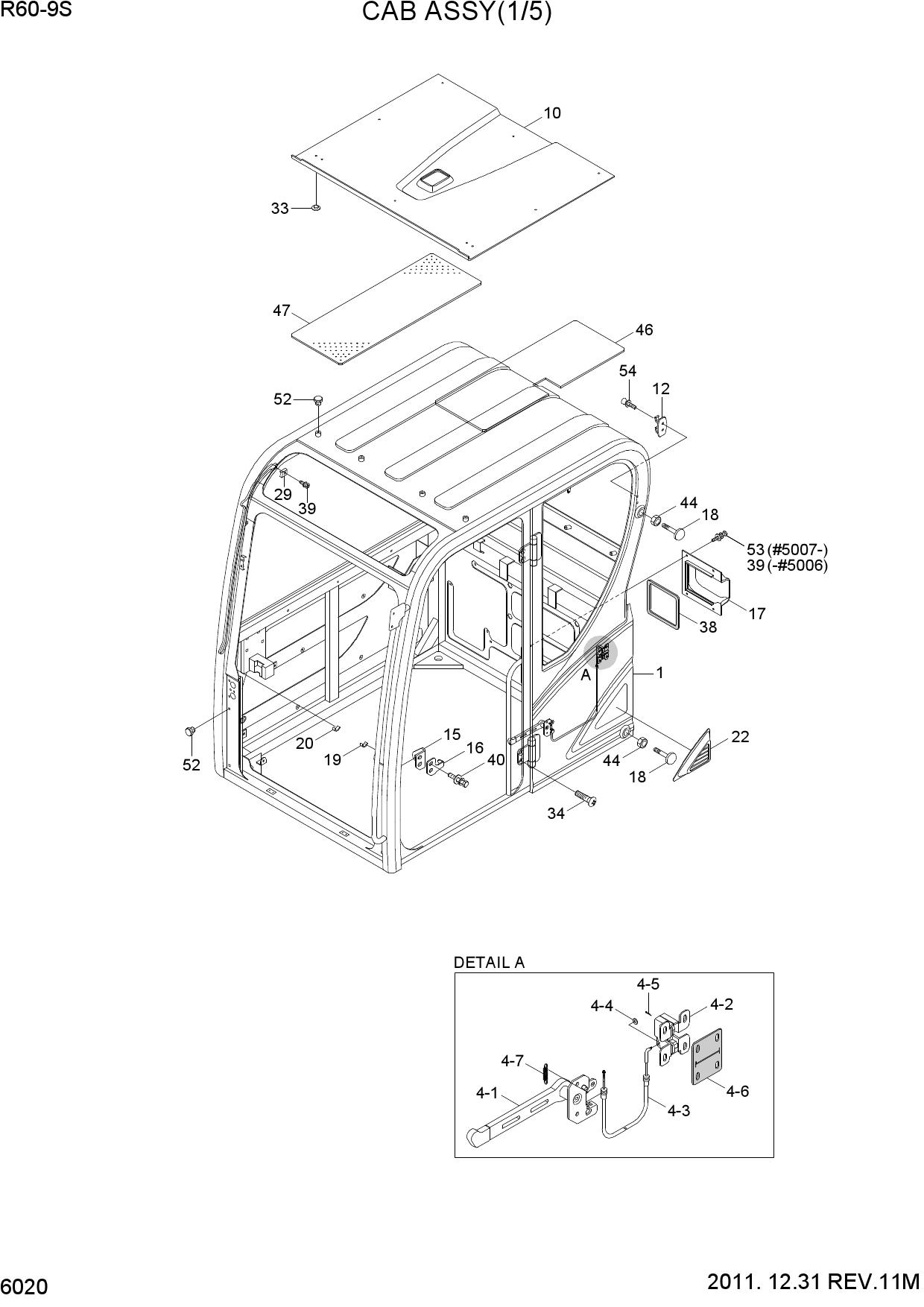

Запчасти для гусеничных экскаваторов Hyundai R60-9S CAB ASSY(1/5)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71M9-04000 | CAB ASSY | |
| * | 71M9-04001 | CABIN ASSY | |
| 1 | 71M9-00011 | CAB WA | |
| 1 | 71M9-00012 | CABIN WA | |
| 4 | 71M9-03720 | CATCH-BACK | |
| 4-1 | 71Q6-02640 | LEVER | |
| 4-2 | 71M9-03730 | CATCH | |
| 4-3 | 71M9-03860 | WIRE | |
| 4-4 | 71M9-03870 | WASHER-PLATE | |
| 4-5 | 71M9-03880 | R-PIN | |
| 4-6 | 71M9-03890 | GASKET | |
| 4-7 | 71M9-03900 | SPRING | |
| 10 | 71M9-00291 | HEADLINING | |
| 12 | 71N6-02920 | HOOK-COAT | |
| 15 | 71M9-03911 | STRIKER | |
| 16 | 71M9-03920 | GUARD-STRIKER | |
| 17 | 71M9-03521 | COVER-AIR CON | |
| 17 | 71M9-03522 | COVER-AIR CON | |
| 18 | 71EH-13150 | BUMPER-RUBBER | |
| 19 | 71M8-01510 | STOPPER-S/DOOR/LH | |
| 20 | 71M8-01520 | STOPPER-S/DOOR/RH | |
| 22 | 71M9-03550 | NOZZLE | |
| 29 | 71M9-03750 | STOPPER | |
| 33 | 71M9-03980 | FASTENER | |
| 34 | 71EH-10400 | SCREW | |
| 38 | 71M9-03510 | PAD | |
| 39 | S132-061626 | SCREW-W/WASHER | |
| 39 | S132-061626 | SCREW-W/WASHER | |
| 40 | S035-081626 | BOLT-W/WASHER | |
| 44 | S203-101006 | NUT-HEX | |
| 46 | 71M9-03840 | SPONGE | |
| 47 | 71M9-03850 | SPONGE | |
| 52 | 41QA-40150 | CAP-HEX | |
| 53 | S035-061626 | BOLT-W/WASHER | |
| 54 | S141-040166 | SCREW-FLAT HD |
