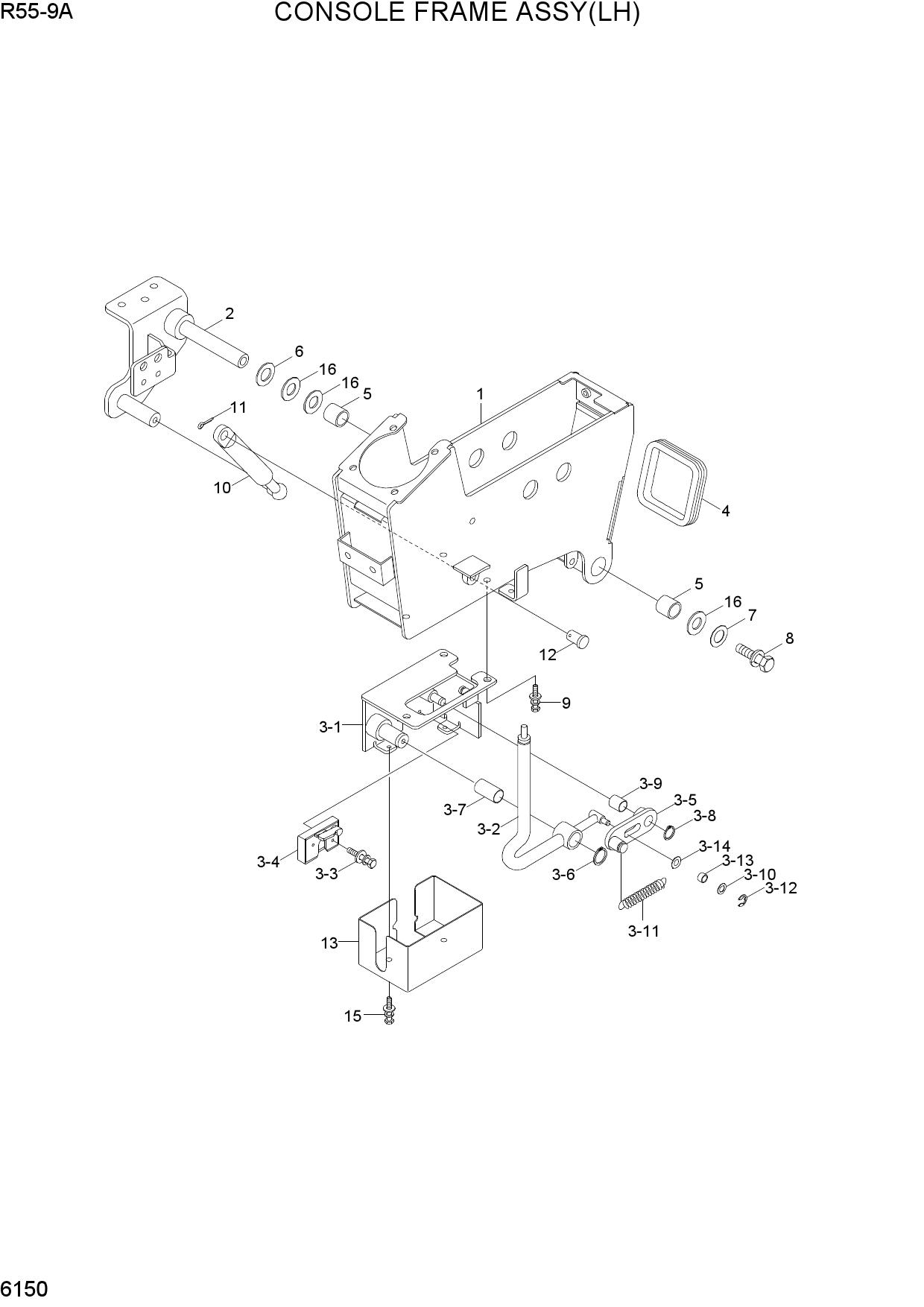

Запчасти для гусеничных экскаваторов Hyundai R55-9A CONSOLE FRAME ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 72M9-23670 | FRAME ASSY-CONSOLE, LH | |
| 1 | 71M9-22232 | FRAME WA-CONSOLE, LH | |
| 2 | 72M9-23720 | BRACKET WA-CONSOLE, RR | |
| 3 | 71M9-22512 | TILT ASSY | |
| 3-1 | 71M9-22522 | BRACKET WA-TILT | |
| 3-2 | 71M9-22552 | LEVER WA-SAFETY | |
| 3-3 | S035-062026 | BOLT-W/WASHER | |
| 3-4 | 71M8-20570 | LATCH-TILT | |
| 3-5 | 71M8-20651 | LINK-SAFETY LEVER | |
| 3-6 | S601-020004 | RING-RETAINING | |
| 3-7 | S731-020025 | BUSHING-DU | |
| 3-8 | S601-010002 | RING-RETAINING | |
| 3-9 | S731-010012 | BUSHING-DU | |
| 3-10 | 71M8-21430 | SHIM | |
| 3-11 | 71N6-21610 | SPRING | |
| 3-12 | P560-040002 | RING-E/SNAP | |
| 3-13 | 71M8-21420 | ROLLER | |
| 3-14 | S403-08200B | WASHER-PLAIN | |
| 4 | 71Q6-21420 | GROMMET | |
| 5 | S731-020020 | BUSHING-DU | |
| 6 | 71Q6-22631 | SHIM(1.0T)-CONSOLE | |
| 7 | 71Q6-23700 | SHIM(2.0T)-ROUND | |
| 8 | S037-102016 | BOLT-W/WASHER | |
| 9 | S035-081526 | BOLT-W/WASHER | |
| 10 | 71Q4-20050 | SPRING-GAS | |
| 11 | S461-160252 | PIN-SPLIT | |
| 12 | S491-080252 | PIN-CLEVIS | |
| 13 | 71M9-22932 | COVER | |
| 15 | S035-061526 | BOLT-W/WASHER | |
| 16 | 71Q6-23080 | SHIM(1.0T)-CONSOLE |
