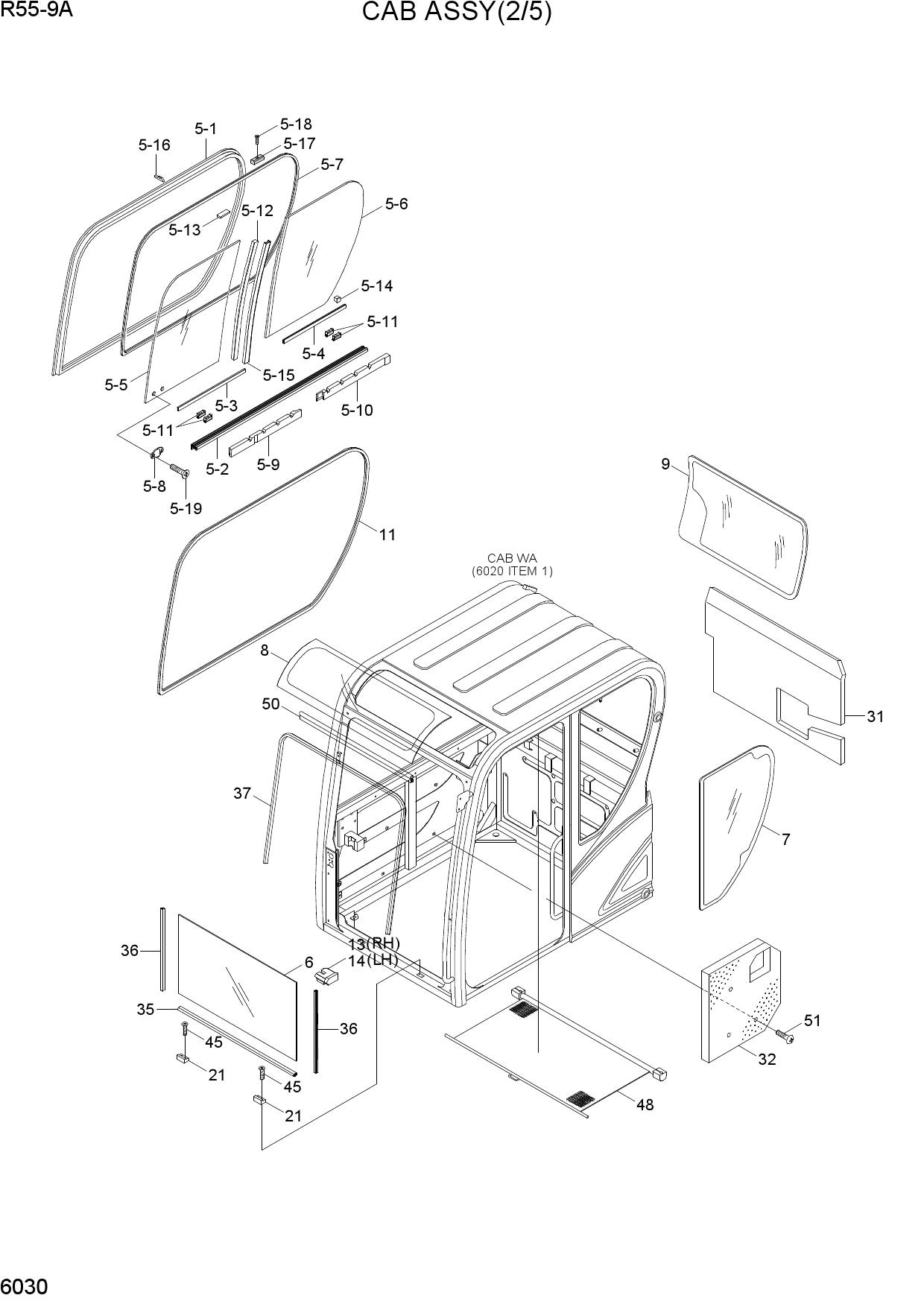

Запчасти для гусеничных экскаваторов Hyundai R55-9A CAB ASSY(2/5)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 71M9-01200 | SASH ASSY-RH | |
| 5-1 | 71M9-01210 | FRAME-SASH | |
| 5-3 | 71M9-01350 | RAIL-FR | |
| N5-4 | 71M9-01360 | RAIL-RR | |
| 5-5 | 71M9-01310 | GLASS-RH,FRONT | |
| 5-6 | 71M9-01320 | GLASS-RH,REAR | |
| 5-7 | 71M9-01340 | SEAL | |
| 5-8 | 71Q6-03350 | CATCH | |
| 5-9 | 71M9-01300 | STOPPER | |
| 5-10 | 71M9-01330 | LOCK-HOOK/RR | |
| 5-11 | 71M9-01370 | RAIL-SLIDE | |
| 5-12 | 71M9-01380 | MOHAIR-CENTER | |
| 5-13 | 71M9-01610 | STOPPER | |
| N5-14 | 71M9-01620 | RUBBER | |
| 5-15 | 71M9-01391 | CENTER BAR | |
| N5-16 | 71M9-01630 | RUBBER | |
| N5-17 | 71M9-01640 | STOPPER | |
| 5-18 | S141-040126 | SCREW-FLAT HD | |
| 5-19 | S141-040166 | SCREW-FLAT HD | |
| 6 | 71M8-01441 | GLASS-FRONT/LOWER | |
| 7 | 71M9-03010 | GLASS-LH,REAR | |
| 8 | 71M9-03030 | GLASS-TOP | |
| 9 | 71M9-03021 | GLASS-REAR | |
| 11 | 71M9-03830 | SEAL | |
| 13 | 71M9-03700 | STOPPER-RUBBER,LH | |
| 14 | 71M9-03710 | STOPPER-RUBBER,RH | |
| 21 | 71N6-02880 | INSULATOR | |
| 31 | 71M9-03810 | SPONGE | |
| 32 | 71M9-03820 | SPONGE | |
| 35 | 71M8-01980 | WEATHER STRIP-F/LOWER | |
| 36 | 71M9-03790 | SEAL | |
| 37 | 71M8-01640 | WEATHER STRIP-FRONT | |
| 45 | S141-050206 | SCREW-FLAT HD | |
| 48 | 71M9-01150 | SUN VISOR-UP | |
| 50 | 71M9-03940 | SEAL | |
| 51 | S111-060226 | SCREW-SET,HEX SOC HD |
