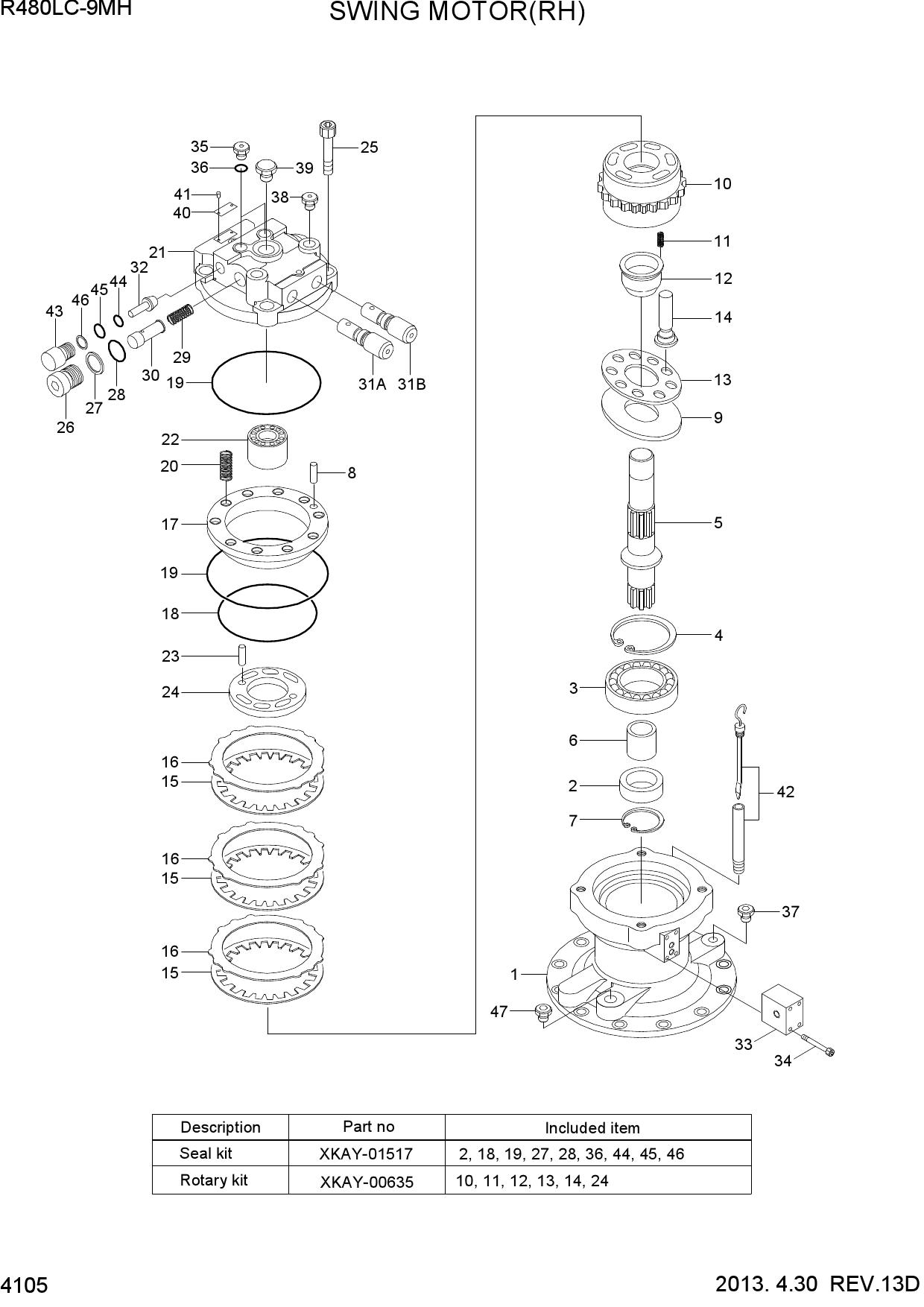

Запчасти для гусеничных экскаваторов Hyundai R480LC-9MH SWING MOTOR(RH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31QB-18270 | SWING MOTOR ASSY-RH | |
| * | 31QB-18271 | SWING MOTOR ASSY-RH | |
| *-1 | 31QB-18130 | SWING MOTOR UNIT-RH | |
| 1 | XKAY-02096 | BODY | |
| K2 | XKAY-00521 | SEAL-OIL | |
| 3 | XKAY-00522 | BEARING-ROLLER | |
| 4 | XKAY-00523 | RING-SNAP | |
| 5 | XKAY-01317 | SHAFT | |
| 6 | XKAY-00525 | BUSHING | |
| 7 | XKAY-00526 | RING-STOP | |
| 8 | XKAY-00625 | PIN | |
| 9 | XKAY-00527 | PLATE-SHOE | |
| A | XKAY-00635 | ROTARY KIT | |
| A-A | XKAY-01893 | CYLINDER BLOCK KIT | |
| N10 | XKAY-01511 | BLOCK-CYLINDER | |
| N11 | XKAY-00531 | SPRING | |
| 24 | XKAY-00544 | PLATE-VALVE | |
| A-B | XKAY-00532 | RETAINER KIT | |
| N12 | XKAY-00533 | GUIDE-BALL | |
| N13 | XKAY-00534 | PLATE-SET | |
| A-C | XKAY-00535 | PISTON KIT | |
| N14 | XKAY-00536 | PISTON ASSY | |
| 15 | XKAY-00537 | PLATE-FRICTION | |
| 16 | XKAY-00538 | PLATE | |
| 17 | XKAY-00632 | PISTON-BRAKE | |
| K18 | XKAY-00468 | O-RING | |
| K19 | XKAY-00540 | O-RING | |
| 20 | XKAY-00541 | SPRING | |
| 21 | XKAY-01319 | COVER-REAR | |
| 22 | XKAY-00543 | BEARING-NEEDLE | |
| 23 | XKAY-00382 | PIN | |
| 25 | XKAY-00546 | BOLT-WRENCH | |
| 26 | XKAY-00309 | PLUG | |
| K27 | XKAY-00141 | RING-BACK UP | |
| K28 | XKAY-00310 | O-RING | |
| 29 | XKAY-00311 | SPRING | |
| 30 | XKAY-00312 | CHECK | |
| 31A | XKAY-01475 | RELIEF VALVE ASSY | |
| 31B | XKAY-01476 | RELIEF VALVE ASSY | |
| 32 | XKAY-00314 | VLV ASSY-REACTIONLESS | |
| 33 | XKAY-01887 | TIME DELAY VALVE ASSY | |
| 34 | XKAY-00149 | BOLT-WRENCH | |
| 35 | XKAY-00150 | PLUG | |
| K36 | XKAY-00151 | O-RING | |
| 37 | XKAY-00140 | PLUG | |
| 38 | XKAY-00975 | PLUG | |
| 39 | XKAY-00548 | PLUG | |
| 40 | XKAY-01886 | NAME PLATE | |
| 41 | XKAY-00277 | RIVET | |
| 42 | XKAY-02139 | GAUGE-LEVEL | |
| 43 | XKAY-00322 | PLUG | |
| K44 | XKAY-00324 | O-RING | |
| K45 | XKAY-00247 | O-RING | |
| K46 | XKAY-00605 | RING-BACK UP | |
| 47 | XKAY-01219 | PLUG | |
| K | XKAY-01517 | SEAL KIT |
