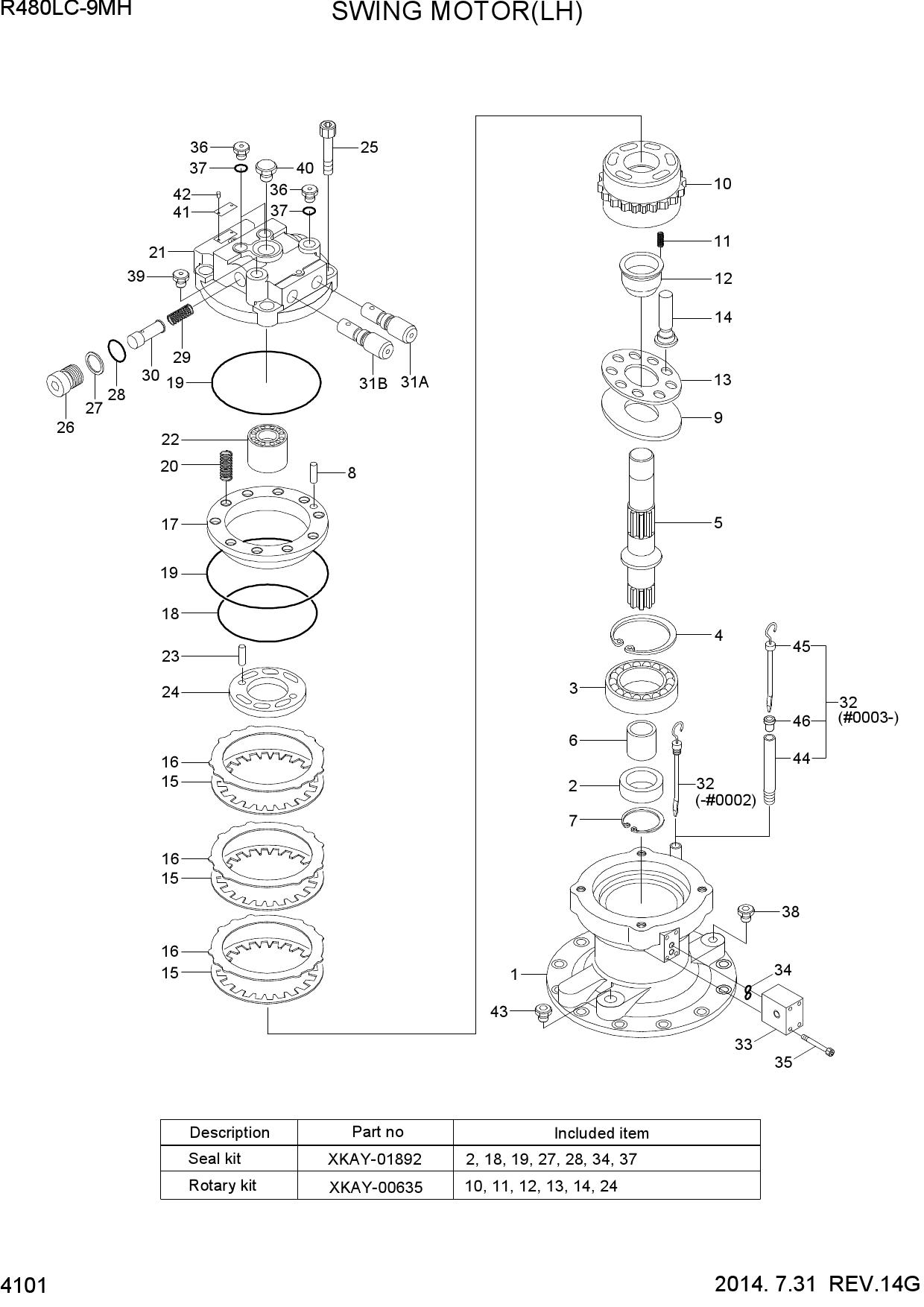

Запчасти для гусеничных экскаваторов Hyundai R480LC-9MH SWING MOTOR(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31QB-18250 | SWING MOTOR ASSY-LH | |
| * | 31QB-18251 | SWING MOTOR ASSY-LH | |
| * | 31QB-18251SG8 | SWING MOTOR ASSY | |
| *-1 | 31QB-18160 | SWING MOTOR UNIT-LH | |
| *-1 | 31QB-18160AR | SWING MOTOR | |
| 1 | XKAY-02096 | BODY | |
| K2 | XKAY-00521 | SEAL-OIL | |
| 3 | XKAY-00522 | BEARING-ROLLER | |
| 4 | XKAY-00523 | RING-SNAP | |
| 5 | XKAY-01317 | SHAFT | |
| 5 | XKAY-02248 | SHAFT | |
| 6 | XKAY-00525 | BUSHING | |
| 7 | XKAY-00526 | RING-STOP | |
| 8 | XKAY-00625 | PIN | |
| 9 | XKAY-00527 | PLATE-SHOE | |
| A | XKAY-00635 | ROTARY KIT | |
| A | XKAY-02162 | ROTARY KIT | |
| A-A | XKAY-01893 | CYLINDER BLOCK KIT | |
| A-A | XKAY-02163 | CYLINDER BLOCK KIT | |
| N10 | XKAY-01511 | BLOCK-CYLINDER | |
| N10 | XKAY-02164 | BLOCK-CYLINDER | |
| N11 | XKAY-00531 | SPRING | |
| 24 | XKAY-00544 | PLATE-VALVE | |
| A-B | XKAY-00532 | RETAINER KIT | |
| N12 | XKAY-00533 | GUIDE-BALL | |
| N13 | XKAY-00534 | PLATE-SET | |
| A-C | XKAY-00535 | PISTON KIT | |
| N14 | XKAY-00536 | PISTON ASSY | |
| 15 | XKAY-00537 | PLATE-FRICTION | |
| 16 | XKAY-00538 | PLATE | |
| 17 | XKAY-00632 | PISTON-BRAKE | |
| K18 | XKAY-00468 | O-RING | |
| K19 | XKAY-00540 | O-RING | |
| 20 | XKAY-00541 | SPRING | |
| 21 | XKAY-01888 | COVER-REAR | |
| 22 | XKAY-00543 | BEARING-NEEDLE | |
| 23 | XKAY-00382 | PIN | |
| 23 | XKAY-02166 | PIN | |
| 25 | XKAY-00546 | BOLT-WRENCH | |
| 26 | XKAY-00309 | PLUG | |
| K27 | XKAY-00141 | RING-BACK UP | |
| K28 | XKAY-00310 | O-RING | |
| 29 | XKAY-00311 | SPRING | |
| 30 | XKAY-00312 | CHECK | |
| 31A | XKAY-01475 | RELIEF VALVE ASSY | |
| 31B | XKAY-01476 | RELIEF VALVE ASSY | |
| 32 | XKAY-02139 | GAUGE-LEVEL | |
| 32 | XKAY-02249 | GAUGE-LEVEL | |
| 44 | XKAY-02168 | LEVEL GAUGE PIPE | |
| 45 | XKAY-02251 | LEVEL GAUGE BAR | |
| 46 | XKAY-01988 | PLUG | |
| 32 | XKAY-02139 | GAUGE-LEVEL | |
| 33 | XKAY-01889 | BLOCK | |
| K34 | XKAY-01902 | O-RING | |
| 35 | XKAY-01890 | BOLT-WRENCH | |
| 36 | XKAY-00150 | PLUG | |
| K37 | XKAY-00151 | O-RING | |
| 38 | XKAY-00140 | PLUG | |
| 39 | XKAY-00975 | PLUG | |
| 40 | XKAY-00548 | PLUG | |
| 41 | XKAY-01891 | NAME PLATE | |
| 41 | XKAY-02250 | NAME PLATE | |
| 42 | XKAY-00277 | RIVET | |
| 43 | XKAY-01219 | PLUG | |
| K | XKAY-01892 | SEAL KIT |
