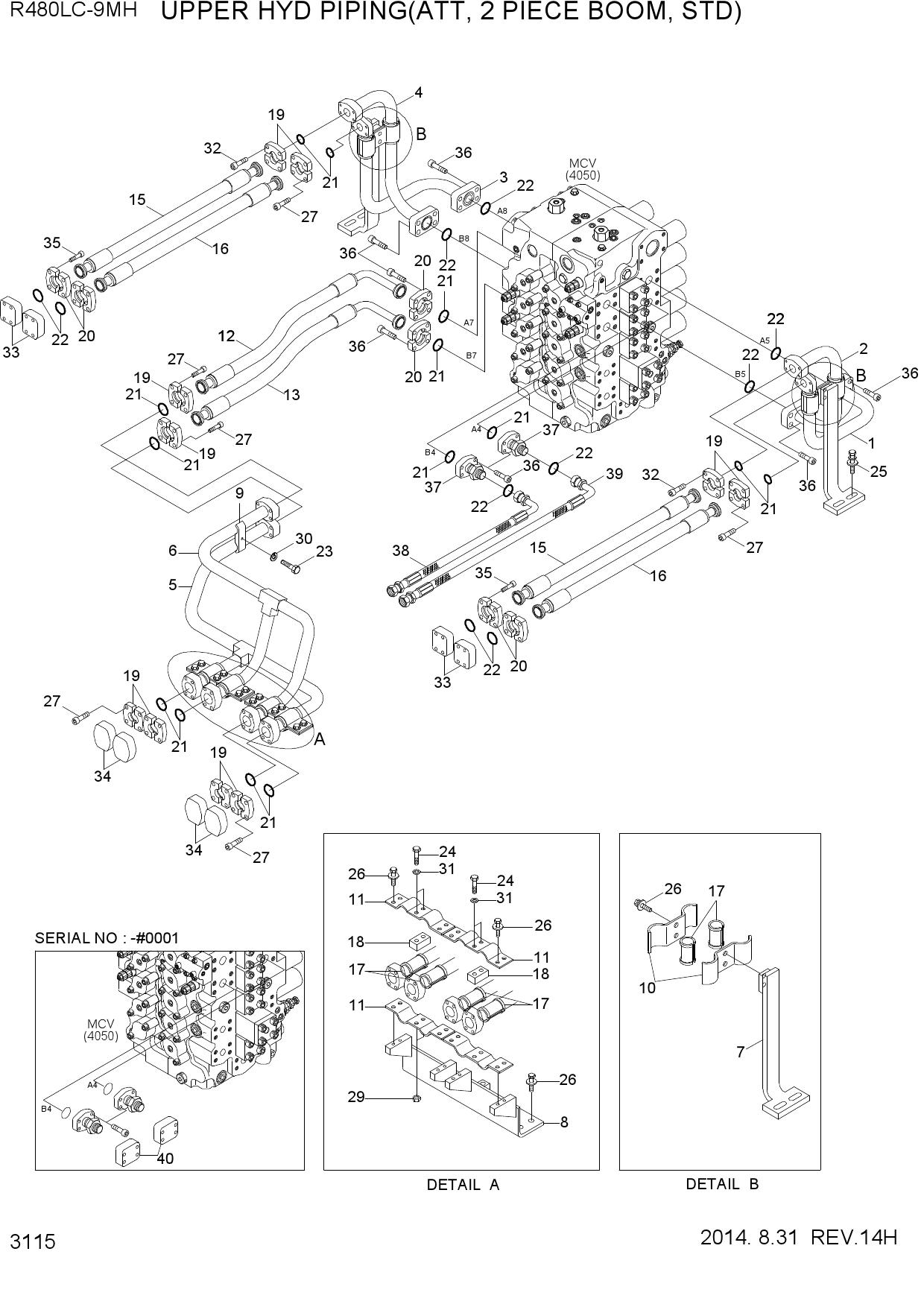

Запчасти для гусеничных экскаваторов Hyundai R480LC-9MH UPPER HYD PIPING(ATT, 2 PIECE BOOM, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31QB-12070 | PIPE WA | |
| 2 | 31QB-12080 | PIPE WA | |
| 3 | 31QB-12090 | PIPE WA | |
| 4 | 31QB-12100 | PIPE WA | |
| 5 | 31QB-12341 | PIPE WA | |
| 6 | 31QB-12351 | PIPE WA | |
| 7 | 31NB-12391 | BRACKET WA | |
| 8 | 34E7-01342 | BRACKET WA | |
| 9 | 31EM-12170 | CLAMP-PIPE | |
| 10 | 34E7-01390 | CLAMP | |
| 11 | 34E7-02720 | CLAMP | |
| 12 | 31QB-12230 | HOSE ASSY | |
| 13 | 31NB-12241 | HOSE ASSY | |
| 15 | 31NB-12442 | HOSE ASSY-FLG | |
| 15 | 31NB-12443 | HOSE ASSY-FLG | |
| 16 | 31NB-12452 | HOSE ASSY-FLG | |
| 16 | 31NB-12453 | HOSE ASSY-FLG | |
| 17 | 34E7-03510 | GROMMET | |
| 18 | 34E7-02730 | BLOCK | |
| 19 | P173-160104 | FLANGE-HYD,SPLIT | |
| 20 | P174-200106 | FLANGE-SPLIT | |
| 21 | Y171-024004 | O-RING | |
| 22 | Y171-027004 | O-RING | |
| 23 | S017-100656 | BOLT-HEX | |
| 24 | S017-120506 | BOLT-HEX | |
| 25 | S037-123026 | BOLT-W/WASHER | |
| 26 | S037-123056 | BOLT-W/WASHER | |
| 27 | S109-100306 | BOLT-SOCKET | |
| 29 | S205-12100B | NUT-HEX | |
| 30 | S411-100006 | WASHER-SPRING | |
| 31 | S441-12000B | WASHER-HARDENED | |
| 32 | S109-100456 | BOLT-SOCKET | |
| 33 | P184-202212 | FLANGE-HYD,PLUGING | |
| 34 | P280-164000 | COVER-FLANGE | |
| 35 | S109-120456 | BOLT-SOCKET | |
| 36 | S109-120406 | BOLT-SOCKET | |
| 37 | 31QB-17120 | PIPE WA | |
| 38 | P933-087036 | HOSE ASSY-ORFS,THD(0X90) | |
| 39 | P933-087038 | HOSE ASSY-ORFS,THD(0X90) | |
| 40 | P184-161114 | FLANGE-HYD, PULGING |
