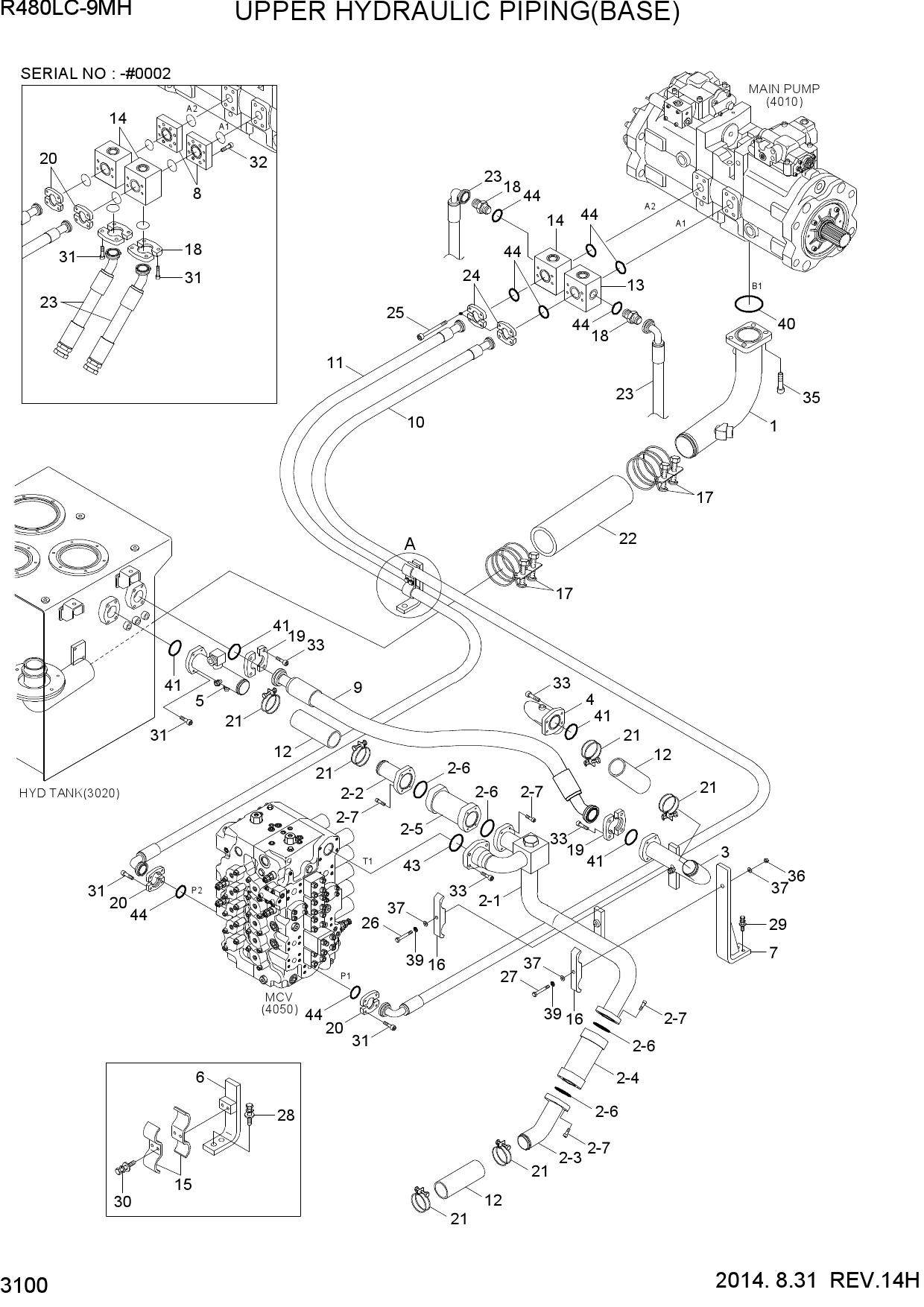

Запчасти для гусеничных экскаваторов Hyundai R480LC-9MH UPPER HYD PIPING(BASE)

< В раздел UPPER HYD PIPING(ATT, 3 PIECE BOOM, OPT) >

№	Номер	Описание
1	31QB-11020	PIPE ASSY
2	31QB-11044	PIPE SUB ASSY
2-1	31QB-11051	PIPE WA
2-2	31QB-11060	PIPE WA
2-3	31QB-11110	PIPE WA
2-4	31ND-11110	CHECK VALVE ASSY
2	31QB-11044	PIPE SUB ASSY
2-5	31ND-11130	CHECK VALVE ASSY
2-6	Y172-006004	O-RING
2-7	S109-120406	BOLT-SOCKET
3	31QB-11172	PIPE WA-RETURN
2-4	31ND-11110	CHECK VALVE ASSY
4	31QB-11121	PIPE WA
2-5	31ND-11130	CHECK VALVE ASSY
5	31QB-11090	PIPE WA
6	31NB-13070	BRACKET
7	31QB-11250	BRACKET
8	31EH-13170	BLOCK
9	31QB-11190	HOSE ASSY-FLG 0X45
10	31QB-11211	HOSE ASSY
10	31QB-12511	HOSE ASSY(HI-GRADE)
10	31QB-12512	HOSE ASSY(HI-GRADE)
11	31QB-11221	HOSE ASSY
11	31QB-12501	HOSE ASSY(HI-GRADE)
11	31QB-12502	HOSE ASSY(HI-GRADE)
12	31NB-13080	HOSE
13	31NB-12300	ELBOW WA-ORFS
13	31QB-11360	BLOCK
14	34E7-02921	BLOCK
4	31QB-11121	PIPE WA
14	31QB-11260	BLOCK
14	31QB-11350	BLOCK
15	34E7-01390	CLAMP
16	31ND-10451	CLAMP-PIPE
17	31Q6-10860	CLAMP-BAND,T-BOLT
18	P173-160104	FLANGE-HYD,SPLIT
18	P173-160104	FLANGE-HYD,SPLIT
18	X500-110005	CONNECTOR-ORFS
19	P173-280108	FLANGE-HYD,SPLIT
20	P174-160105	FLANGE-HYD,SPLIT
20	P174-160105	FLANGE-HYD,SPLIT
20	P174-160105	FLANGE-HYD,SPLIT
21	31Q6-10840	CLAMP-BAND,T-BOLT
22	P760-102042	HOSE-RUBBER,LOW
23	31QB-11230	HOSE ASSY-FLG
23	31QB-11370	HOSE ASSY-FLG(0)XSWV(90)
24	P174-160115	FLANGE-SPLIT
25	S017-100806	BOLT-HEX
25	S109-100956	BOLT-SOCKET
25	S109-121006	BOLT-SOCKET
26	S017-120756	BOLT-HEX
27	S017-121106	BOLT-HEX
10	31QB-11211	HOSE ASSY
10	31QB-12511	HOSE ASSY(HI-GRADE)
28	S037-103026	BOLT-W/WASHER
11	31QB-11221	HOSE ASSY
11	31QB-12501	HOSE ASSY(HI-GRADE)
29	S037-123026	BOLT-W/WASHER
30	S037-123526	BOLT-W/WASHER
31	S109-100306	BOLT-SOCKET
31	S109-100306	BOLT-SOCKET
31	S109-100306	BOLT-SOCKET
32	S109-120306	BOLT-SOCKET
32	S109-120306	BOLT-SOCKET
33	S109-120356	BOLT-SOCKET
34	S109-120406	BOLT-SOCKET
35	S109-16040D	BOLT-SOCKET
36	S205-12000B	NUT-HEX
15	34E7-01390	CLAMP
37	S403-12200B	WASHER-PLAIN
38	S411-100006	WASHER-SPRING
39	S411-120006	WASHER-SPRING
40	S631-085001	O-RING
41	Y172-006004	O-RING
43	Y172-010004	O-RING
17	31Q6-10860	CLAMP-BAND,T-BOLT
44	Y171-024004	O-RING
44	Y171-024004	O-RING
19	P173-280108	FLANGE-HYD,SPLIT
20	P174-160105	FLANGE-HYD,SPLIT
21	31Q6-10840	CLAMP-BAND,T-BOLT
22	P760-102042	HOSE-RUBBER,LOW
23	31QB-11230	HOSE ASSY-FLG
25	S017-100806	BOLT-HEX
26	S017-120756	BOLT-HEX
27	S017-121106	BOLT-HEX
28	S037-103026	BOLT-W/WASHER
29	S037-123026	BOLT-W/WASHER
30	S037-123526	BOLT-W/WASHER
31	S109-100306	BOLT-SOCKET
32	S109-120306	BOLT-SOCKET
33	S109-120356	BOLT-SOCKET
34	S109-120406	BOLT-SOCKET
35	S109-16040D	BOLT-SOCKET
36	S205-12000B	NUT-HEX
37	S403-12200B	WASHER-PLAIN
38	S411-100006	WASHER-SPRING
39	S411-120006	WASHER-SPRING
40	S631-085001	O-RING
41	Y172-006004	O-RING
43	Y172-010004	O-RING
44	Y171-024004	O-RING
