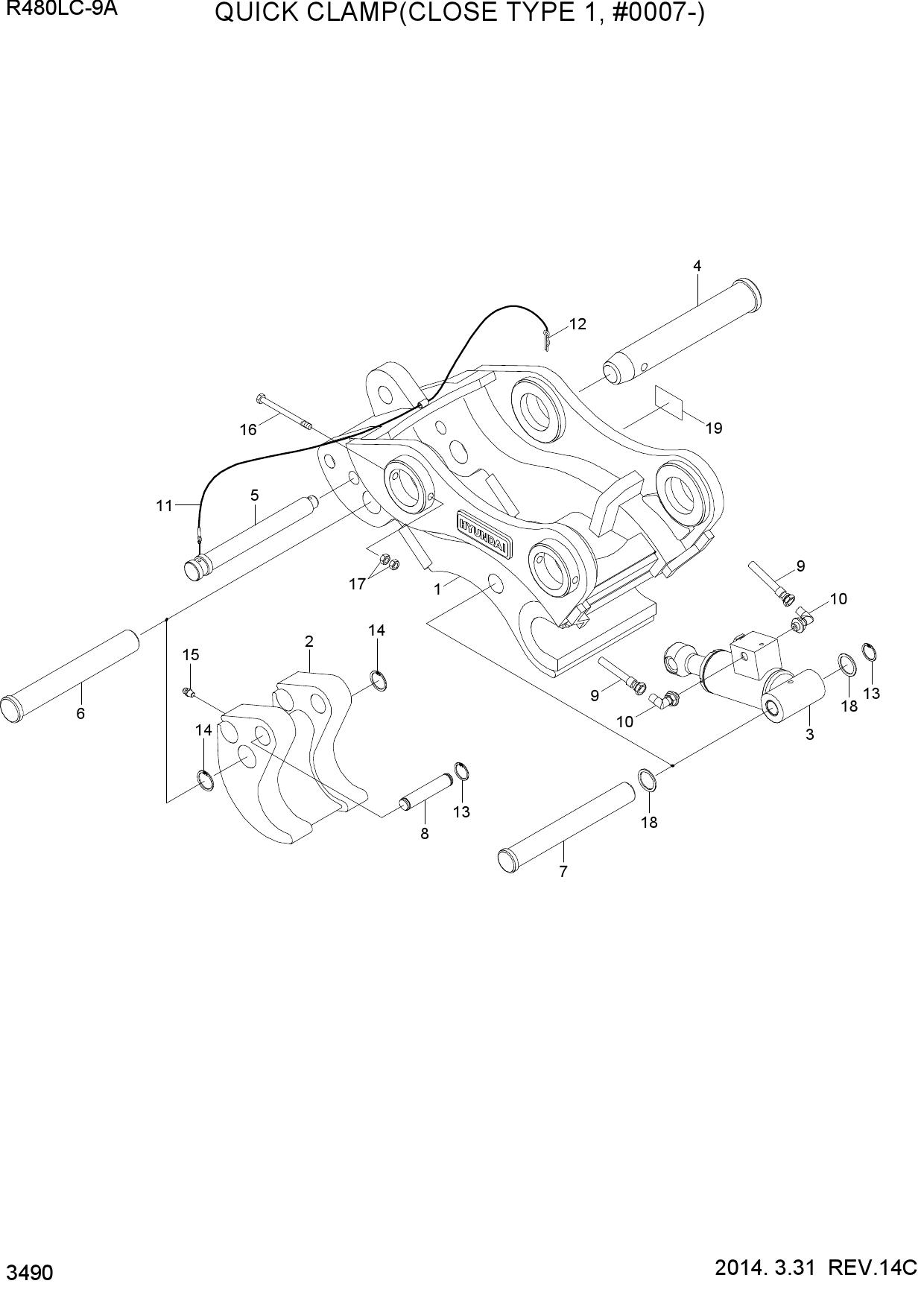

Запчасти для гусеничных экскаваторов Hyundai R480LC-9A QUICK CLAMP(CLOSE TYPE 1, #0007-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 32QB-95240 | QUICK COUPLER ASSY | |
| 1 | XKBN-01807 | BODY | |
| 2 | XKBN-00413 | HITCH | |
| 3 | XKBN-00412 | CYLINDER ASSY | |
| 4 | XKBN-01808 | PIN-BRACKET | |
| 5 | XKBN-00229 | PIN-SAFETY | |
| 6 | XKBN-00230 | PIN-HITCH | |
| 7 | XKBN-00231 | PIN-FRAME | |
| 8 | XKBN-00416 | PIN-CYLINDER | |
| 9 | XKBN-00112 | HOSE-PROTECTOR | |
| 10 | XKBN-00016 | ELBOW-90 | |
| 11 | XKBN-00235 | WIRE ASSY | |
| 12 | XKBN-00246 | PIN-SNAP | |
| 13 | XKBN-00167 | RING-SNAP | |
| 14 | XKBN-00218 | RING-SNAP | |
| 15 | XKBN-00009 | NIPPLE-GREASE | |
| 16 | XKBN-00265 | BOLT-HEX | |
| 17 | XKBN-00665 | NUT-HEX | |
| 18 | XKBN-00406 | SPACER | |
| 19 | XKBN-01809 | ID PLATE |
