- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYDRAULIC PIPING(TRAVEL)
- PILOT HYDRAULIC PIPING(CONTROL 1)
- PILOT HYDRAULIC PIPING(CONTROL 2)
- PILOT HYDRAULIC PIPING(CONTROL 3)
- PILOT HYD PIPING(CNTL, 2-PATTERN)
- PILOT HYDRAULIC PIPING(BASE 1)
- PILOT HYDRAULIC PIPING(BASE 2)
- PILOT HYDRAULIC PIPING(BASE 3)
- TRAVEL HYDRAULIC PIPING
- TRAVEL HYD PIPING (T/MOTOR TYPE 3)
- BOOM HYD PIPING(7.06M, STD)
- BOOM HYD PIPING(6.55M, S/SHORT)
- BOOM HYD PIPING(9.0M, S/LONG)
- BOOM HYD PIPING(10.0M)
- BOOM GREASE LUB SYS(7.06M, STD)
- BOOM GREASE LUB SYS(6.55M, S/SHORT)
- BOOM GREASE LUB SYS(9.0M, S/LONG)
- BOOM GREASE LUB SYS(10.0M)
- BOOM SAFETY LOCK SYSTEM(-#0001)
- BOOM SAFETY LOCK SYSTEM(#0001-)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE, -#0006)
- QUICK CLAMP(CLOSE TYPE, -#0006)
- QUICK CLAMP(HOOK TYPE 1, #0007-)
- QUICK CLAMP(CLOSE TYPE 1, #0007-)
- QUICK CLAMP(HOOK TYPE 2, #0036-)
- QUICK CLAMP(CLOSE TYPE 2, #0036-)
- ARM HYD PIPING(3.38M, STD)
- ARM HYD PIPING(2.4M)
- ARM HYD PIPING(2.9M)
- ARM HYD PIPING(4.0M)
- ARM HYD PIPING(5.85M)
- ARM SAFETY LOCK SYSTEM
- DOUBLE ACTING MAIN PIPING KIT(1/2)
- DOUBLE ACTING MAIN PIPING KIT(2/2)
- ATTACH PIPING KIT(S & D/ACTING)
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT
- SEMI AUTO GREASE LUB SYS

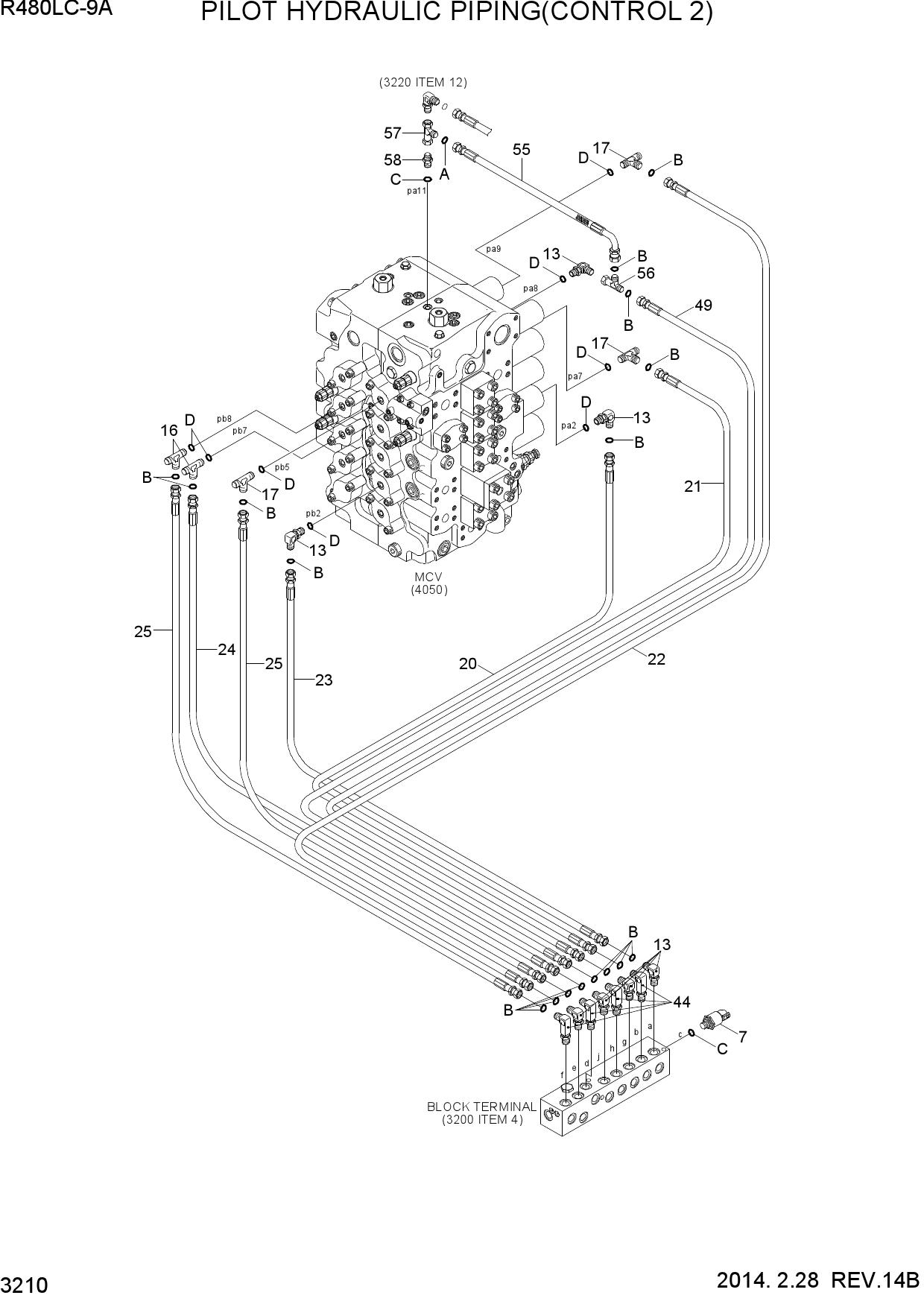

Запчасти для гусеничных экскаваторов Hyundai R480LC-9A PILOT HYDRAULIC PIPING(CONTROL 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 7 | 31Q4-40830 | SENSOR-PRESSURE | |
| 13 | X520-110002 | ELBOW-90,ORFS | |
| 16 | X820-065251 | TEE-R/TYPE,ORFS | |
| 17 | X820-065252 | TEE-R/TYPE,ORFS | |
| 20 | X400-062040 | HOSE ASSY-SYNFLEX,ORFS | |
| 21 | X400-062047 | HOSE ASSY-SYNF,ORFS | |
| 22 | X400-062054 | HOSE ASSY-SYNF,ORFS | |
| 23 | X400-062052 | HOSE ASSY-SYNFLEX,ORFS | |
| 24 | X400-062060 | HOSE ASSY-SYNFLEX,ORFS | |
| 25 | X400-062061 | HOSE ASSY-SYNFLEX,ORFS | |
| 44 | 31N1-40130 | ELBOW 90-ORFS | |
| 49 | X400-062049 | HOSE ASSY-SYNF,ORFS | |
| 55 | P930-042014 | HOSE ASSY-ORFS 0X90 | |
| 56 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 57 | 31N6-30130 | TEE-SHUTTLE,S/NUT | |
| 58 | X500-110001 | CONNECTOR-ORFS | |
| B | S621-012001 | O-RING | |
| C | S631-011004 | O-RING | |
| D | S631-014004 | O-RING |
