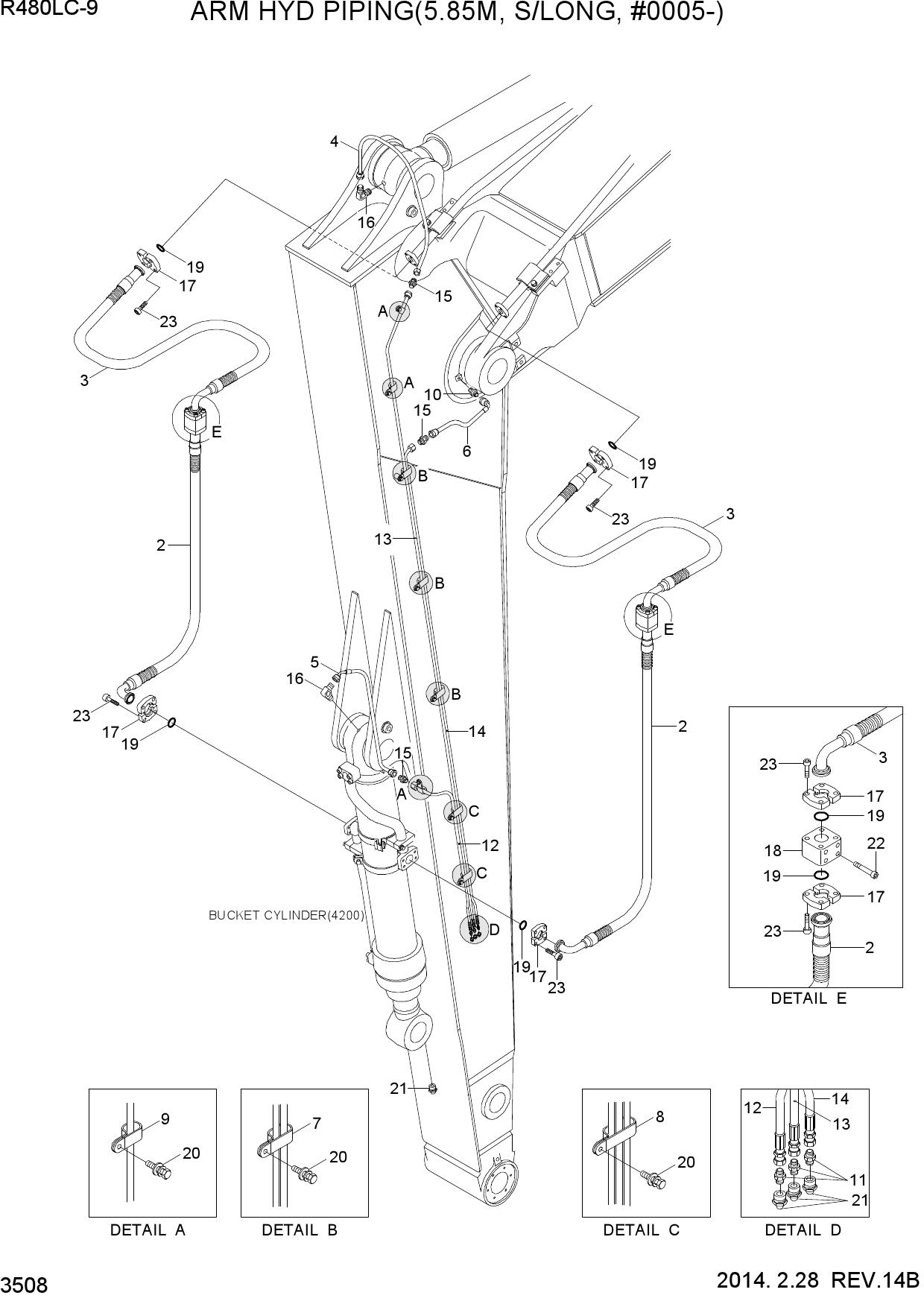

Запчасти для гусеничных экскаваторов Hyundai R480LC-9 ARM HYD PIPING(5.85M, S/LONG, #0005-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31QB-61260 | HOSE ASSY-FLG 0X90 | |
| 3 | 31QB-61250 | HOSE ASSY-FLG 0X90 | |
| 3 | 31QB-61310 | HOSE ASSY(HI-GRADE) | |
| 4 | P843-042013 | HOSE ASSY-SYN 0X0 | |
| 5 | P853-042013 | HOSE ASSY-SYN 0X45 | |
| 6 | P860-042012 | HOSE ASSY-SYN 0X90 | |
| 7 | 31Q8-60160 | CLAMP-TUBE | |
| 8 | 31Q8-60170 | CLAMP-TUBE | |
| 9 | 31Q8-60230 | CLAMP-TUBE | |
| 10 | P010-430011 | CONNECTOR | |
| 11 | 31Q8-60150 | CONNECTOR-TUBE | |
| 12 | 31QB-60610 | PIPE ASSY | |
| 13 | 31QB-60620 | PIPE ASSY | |
| 14 | 31QB-60630 | PIPE ASSY | |
| 15 | E131-0626 | CONNECTOR | |
| 16 | 31NB-50280 | ELBOW-90 | |
| 17 | P174-200106 | FLANGE-SPLIT | |
| 18 | 31NA-61060 | BLOCK | |
| 19 | Y171-027004 | O-RING | |
| 20 | S035-082026 | BOLT-W/WASHER | |
| 21 | S651-810002 | NIPPLE-GREASE | |
| 22 | S109-120906 | BOLT-SOCKET | |
| 23 | S109-120506 | BOLT-SOCKET |
