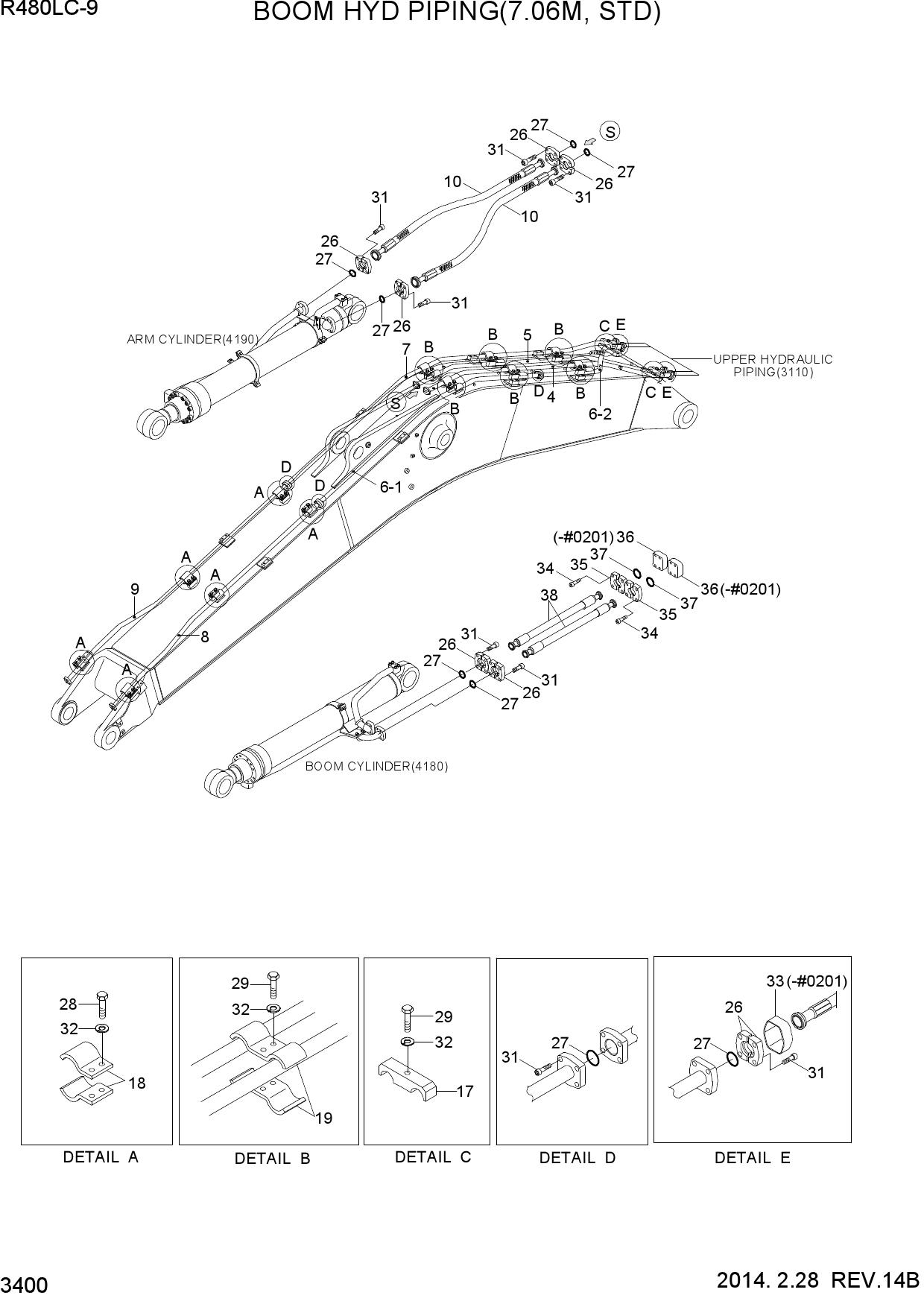

Запчасти для гусеничных экскаваторов Hyundai R480LC-9 BOOM HYD PIPING(7.06M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31QB-50141 | PIPE WA | |
| 5 | 31QB-50151 | PIPE WA | |
| 6 | 31QB-50161 | PIPE WA | |
| 7 | 31QB-50171 | PIPE WA | |
| 8 | 31QB-50181 | PIPE WA | |
| 9 | 31QB-50191 | PIPE WA | |
| 10 | P680-207427 | HOSE ASSY-FLG | |
| 10 | 31QB-50440 | HOSE ASSY(HI-GRADE) | |
| 17 | 31NB-51310 | CLAMP ASSY | |
| 18 | 31ND-51001 | CLAMP ASSY | |
| 19 | 31ND-51011 | CLAMP ASSY | |
| 26 | P174-200106 | FLANGE-SPLIT | |
| 27 | Y171-027004 | O-RING | |
| 28 | S017-16050D | BOLT-HEX | |
| 29 | S017-16080D | BOLT-HEX | |
| 31 | S109-120506 | BOLT-SOCKET | |
| 32 | S411-160006 | WASHER-SPRING | |
| 33 | P280-204000 | COVER-FLANGE | |
| 34 | S109-100356 | BOLT-SOCKET | |
| 35 | P174-160105 | FLANGE-HYD,SPLIT | |
| 36 | P184-162212 | FLANGE-PLUGING SQUARE | |
| 37 | Y171-024004 | O-RING | |
| 38 | 31NB-12432 | HOSE ASSY-FLG | |
| 38 | 31NB-12433 | HOSE ASSY-FLG | |
| 38 | 31QB-50810 | HOSE ASSY | |
| 38 | 31QB-50820 | HOSE ASSY(HI-GRADE) |
