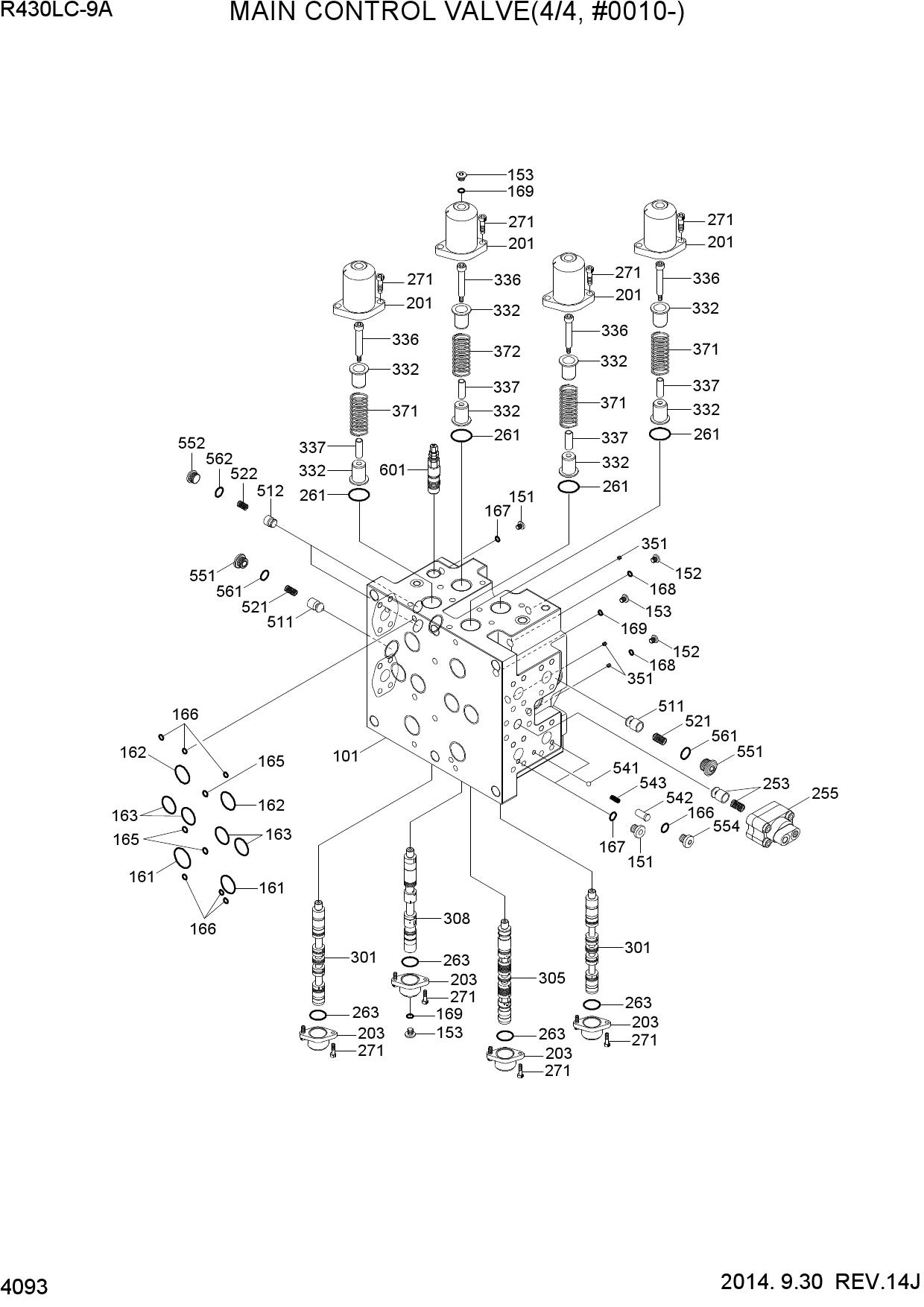

Запчасти для гусеничных экскаваторов Hyundai R430LC-9A MAIN CONTROL VALVE(4/4, #0010-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 101 | XJBN-01855 | CASING | |
| 151 | XJBN-01218 | PLUG | |
| 152 | XJBN-00749 | PLUG | |
| 153 | XJBN-00814 | PLUG | |
| 161 | XJBN-01282 | O-RING | |
| 162 | XJBN-01863 | O-RING | |
| 163 | XJBN-01221 | O-RING | |
| 165 | XJBN-01222 | O-RING | |
| 166 | XJBN-00231 | O-RING | |
| 167 | XJBN-00044 | O-RING | |
| 168 | XJBN-00045 | O-RING | |
| 169 | XJBN-00233 | O-RING | |
| 201 | XJBN-01283 | COVER-SPRING | |
| 203 | XJBN-01284 | COVER-SPRING | |
| 253 | XJBN-01868 | ASSY LOGIC VALVE | |
| 255 | XJBN-01869 | ASSY LOGIC COTROL VALVE | |
| 261 | XJBN-01293 | O-RING | |
| 263 | XJBN-00493 | O-RING | |
| 271 | XJBN-00700 | SCREW-HEX | |
| 301 | XJBN-01876 | TRAVEL SPOOL "7NT4" | |
| 305 | XJBN-01888 | SWING SPOOL "7NS4" | |
| 308 | XJBN-01895 | TRAVEL STRAIGHT SPOOL SUB | |
| 332 | XJBN-01877 | SPRING SEAT | |
| 336 | XJBN-01878 | SPACER BOLT | |
| 337 | XJBN-01879 | STOPPER | |
| 351 | XJBN-01903 | ORIFICE | |
| 371 | XJBN-01880 | SPRING | |
| 372 | XJBN-01314 | SPRING | |
| 511 | XJBN-01320 | POPPET | |
| 512 | XJBN-01904 | POPPET | |
| 521 | XJBN-01324 | SPRING | |
| 522 | XJBN-00169 | SPRING | |
| 541 | XJBN-01101 | BALL-STEEL | |
| 542 | XJBN-01255 | SEAT-SPRING | |
| 543 | XJBN-01256 | SPRING | |
| 551 | XJBN-01326 | PLUG | |
| 552 | XJBN-01258 | PLUG | |
| 554 | XJBN-01257 | PLUG | |
| 561 | XJBN-01330 | O-RING | |
| 562 | XJBN-00046 | O-RING | |
| 601 | XJBN-01908 | MAIN RELIEF VALVE |
