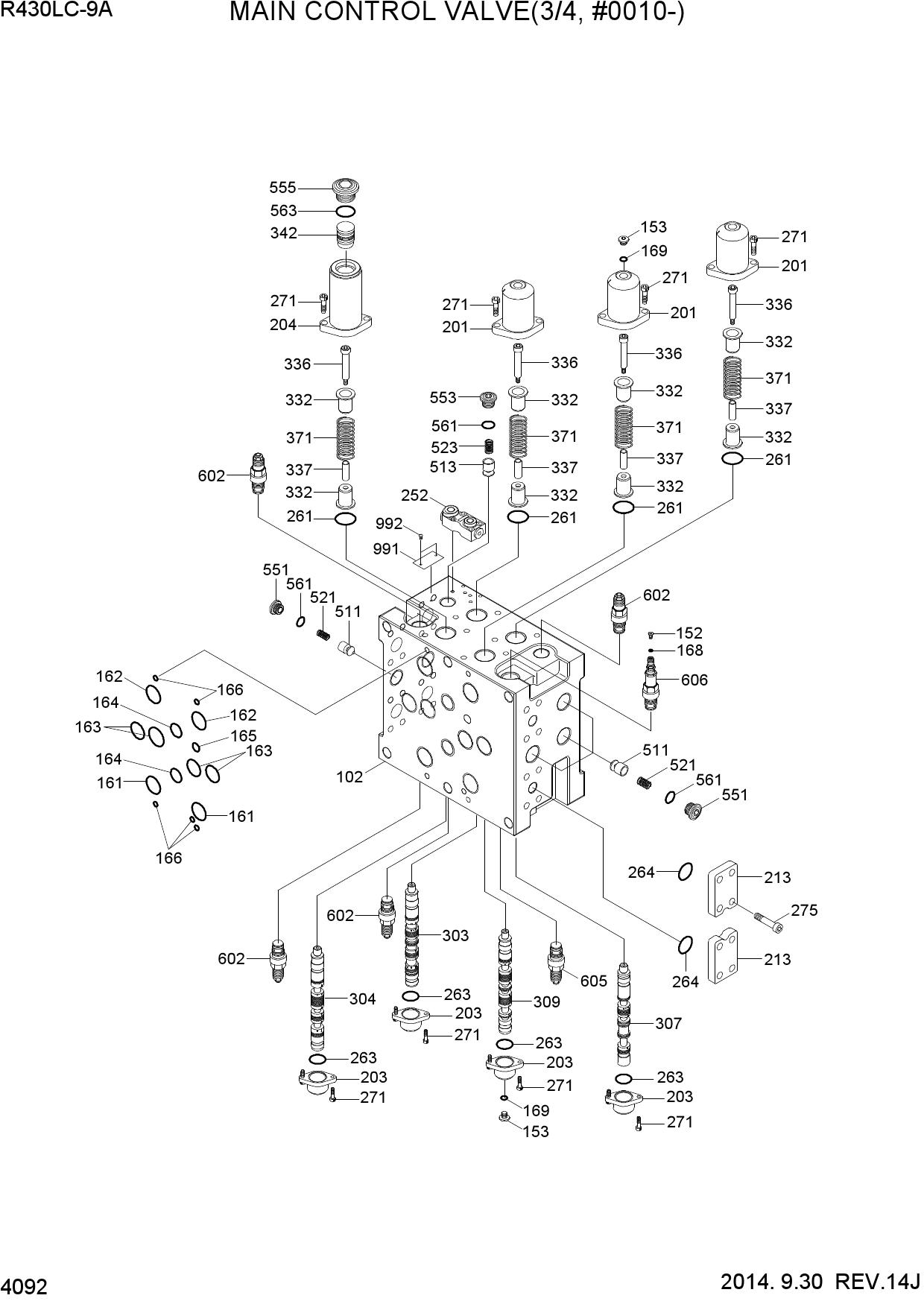

Запчасти для гусеничных экскаваторов Hyundai R430LC-9A MAIN CONTROL VALVE(3/4, #0010-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 102 | XJBN-01912 | CASING B | |
| 152 | XJBN-00749 | PLUG | |
| 153 | XJBN-00814 | PLUG | |
| 161 | XJBN-01282 | O-RING | |
| 162 | XJBN-01863 | O-RING | |
| 163 | XJBN-01221 | O-RING | |
| 164 | XJBN-00232 | O-RING | |
| 165 | XJBN-01222 | O-RING | |
| 166 | XJBN-00231 | O-RING | |
| 168 | XJBN-00045 | O-RING | |
| 169 | XJBN-00233 | O-RING | |
| 201 | XJBN-01283 | COVER-SPRING | |
| 203 | XJBN-01284 | COVER-SPRING | |
| 204 | XJBN-01864 | COVER SPRING | |
| 213 | XJBN-01337 | FLANGE | |
| 252 | XJBN-01867 | LOCK VALVE SELECT SUB. | |
| 261 | XJBN-01293 | O-RING | |
| 263 | XJBN-00493 | O-RING | |
| 264 | XJBN-00342 | O-RING | |
| 271 | XJBN-00700 | SCREW-HEX | |
| 275 | XJBN-01340 | SCREW | |
| 303 | XJBN-01884 | BOOM1 SPOOL SUB"7NB8" | |
| 304 | XJBN-01886 | BUCKET SPOOL "7NK10" | |
| 307 | XJBN-01893 | BOOM2 SPOOL "7NBG7" | |
| 309 | XJBN-01897 | OPTION SPOOL"7NY1" | |
| 332 | XJBN-01877 | SPRING SEAT | |
| 336 | XJBN-01878 | SPACER BOLT | |
| 337 | XJBN-01879 | STOPPER | |
| 342 | XJBN-01902 | PISTON | |
| 371 | XJBN-01880 | SPRING | |
| 511 | XJBN-01320 | POPPET | |
| 513 | XJBN-01321 | POPPET | |
| 521 | XJBN-01324 | SPRING | |
| 523 | XJBN-01325 | SPRING | |
| 551 | XJBN-01326 | PLUG | |
| 553 | XJBN-01327 | PLUG | |
| 555 | XJBN-00264 | PLUG | |
| 561 | XJBN-01330 | O-RING | |
| 563 | XJBN-00138 | O-RING | |
| 602 | XJBN-01332 | PORT RELIEF ASSY | |
| 605 | XJBN-01909 | PORT RELIEF VALVE | |
| 606 | XJBN-01910 | PORT RELIEF VALVE | |
| 991 | XJBN-00156 | NAME PLATE | |
| 992 | XJBN-00455 | PIN |
