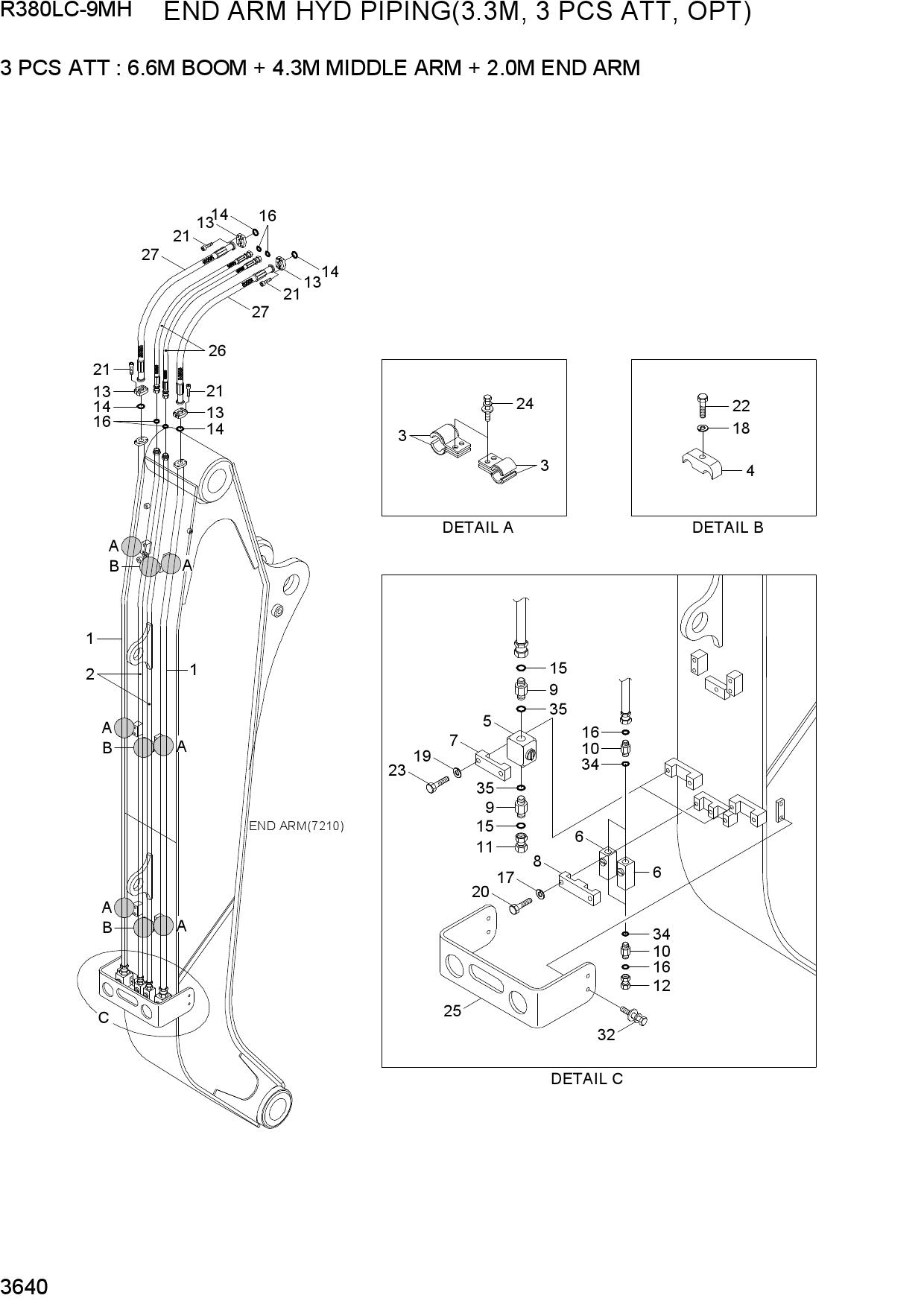

Запчасти для гусеничных экскаваторов Hyundai R380LC-9MH END ARM HYD PIPING(3.3M, 3 PCS ATT, OPT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 3BQA-61020 | PIPE ASSY | |
| 2 | 3BQA-61030 | PIPE ASSY | |
| 3 | 31Q4-50230 | CLAMP ASSY-PIPE | |
| 4 | 3BQA-51010 | CLAMP | |
| 5 | 31N4-97010 | VALVE-STOP | |
| 6 | 31M5-65383 | STOP VALVE ASSY | |
| 7 | 31EG-91350 | CLAMP-STOP VALVE | |
| 8 | 3BQA-60110 | CLAMP-STOP VALVE | |
| 9 | X511-112542 | CONNECTOR-LONG,ORFS | |
| 10 | X511-108532 | CONNECTOR-LONG,ORFS | |
| 11 | X710-100105 | CAP-ORFS | |
| 12 | X710-100104 | CAP-DUST | |
| 13 | P173-160104 | FLANGE-HYD,SPLIT | |
| 14 | Y171-024004 | O-RING | |
| 15 | S621-018001 | O-RING | |
| 16 | S621-014001 | O-RING | |
| 17 | S411-080006 | WASHER-SPRING | |
| 18 | S411-100006 | WASHER-SPRING | |
| 19 | S411-120006 | WASHER-SPRING | |
| 20 | S017-080556 | BOLT-HEX | |
| 21 | S109-100306 | BOLT-SOCKET | |
| 22 | S017-100506 | BOLT-HEX | |
| 23 | S017-120706 | BOLT-HEX | |
| 24 | S037-123526 | BOLT-W/WASHER | |
| 25 | 3BQA-61010 | BRACKET | |
| 26 | P910-087023 | HOSE ASSY-ORFS 0X0 | |
| 27 | P680-167422 | HOSE ASSY-FLG 0X0 | |
| 32 | S037-082526 | BOLT-W/WASHER | |
| 34 | S631-018004 | O-RING | |
| 35 | S631-024004 | O-RING |
