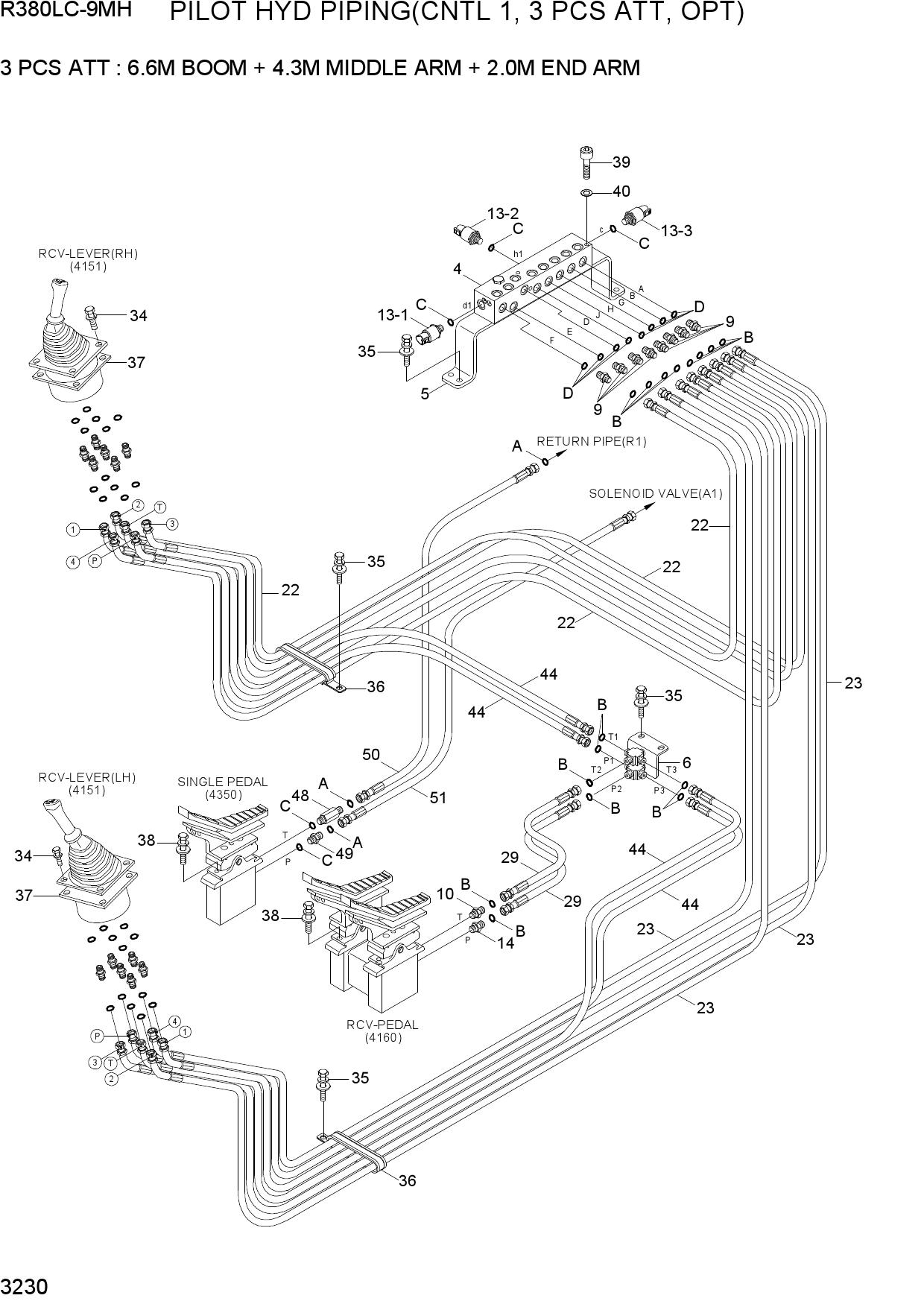

Запчасти для гусеничных экскаваторов Hyundai R380LC-9MH PILOT HYD PIPING(CNTL 1, 3 PCS ATT, OPT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q9-20170 | BLOCK-TERMINAL | |
| 5 | 31Q8-20121 | BRACKET | |
| 6 | 31Q8-20100 | CROSS ASSY | |
| 9 | X500-110002 | CONNECTOR-ORFS | |
| 10 | X500-110011 | CONNECTOR-ORFS | |
| 13-1 | 31Q4-40830 | SENSOR-PRESSURE | |
| 13-2 | 31Q4-40830 | SENSOR-PRESSURE | |
| 13-3 | 31Q4-40830 | SENSOR-PRESSURE | |
| 14 | 31N6-25070 | FILTER-LAST GUARD | |
| 22 | X410-062118 | HOSE ASSY-ORFS 0X45 | |
| 23 | X410-062125 | HOSE ASSY-ORFS 0X45 | |
| 29 | X400-062018 | HOSE ASSY-SYNF,ORFS | |
| 34 | S035-063046 | BOLT-W/WASHER | |
| 35 | S037-102526 | BOLT-W/WASHER | |
| 36 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 37 | 31M6-51061 | SHIM(3.2T) | |
| 38 | S037-103026 | BOLT-W/WASHER | |
| 39 | S109-080756 | BOLT-SOCKET | |
| 40 | S403-08100B | WASHER-PLAIN | |
| 44 | P920-062023 | HOSE ASSY-ORFS 0X45 | |
| 48 | X511-104514 | CONNECTOR-LONG,ORFS | |
| 49 | 31N6-25060 | FILTER-LAST GUARD | |
| 50 | X400-042100 | HOSE ASSY-SYNF,ORFS | |
| 51 | X400-042083 | HOSE ASSY-SYNF,ORFS | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S631-011004 | O-RING | |
| D | S631-014004 | O-RING |
