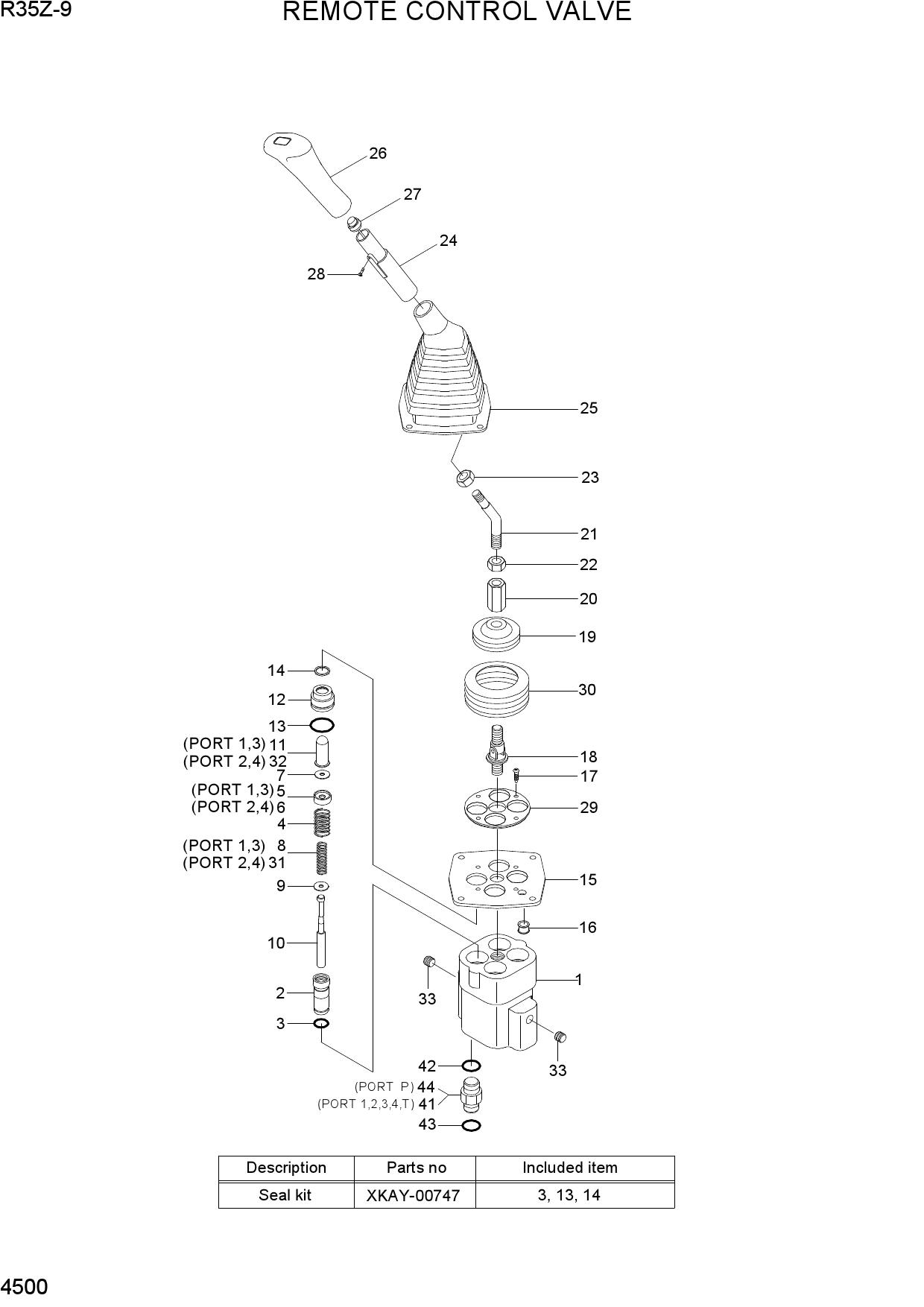

Запчасти для гусеничных экскаваторов Hyundai R35Z-9 REMOTE CONTROL VALVE
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31MK-20010 | RCV SUB ASSY-LH | |
| * | 31MK-20020 | RCV SUB ASSY-RH | |
| *-1 | 31MK-21010 | RCV LEVER-LH | |
| *-1 | 31MK-21020 | RCV LEVER-RH | |
| 1 | XKAY-00726 | BODY | |
| 2 | XKAY-00727 | PLUG | |
| K3 | XKAY-00728 | O-RING | |
| 4 | XKAY-01588 | SPRING | |
| *-2 | XKAY-00730 | SPOOL KIT(1,3) | |
| *-2 | XKAY-01589 | SPOOL KIT(2.4) | |
| N5 | XKAY-00731 | SPRING SEAT(1,3) | |
| N6 | XKAY-00950 | SPRING SEAT(2,4) | |
| N7 | XKAY-00732 | STOPPER | |
| N8 | XKAY-00733 | SPRING(1,3) | |
| N9 | XKAY-00081 | SEAT-SPRING | |
| 10 | XKAY-00734 | SPOOL | |
| N31 | XKAY-00746 | SPRING(2,4) | |
| *-3 | XKAY-01590 | PLUG KIT | |
| *-3 | XKAY-01591 | PLUG KIT | |
| N11 | XKAY-00954 | PUSH ROD(1,3) | |
| N12 | XKAY-01592 | PLUG | |
| K13 | XKAY-00438 | O-RING | |
| K14 | XKAY-01424 | SEAL-ROD | |
| N32 | XKAY-00955 | PUSH ROD(2,4) | |
| 15 | XKAY-00740 | PLATE(A) | |
| 16 | XKAY-00741 | BUSHING | |
| 17 | XKAY-00742 | SCREW-MACHINE | |
| 18 | XKAY-00049 | JOINT ASSY | |
| 19 | XKAY-00985 | PLATE-SWASH | |
| 20 | XKAY-00047 | NUT-HEX | |
| *-4 | XKAY-00743 | HANDLE KIT(RH) | |
| *-4 | XKAY-00744 | HANDLE KIT(LH) | |
| N21 | XKAY-01593 | CONNECTOR | |
| N22 | XKAY-00046 | NUT | |
| N23 | XKAY-00043 | NUT | |
| N24 | XKAY-00327 | INSERT | |
| N25 | XKAY-00041 | BOOT | |
| N26 | XKAY-00328 | HANDLE-LH | |
| N26 | XKAY-00330 | HANDLE-RH | |
| N27 | XKAY-00329 | SWITCH ASSY | |
| N28 | XKAY-00038 | SCREW | |
| N29 | XKAY-00745 | PLATE(B) | |
| N30 | XKAY-00072 | BOOT | |
| N33 | XKAY-00032 | PLUG | |
| 41 | XKAY-00817 | CONNECTOR | |
| 42 | XKAY-00818 | O-RING | |
| 43 | XKAY-00800 | O-RING | |
| 44 | XKAY-00819 | FILTER-LAST GUARD | |
| K | XKAY-00747 | SEAL KIT |
