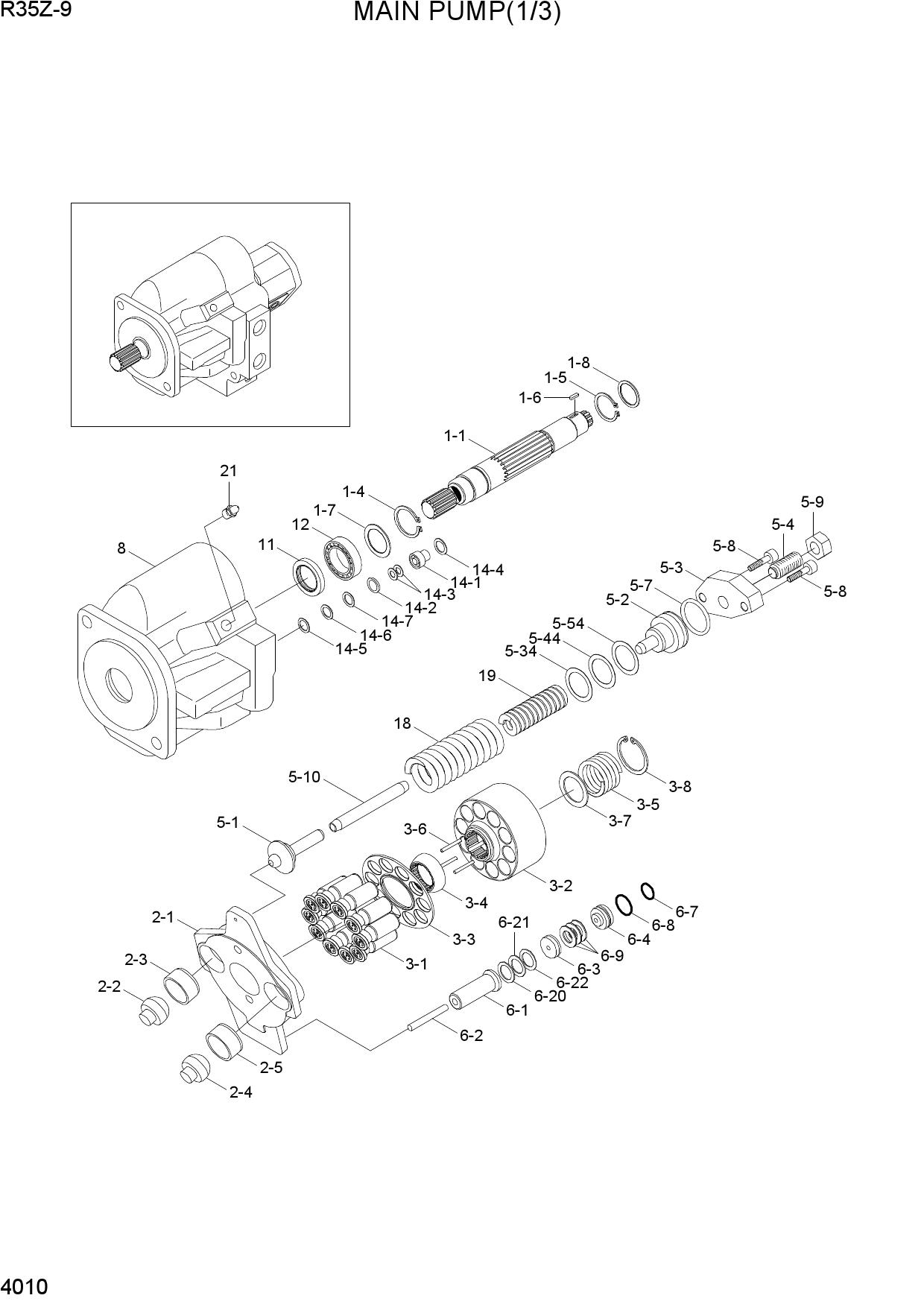

Запчасти для гусеничных экскаваторов Hyundai R35Z-9 MAIN PUMP(1/3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31MH-10010 | MAIN PUMP | |
| * | 31MH-10020 | MAIN PUMP | |
| 1 | XJDD-00686 | SHAFT ASSY | |
| 1-1 | XJDD-00701 | SHAFT | |
| 1-4 | XJDD-00702 | RING | |
| 1-5 | XJDD-00703 | RING-RETAINING | |
| 1-6 | XJDD-00704 | KEY | |
| 1-7 | XJDD-00705 | SHIM | |
| 1-8 | XJDD-00706 | SHIM | |
| 2 | XJDD-00687 | SWASH PLATE ASSY | |
| 2-1 | XJDD-00707 | SWASH PLATE | |
| 2-2 | XJDD-00708 | GUIDE-SUCTION SIDE | |
| 2-3 | XJDD-00709 | BUSHING-SUCTION SIDE | |
| 2-4 | XJDD-00710 | GUIDE-DELIVERY SIDE | |
| 2-5 | XJDD-00711 | BUSHING-DELIVERY SIDE | |
| 3 | XJDD-00688 | ROTARY GROUP | |
| 3-1 | XJDD-00712 | PISTON ASSY | |
| 3-2 | XJDD-00713 | CYLINDER BLOCK | |
| 3-3 | XJDD-00714 | RETAINER | |
| 3-4 | XJDD-00715 | GUIDE | |
| 3-5 | XJDD-00716 | SPRING | |
| 3-6 | XJDD-00717 | PRESSURE PIN | |
| 3-7 | XJDD-00718 | SPRING SEAT | |
| 3-8 | XJDD-00719 | RING-RETAINING | |
| 5 | XJDD-00690 | SPRING SEAT ASSY | |
| 5-1 | XJDD-00728 | SPRING SEAT | |
| 5-2 | XJDD-00729 | SPRING SEAT | |
| 5-3 | XJDD-00730 | COVER | |
| 5-4 | XJDD-00731 | SCREW-ADJUSTING | |
| 5-7 | XJDD-00732 | O-RING | |
| 5-8 | XJDD-00733 | SCREW-HEX S/HD CAP | |
| 5-9 | XJDD-00734 | NUT-HEX | |
| 5-10 | XJDD-00735 | GUIDE | |
| 5-34 | XJDD-00736 | SHIM | |
| 5-44 | XJDD-00737 | SHIM | |
| 5-54 | XJDD-00738 | SHIM | |
| 6 | XJDD-00691 | CONTROL PISTION ASSY | |
| 6-1 | XJDD-00739 | SLEEVE | |
| 6-2 | XJDD-00740 | PIN-PARALLEL | |
| 6-3 | XJDD-00741 | PIECE-DISTANCE | |
| 6-4 | XJDD-00742 | PISTON | |
| 6-7 | XJDD-00743 | O-RING | |
| 6-8 | XJDD-00744 | O-RING | |
| 6-9 | XJDD-00745 | SPRING-CONED DISC | |
| 6-20 | XJDD-00746 | SHIM | |
| 6-21 | XJDD-00747 | SHIM | |
| 6-22 | XJDD-00748 | SHIM | |
| 8 | XJDD-00693 | HOUSING ASSY | |
| 8 | XJDD-01215 | HOUSING ASSY | |
| 11 | XJDD-00695 | SEAL-OIL | |
| 12 | XJDD-00696 | BEARING | |
| 14 | XJDD-00697 | STOPPER ASSY | |
| 14-1 | XJDD-00773 | GUIDE | |
| 14-2 | XJDD-00774 | PIECE-DISTANCE | |
| 14-3 | XJDD-00745 | SPRING-CONED DISC | |
| 14-4 | XJDD-00775 | RING-RETAINING | |
| 14-5 | XJDD-00776 | SHIM | |
| 14-6 | XJDD-00777 | SHIM | |
| 14-7 | XJDD-00778 | SHIM | |
| 18 | XJDD-00699 | SPRING | |
| 18 | XJDD-01216 | SRPING | |
| 19 | XJDD-00700 | SPRING | |
| 19 | XJDD-01217 | SPRING | |
| 21 | XJDD-00010 | VALVE-AIR VENT |
