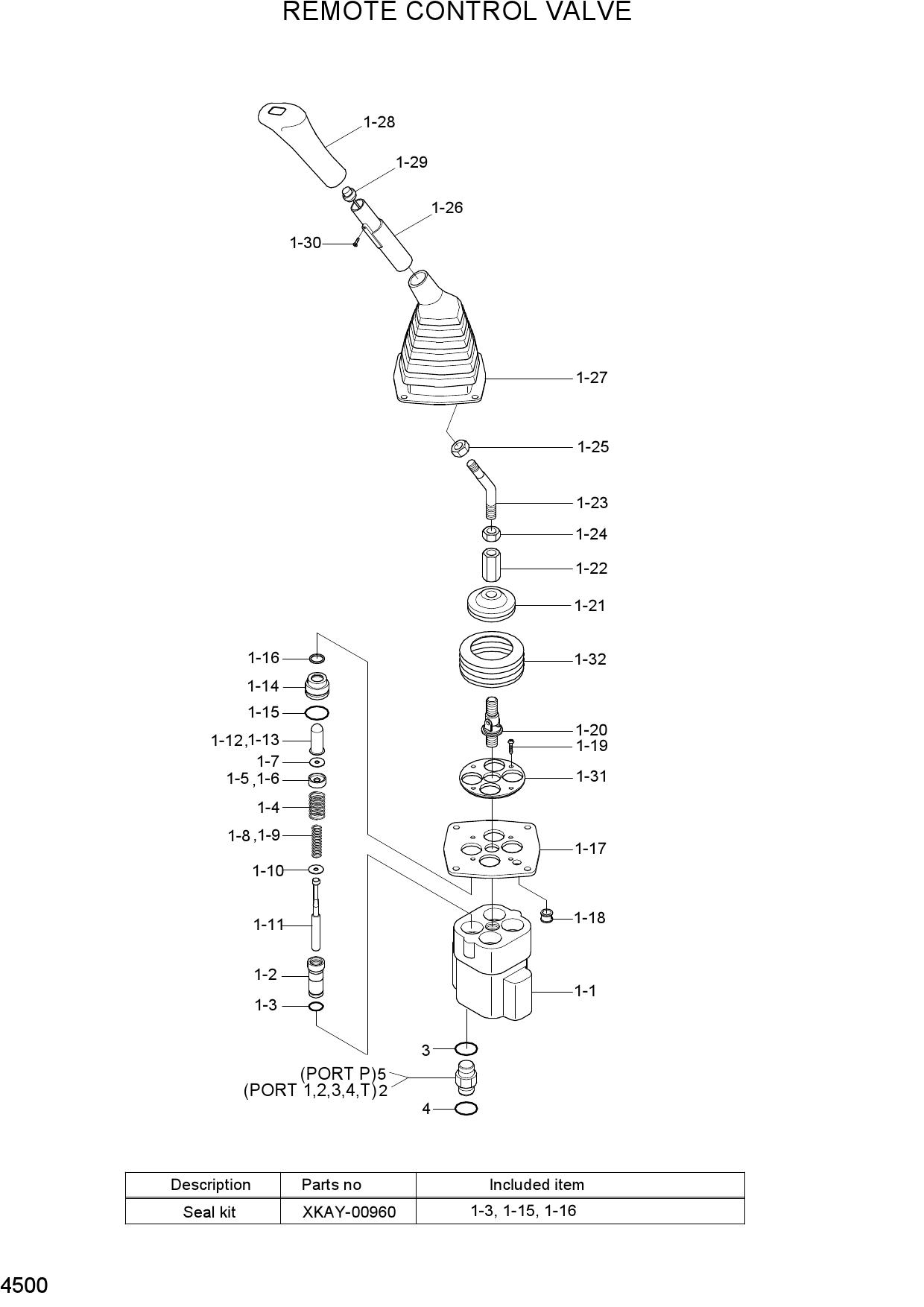

Запчасти для гусеничных экскаваторов Hyundai R35Z-7 REMOTE CONTROL VALVE
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31MH-20210 | RCV LEVER SUB ASSY | |
| * | 31MH-20220 | RCV LEVER SUB ASSY | |
| 1 | 31MH-20010 | RCV LEVER | |
| 1 | 31MH-20020 | RCV LEVER | |
| 1-1 | XKAY-00726 | BODY | |
| 1-2 | XKAY-00727 | PLUG | |
| K1-3 | XKAY-00728 | O-RING | |
| 1-4 | XKAY-00729 | SPRING | |
| *-1 | XKAY-00948 | SPOOL KIT(1,3) | |
| *-2 | XKAY-00949 | SPOOL KIT(2,4) | |
| N1-5 | XKAY-00731 | SPRING SEAT(1,3) | |
| 1-6 | XKAY-00950 | SPRING SEAT(2,4) | |
| N1-7 | XKAY-00732 | STOPPER | |
| N1-8 | XKAY-00733 | SPRING(1,3) | |
| 1-9 | XKAY-00746 | SPRING(2,4) | |
| 1-10 | XKAY-00081 | SEAT-SPRING | |
| 1-11 | XKAY-00734 | SPOOL | |
| *-3 | XKAY-00952 | PLUT KIT(1,3) | |
| *-4 | XKAY-00953 | PLUG KIT(2,4) | |
| N1-12 | XKAY-00954 | PUSH ROD(1,3) | |
| 1-13 | XKAY-00955 | PUSH ROD(2,4) | |
| 1-14 | XKAY-00737 | PLUG | |
| K1-15 | XKAY-00438 | O-RING | |
| K1-16 | XKAY-00611 | SEAL-ROD | |
| 1-17 | XKAY-00740 | PLATE(A) | |
| 1-18 | XKAY-00741 | BUSHING | |
| 1-19 | XKAY-00742 | SCREW-MACHINE | |
| 1-20 | XKAY-00049 | JOINT ASSY | |
| 1-21 | XKAY-00612 | SWASH PLATE | |
| 1-22 | XKAY-00047 | NUT-HEX | |
| *-5 | XKAY-00957 | HANDLE KIT(RH) | |
| *-6 | XKAY-00958 | HANDLE KIT(LH) | |
| 1-23 | XKAY-00327 | INSERT | |
| 1-24 | XKAY-00046 | NUT | |
| 1-25 | XKAY-00043 | NUT | |
| 1-26 | XKAY-00327 | INSERT | |
| 1-27 | XKAY-00041 | BOOT | |
| 1-28 | XKAY-00328 | HANDLE-LH | |
| 1-28 | XKAY-00330 | HANDLE-RH | |
| 1-29 | XKAY-00329 | SWITCH ASSY | |
| 1-30 | XKAY-00038 | SCREW | |
| 1-31 | XKAY-00745 | PLATE(B) | |
| 1-32 | XKAY-00959 | BOOT | |
| 2 | X500-110001 | CONNECTOR-ORFS | |
| 3 | S631-011004 | O-RING | |
| 4 | S621-011001 | O-RING | |
| 5 | 31N6-25060 | FILTER-LAST GUARD | |
| K | XKAY-00960 | SEAL KIT |
