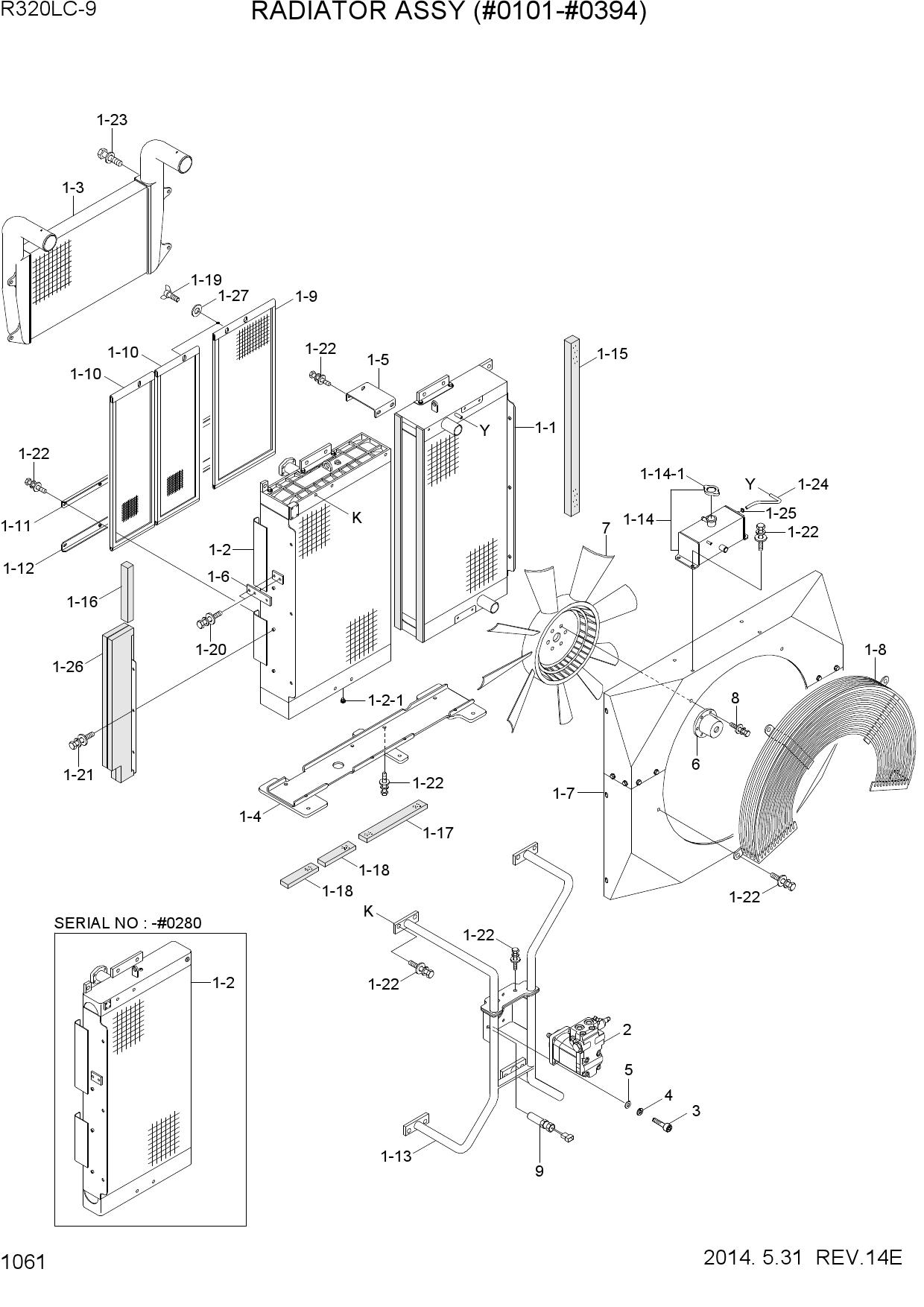

Запчасти для гусеничных экскаваторов Hyundai R320LC-9 RADIATOR ASSY (#0101-#0394)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 11Q9-41500 | RADIATOR SUB ASSY | |
| * | 11Q9-41501 | RADIATOR SUB ASSY | |
| * | 11Q9-41502 | RADIATOR SUB ASSY | |
| * | 11Q9-41503 | RADIATOR SUB ASSY | |
| 1 | 11Q9-40507 | RADIATOR TOTAL ASSY | |
| 1 | 11Q9-40508 | RADIATOR TOTAL ASSY | |
| 1 | 11Q9-40509 | RADIATOR TOTAL ASSY | |
| 1 | 11Q9-40900 | RADIATOR TOTAL ASSY | |
| 1-1 | 11Q9-40524 | RADIATOR ASSY | |
| 1-1 | 11Q9-40525 | RADIATOR ASSY | |
| 1-1 | 11Q9-40526 | RADIATOR ASSY | |
| 1-2 | 11Q9-40537 | OIL COOLER ASSY | |
| 1-2 | 11Q9-40538 | OIL COOLER ASSY | |
| 1-3 | 11Q9-40550 | AIR COOLER-CHARGE | |
| 1-3 | 11Q9-40551 | AIR COOLER-CHARGE | |
| 1-4 | 11Q9-40615 | PLATE-BASE | |
| 1-4 | 11Q9-40616 | PLATE-BASE | |
| 1-5 | 11Q9-40662 | SUPPORT-UPPER | |
| 1-6 | 11Q6-40760 | BRACKET-STAY,RH | |
| 1-7 | 11Q9-40548 | SHROUD | |
| 1-8 | 11Q9-40584 | GUARD-FAN | |
| 1-9 | 11Q9-40641 | WIRE NET-RAD | |
| 1-10 | 11Q9-40652 | WIRE NET-O/C | |
| 1-11 | 11Q9-40790 | BRACKET-COND(A) | |
| 1-12 | 11Q9-40800 | BRACKET-COND(B) | |
| 1-13 | 11Q8-42371 | MOTOR MOUNT ASSY | |
| 1-13 | 11QA-40820 | MOTOR MOUNT ASSY | |
| 1-14 | 11QA-42091 | TANK-SURGE | |
| 1-14-1 | 11N8-47150 | CAP-PRESSURE | |
| 1-15 | 11Q9-40690 | SPONGE-A | |
| 1-15 | 11Q9-40691 | SPONGE-A | |
| 1-16 | 11Q9-40780 | SPONGE-B | |
| 1-16 | 11Q9-40781 | SPONGE-B | |
| 1-17 | 11Q9-40720 | SPONGE-C | |
| 1-17 | 11Q9-40721 | SPONGE-C | |
| 1-18 | 11Q9-40731 | SPONGE-D | |
| 1-18 | 11Q9-40732 | SPONGE-D | |
| 1-19 | S091-060106 | BOLT-WING | |
| 1-20 | S035-082026 | BOLT-W/WASHER | |
| 1-21 | S035-081526 | BOLT-W/WASHER | |
| 1-22 | S037-102526 | BOLT-W/WASHER | |
| 1-23 | S037-103536 | BOLT W/WASHER | |
| 1-24 | 11Q9-40740 | HOSE-VENT | |
| 1-25 | 11Q9-40810 | CLIP-HOSE | |
| 1-26 | 11Q9-40770 | SCREEN ASSY | |
| 1-26 | 11Q9-40771 | SCREEN ASSY | |
| 1-27 | S403-06200B | WASHER-PLAIN | |
| 3 | S109-080356 | BOLT-SOCKET | |
| 3 | S109-080406 | BOLT-SOCKET | |
| 4 | S411-080006 | WASHER-SPRING | |
| 5 | S403-08100B | WASHER-PLAIN | |
| 6 | 11Q9-60020 | CONNECTOR | |
| 7 | 11QA-00040 | FAN-COOLING | |
| 8 | S037-102526 | BOLT-W/WASHER | |
| 9 | 21LM-08210 | SENSOR-SPEED |
