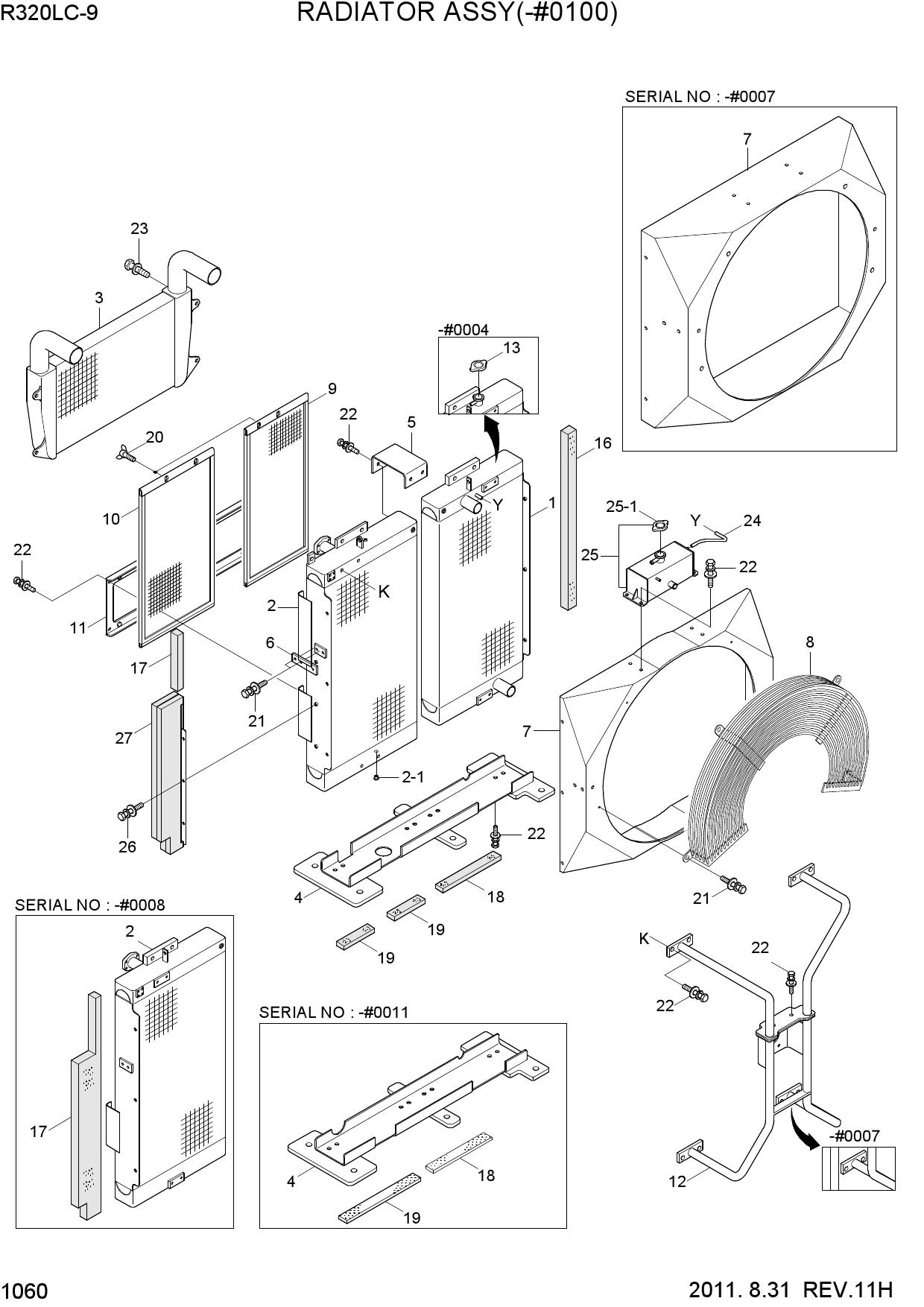

Запчасти для гусеничных экскаваторов Hyundai R320LC-9 RADIATOR ASSY(-#0100)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 11Q9-40502 | RADIATOR TOTAL ASSY | |
| * | 11Q9-40503 | RADIATOR TOTAL ASSY | |
| * | 11Q9-40504 | RADIATOR TOTAL ASSY | |
| * | 11Q9-40505 | RADIATOR TOTAL ASSY | |
| * | 11Q9-40506 | RADIATOR TOTAL ASSY | |
| 1 | 11Q9-40522 | RADIATOR ASSY | |
| 1 | 11Q9-40523 | RADIATOR ASSY | |
| 1 | 11Q9-40524 | RADIATOR ASSY | |
| 2 | 11Q9-40532 | OIL COOLER | |
| 2 | 11Q9-40533 | OIL COOLER | |
| 2 | 11Q9-40534 | OIL COOLER | |
| 2 | 11Q9-40535 | OIL COOLER | |
| 2 | 11Q9-40536 | OIL COOLER ASSY | |
| 2 | 11Q9-40537 | OIL COOLER ASSY | |
| 2 | P23F01 | PLUG | |
| 3 | 11Q9-40550 | AIR COOLER-CHARGE | |
| 4 | 11Q9-40611 | PLATE-BASE | |
| 4 | 11Q9-40613 | PLATE-BASE | |
| 4 | 11Q9-40614 | PLATE-BASE | |
| 4 | 11Q9-40615 | PLATE-BASE | |
| 5 | 11Q9-40661 | SUPPORT-UPPER | |
| 5 | 11Q9-40662 | SUPPORT-UPPER | |
| 6 | 11Q9-40590 | BRACKET-STAY | |
| 7 | 11Q9-40544 | SHROUD | |
| 7 | 11Q9-40545 | SHROUD | |
| 7 | 11Q9-40548 | SHROUD | |
| 8 | 11Q9-40582 | GUARD-FAN | |
| 8 | 11Q9-40583 | GUARD-FAN | |
| 8 | 11Q9-40584 | GUARD-FAN | |
| 9 | 11Q9-40641 | WIRE NET-RAD | |
| 10 | 11Q9-40651 | WIRE NET-O/C | |
| 11 | 11Q9-40601 | BRACKET-CONDENSER | |
| 12 | 11Q9-40631 | MOUNT ASSY-MOTOR | |
| 12 | 11Q9-40633 | MOUNT ASSY-MOTOR | |
| 13 | P06 | CAP ASSY | |
| 14 | 11EK-42210 | COCK-DARIN | |
| 15 | 11Q6-40790 | HOSE-DRAIN | |
| 16 | 11Q9-40690 | SPONGE-A | |
| 17 | 11Q9-40700 | SPONGE-B | |
| 17 | 11Q9-40780 | SPONGE-B | |
| 18 | P22-H50-007 | SPONGE-C | |
| 18 | 11Q9-40720 | SPONGE-C | |
| 19 | 11Q9-40730 | SPONGE-D | |
| 19 | 11Q9-40731 | SPONGE-D | |
| 20 | P1106 | BOLT-HEX | |
| 21 | P1108 | BOLT-HEX | |
| 22 | P1110-A | BOLT ASSY | |
| 22 | P1110-A | BOLT ASSY | |
| 23 | P1110-B | BOLT ASSY | |
| 24 | 11Q9-40740 | HOSE-VENT | |
| 25 | 11QA-42090 | TANK-SURGE | |
| 25-1 | P06 | CAP ASSY | |
| 26 | S035-081526 | BOLT-W/WASHER | |
| 27 | 11Q9-40770 | SCREEN ASSY |
