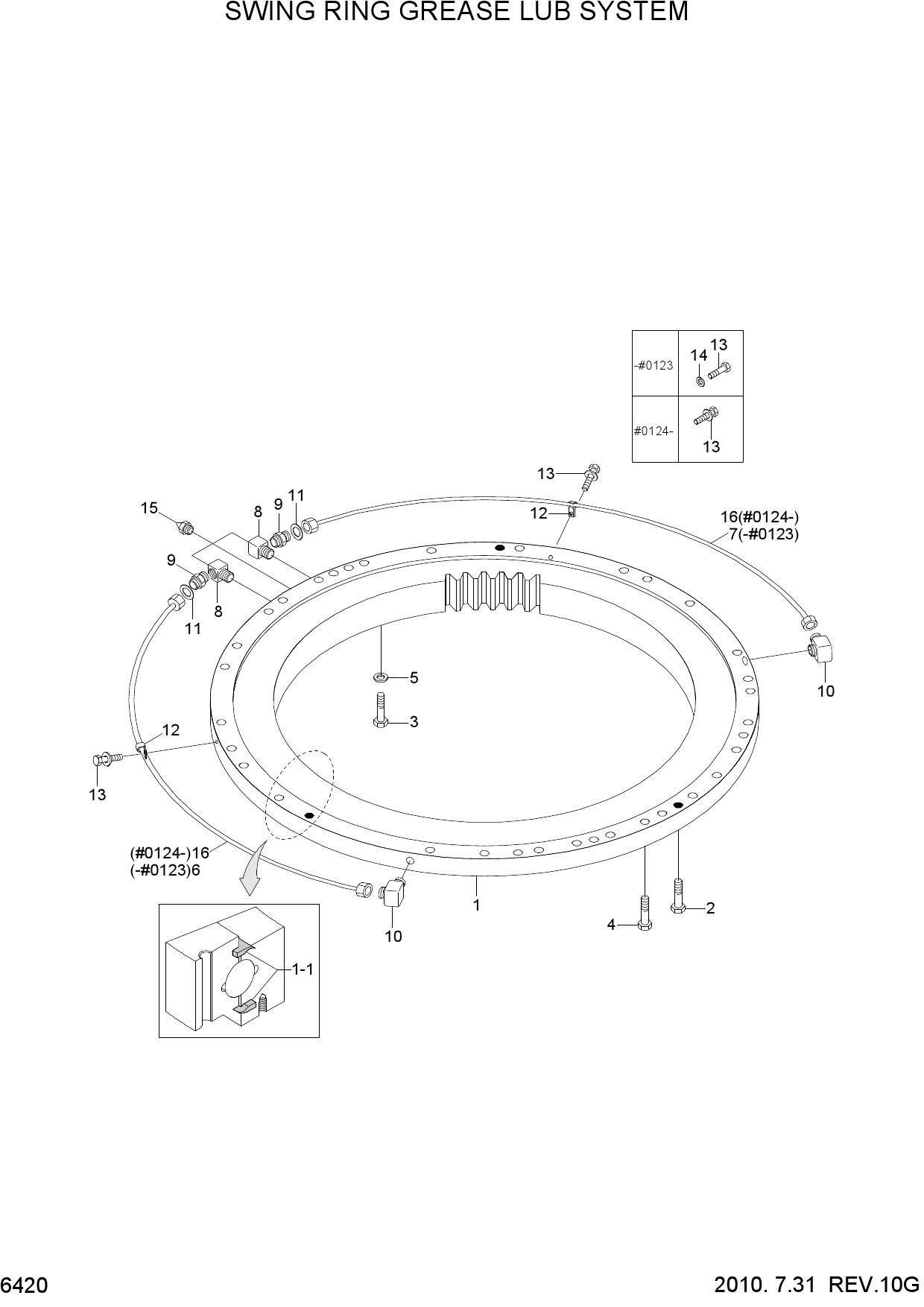

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 SWING RING GREASE LUB SYSTEM
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 81N8-00022 | SWING BEARING | |
| 1 | 81N8-00023 | SWING BEARING | |
| 1 | 81N8-00023BG | SWING BEARING | |
| 1-1 | 82E9-10040 | SEAL-SWING BEARING | |
| 2 | E180-5002 | BOLT-REAMER | |
| 2 | 81Q9-01030 | BOLT-REAMER | |
| 3 | S017-240752 | BOLT-HEX | |
| 4 | S017-241302 | BOLT-HEX | |
| 5 | S441-240002 | WASHER-HARDENED | |
| 6 | 81N8-00030 | PIPE-GREASE,LH | |
| 7 | 81N8-00040 | PIPE-GREASE,RH | |
| 8 | 31EH-00610 | FITTING | |
| 8 | 81N6-00110 | ELBOW-90 | |
| 9 | E131-0626 | CONNECTOR | |
| 9 | 81N6-00120 | CONNECTOR | |
| 10 | E231-0349 | ELBOW-90 | |
| 10 | 81N6-00130 | ELBOW-90 | |
| 11 | P391-040000 | WASHER-COPPER | |
| 12 | E241-2603 | CLAMP | |
| 12 | S543-120002 | CLAMP-TUBE | |
| 12 | S543-100002 | CLAMP-TUBE | |
| 13 | S017-100162 | BOLT-HEX | |
| 13 | S037-101556 | BOLT-W/WASHER | |
| 14 | S411-100002 | WASHER-SPRING | |
| 15 | S651-810002 | NIPPLE-GREASE | |
| 16 | 81N6-00250 | TUBE-NYLON |
