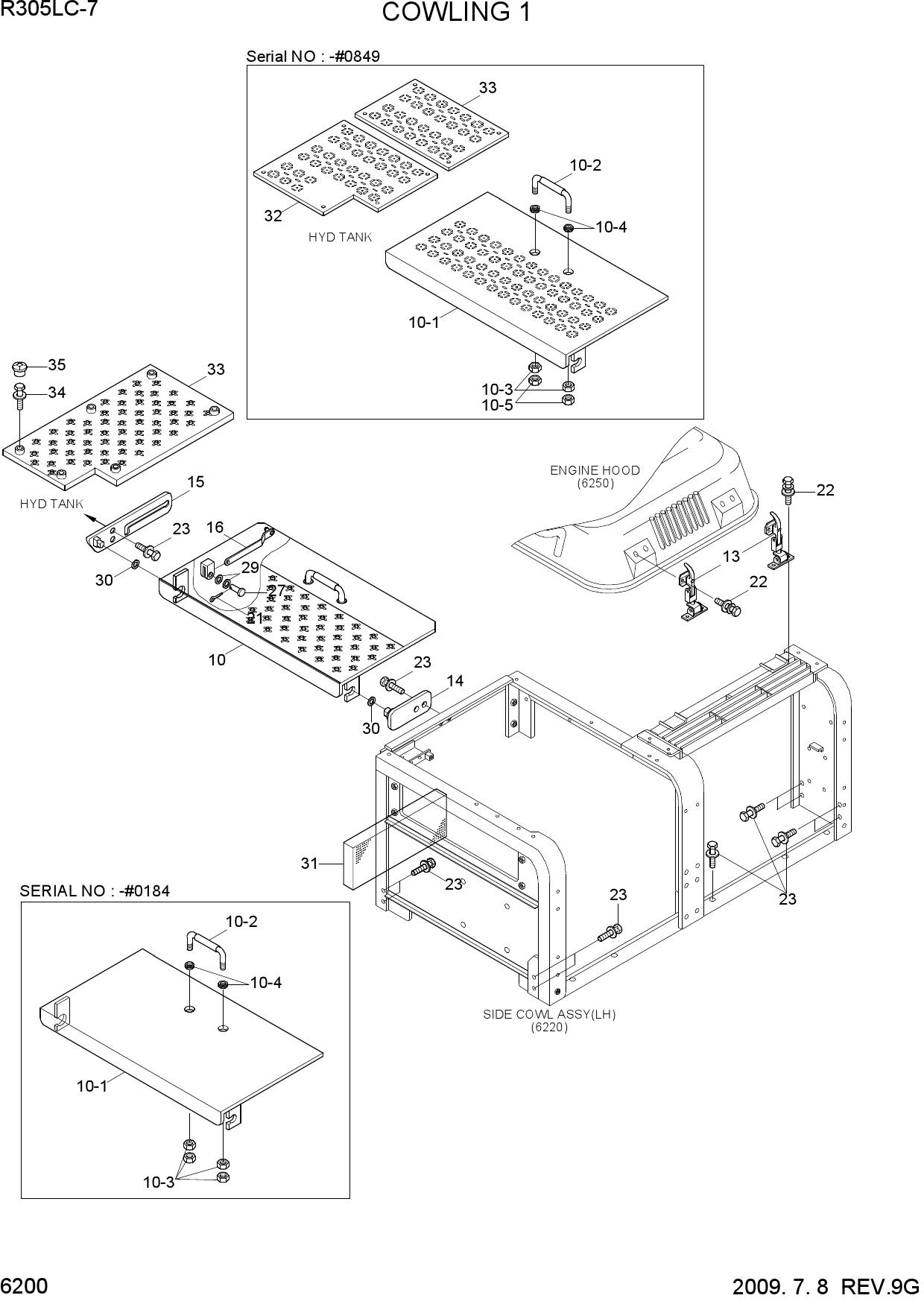

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 COWLING 1
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 10 | 71N8-59100 | HOOD ASSY-MCV | |
| 10 | 72N9-59200 | HOOD ASSY-MCV | |
| 10 | 74N8-59200 | HOOD ASSY-MCV | |
| 10-1 | 71N8-55202 | HOOD WA-MCV | |
| 10-1 | 72N9-59210 | HOOD WA-MCV | |
| 10-2 | 71E9-54150 | HANDLE | |
| 10-3 | S205-161002 | NUT-HEX | |
| 10-3 | S205-161002 | NUT-HEX | |
| 10-4 | S681-190400 | GROMMET | |
| 10-5 | S275-160002 | NUT-SELF LOCKING | |
| 13 | 71N6-56400 | CATCH ASSY | |
| 13 | 71N6-56400BG | CATCH ASSY | |
| 14 | 71N8-55210 | BRACKET-MCV HOOD,LH | |
| 15 | 71N6-55221 | BRACKET-MCV HOOD,RH | |
| 16 | 71N6-56301 | STAY-MCV HOOD | |
| 21 | S501-080002 | PIN-SELF LOCKING | |
| 22 | S035-082522 | BOLT-W/WASHER | |
| 23 | S037-122552 | BOLT-W/WASHER | |
| 27 | S491-080252 | PIN-CLEVIS | |
| 29 | S403-082002 | WASHER-PLAIN | |
| 30 | E231-0134 | SHIM(1.0T) | |
| 31 | 72N8-66300 | SPONGE-A/SCREEN | |
| 32 | 72N8-49200 | FOOT BOARD-F/TANK(A) | |
| 33 | 72N8-49300 | FOOT BOARD-F/TANK(B) | |
| 33 | 74N8-49300 | NONSLIP PLATE | |
| 34 | S037-121552 | BOLT-W/WASHER | |
| 34 | S037-121552 | BOLT-W/WASHER | |
| 35 | 71Q6-41700 | CAP |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R305LC-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
