- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(TRAVEL)
- UPPER HYDRAULIC PIPING(ATTACH)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CNTL 1, C/RISER)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CNTL 2, C/RISER)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIPING(CNTL 3, C/RISER)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- TRAVEL HYDRAULIC PIPING
- BOOM HYDRAULIC PIPING(6.25M, STD)
- BOOM HYDRAULIC PIPING(LONG REACH)
- BOOM HYDRAULIC PIPING(8.5M)
- BOOM GREASE LUB SYSTEM(6.25M, STD)
- BOOM GREASE LUB SYSTEM(LONG REACH)
- BOOM GREASE LUB SYSTEM(8.5M)
- QUICK COUPLING PIPING
- ARM HYDRAULIC PIPING(3.05M, STD)
- ARM HYDRAULIC PIPING(2.1M)
- ARM HYDRAULIC PIPING(2.5M)
- ARM HYDRAULIC PIPING(3.75M)
- ARM HYDRAULIC PIPING(4.6M)
- ARM HYDRAULIC PIPING(5.6M)
- ARM HYDRAULIC PIPING(LONG REACH)
- DOUBLE ACTING MAIN PIPING KIT
- ATTACH PIPING KIT(S & D/ACTING)
- SINGLE PEDAL
- SINGLE ACTING MAIN PIPING KIT

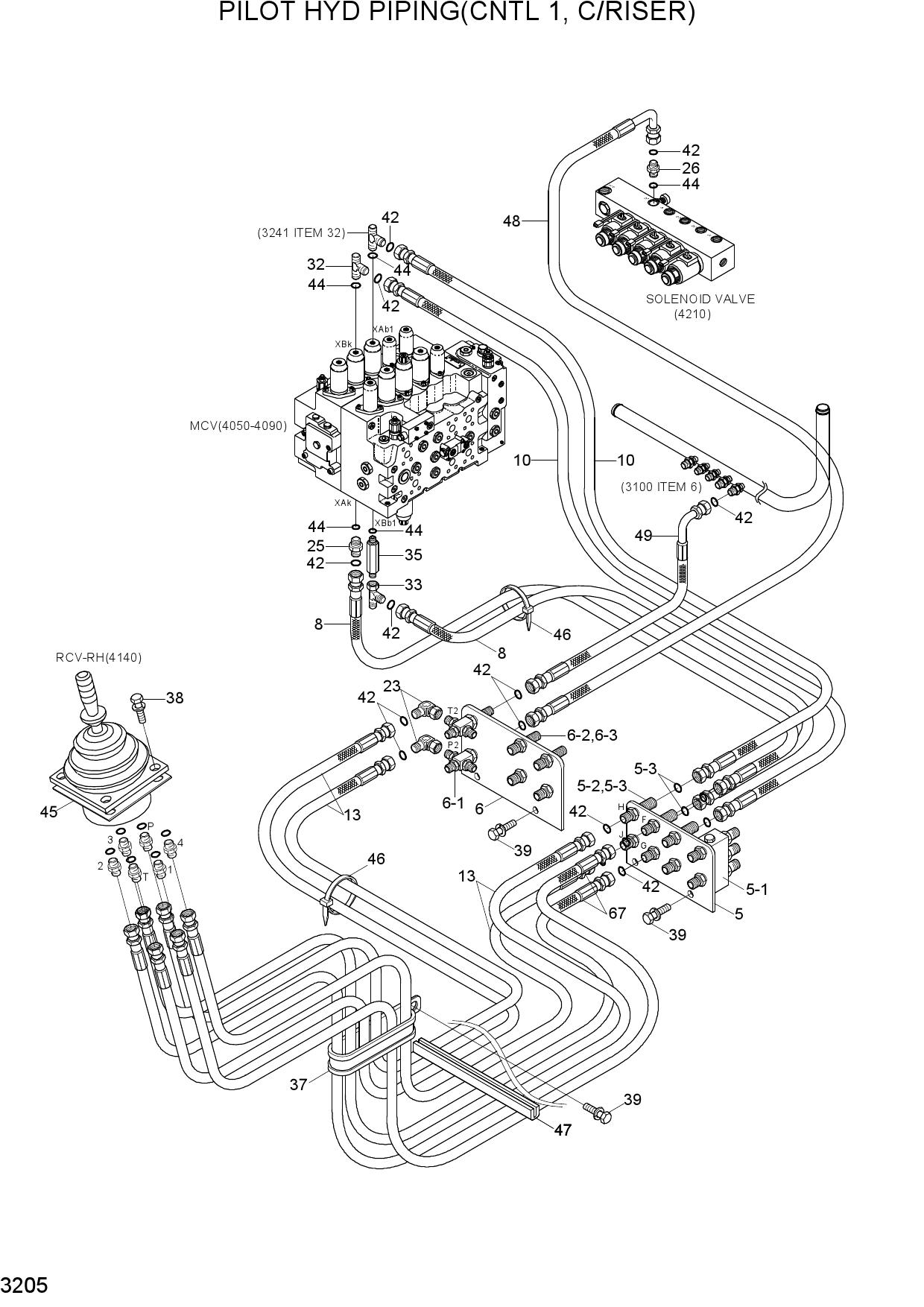

Запчасти для гусеничных экскаваторов Hyundai R290LC7H PILOT HYD PIPING(CNTL 1, C/RISER)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N8-24010 | TERMINAL ASSY-C | |
| 5-1 | 31N8-24030 | SHUTTLE-5 PORT | |
| 5-2 | X540-120002 | CONNECTOR-ORFS | |
| 5-3 | S621-120001 | O-RING | |
| 6 | 31N8-24020 | TERMINAL ASSY-P | |
| 6-1 | 31N8-24040 | CROSS-BULK HEAD TYPE | |
| 6-2 | X540-120002 | CONNECTOR-ORFS | |
| 6-3 | S621-120001 | O-RING | |
| 8 | X400-062033 | HOSE ASSY-SYNFLEX,ORFS | |
| 10 | X400-062039 | HOSE ASSY-SYNF ORFS | |
| 13 | X410-062067 | HOSE ASSY-SYNFLEX,ORFS | |
| 23 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 25 | X500-110001 | CONNECTOR-ORFS | |
| 26 | X500-110002 | CONNECTOR-ORFS | |
| 32 | X820-065252 | TEE-R/TYPE,ORFS | |
| 33 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 35 | 31N6-22370 | VALVE-SHOCKLESS | |
| 37 | 31E7-0310 | CLAMP-HOSE | |
| 38 | S035-063046 | BOLT-W/WASHER | |
| 39 | S037-102526 | BOLT-W/WASHER | |
| 42 | S621-012001 | O-RING | |
| 44 | S631-014004 | O-RING | |
| 45 | 31M6-51061 | SHIM(3.2T) | |
| 46 | S551-050203 | CLAMP-BAND | |
| 47 | S791-100018 | GROMMET-PLATE | |
| 48 | X420-062056 | HOSE ASSY-SYNFLEX,ORFS | |
| 49 | X420-062026 | HOSE ASSY-ORFS 0X90 |
