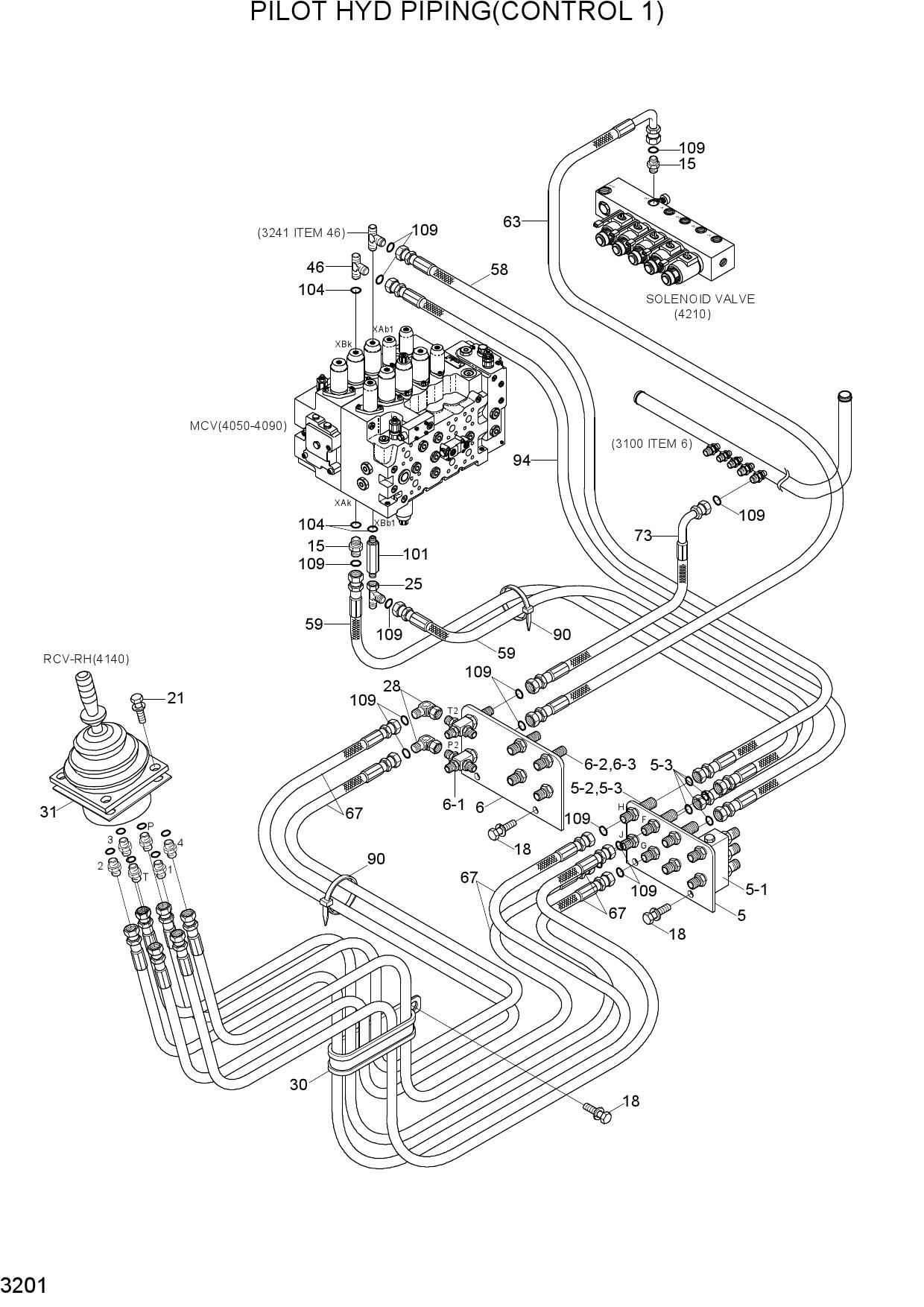

Запчасти для гусеничных экскаваторов Hyundai R290LC7H PILOT HYD PIPING(CONTROL 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N8-24010 | TERMINAL ASSY-C | |
| 5-1 | 31N8-24030 | SHUTTLE-5 PORT | |
| 5-2 | X540-120002 | CONNECTOR-ORFS | |
| 5-3 | S621-120001 | O-RING | |
| 6 | 31N8-24020 | TERMINAL ASSY-P | |
| 6-1 | 31N8-24040 | CROSS-BULK HEAD TYPE | |
| 6-2 | X540-120002 | CONNECTOR-ORFS | |
| 6-3 | S621-120001 | O-RING | |
| 15 | X500-110002 | CONNECTOR-ORFS | |
| 18 | S037-102526 | BOLT-W/WASHER | |
| 21 | S035-063046 | BOLT-W/WASHER | |
| 25 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 28 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 30 | 31E7-0310 | CLAMP-HOSE | |
| 31 | 31M6-51061 | SHIM(3.2T) | |
| 46 | X820-065252 | TEE-R/TYPE,ORFS | |
| 58 | X400-062038 | HOSE ASSY-SYNF,ORFS | |
| 59 | X400-062033 | HOSE ASSY-SYNFLEX,ORFS | |
| 63 | X420-062056 | HOSE ASSY-SYNFLEX,ORFS | |
| 67 | X410-062041 | HOSE ASSY-ORFS 0X45 | |
| 73 | X420-062026 | HOSE ASSY-ORFS 0X90 | |
| 90 | S551-050203 | CLAMP-BAND | |
| 94 | X400-062039 | HOSE ASSY-SYNF ORFS | |
| 101 | 31N6-22370 | VALVE-SHOCKLESS | |
| 104 | S631-014004 | O-RING | |
| 109 | S621-012001 | O-RING |
