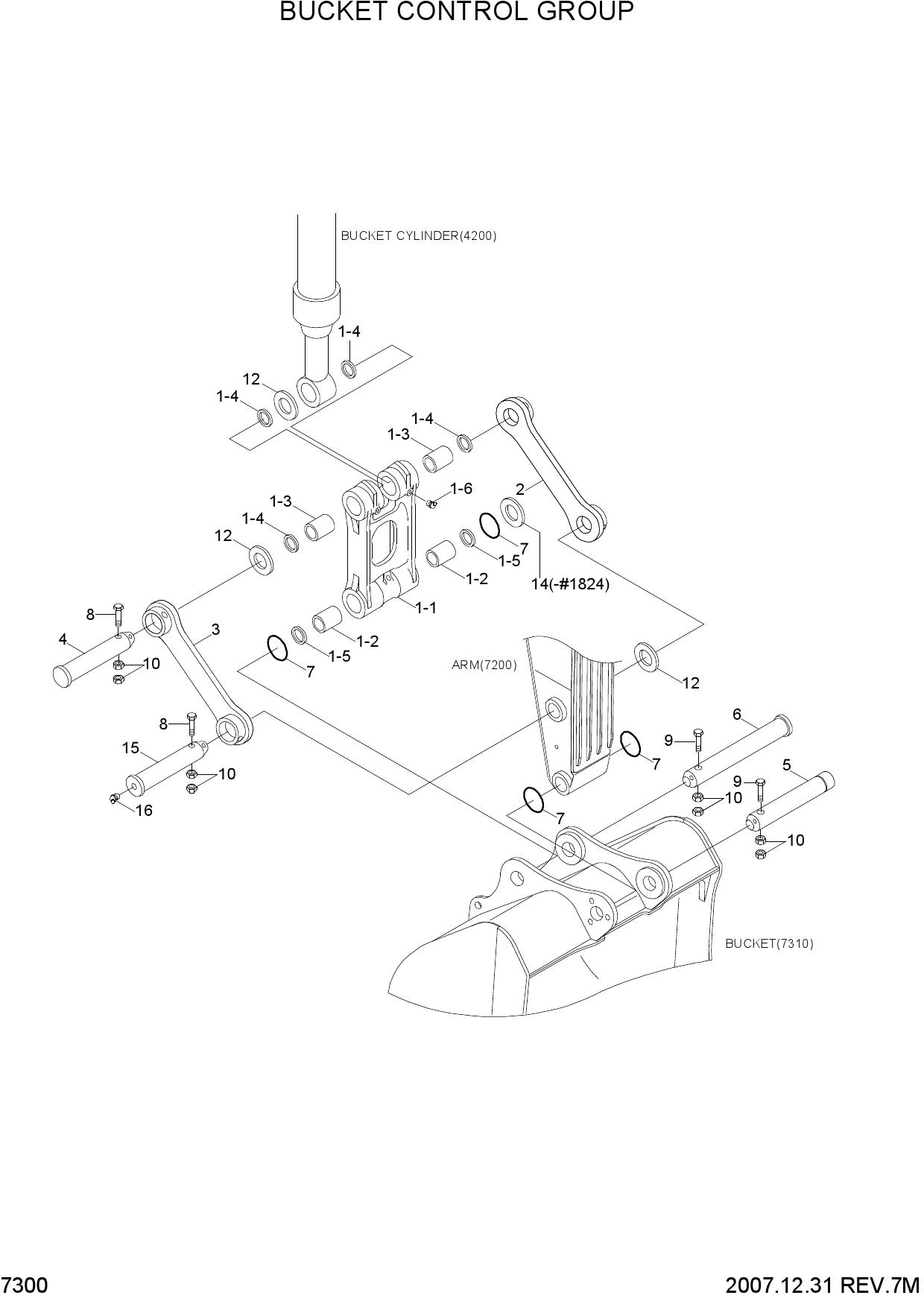

Запчасти для гусеничных экскаваторов Hyundai R290LC-7 BUCKET CONTROL GROUP
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 61N8-21000 | CONTROL ROD ASSY | |
| 1 | 61N8-21001 | CONTROL ROD ASSY | |
| 1 | 61N8-21001BG | CONTROL ROD ASSY | |
| 1-1 | 61N8-21010 | ROD-CONTROL | |
| 1-1 | 61N8-21011 | ROD-CONTROL | |
| 1-1 | 61N8-21011BG | ROD-CONTROL | |
| 1-2 | X122-903100 | BUSHING | |
| 1-2 | X124-902100 | BUSHING | |
| 1-3 | X112-803120 | BUSHING | |
| 1-3 | X114-802120 | BUSHING | |
| 1-4 | S700-080306 | DUST SEAL-DKIY TYPE | |
| 1-4 | S700-080206 | SEAL-DUST | |
| 1-5 | S700-090309 | DUST SEAL-DKIY TYPE | |
| 1-5 | S700-090206 | DUST SEAL-DKIY TYPE | |
| 1-6 | S651-810002 | NIPPLE-GREASE | |
| 2 | 61N8-21100 | CONTROL LINK-LH | |
| 2 | 61N8-21100BG | CONTROL LINK-LH | |
| 3 | 61N8-21110 | CONTROL LINK-RH | |
| 3 | 61N8-21110BG | CONTROL LINK-RH | |
| 4 | 61N8-11081 | PIN | |
| 4 | 61N8-11082 | PIN | |
| 4 | 61N8-11083 | PIN | |
| 4 | 61N8-11083-AS | PIN | |
| 5 | 61N8-11101 | PIN | |
| 5 | 61N8-11102 | PIN | |
| 5 | 61N8-11102-AS | PIN | |
| 6 | 61N8-11111 | PIN | |
| 6 | 61N8-11112 | PIN | |
| 6 | 61N8-11112-AS | PIN | |
| 7 | E161-3051 | O-RING | |
| 8 | S017-201552 | BOLT-HEX | |
| 9 | S017-201652 | BOLT-HEX | |
| 10 | S205-201002 | NUT-HEX | |
| 12 | S391-080160 | SHIM-ROUND(1.0T) | |
| 14 | S391-090145 | SHIM-ROUND(1.0T) | |
| 15 | 61N8-11090 | PIN | |
| 15 | 61N8-11091 | PIN | |
| 15 | 61N8-11091-AS | PIN | |
| 16 | S651-810002 | NIPPLE-GREASE |
