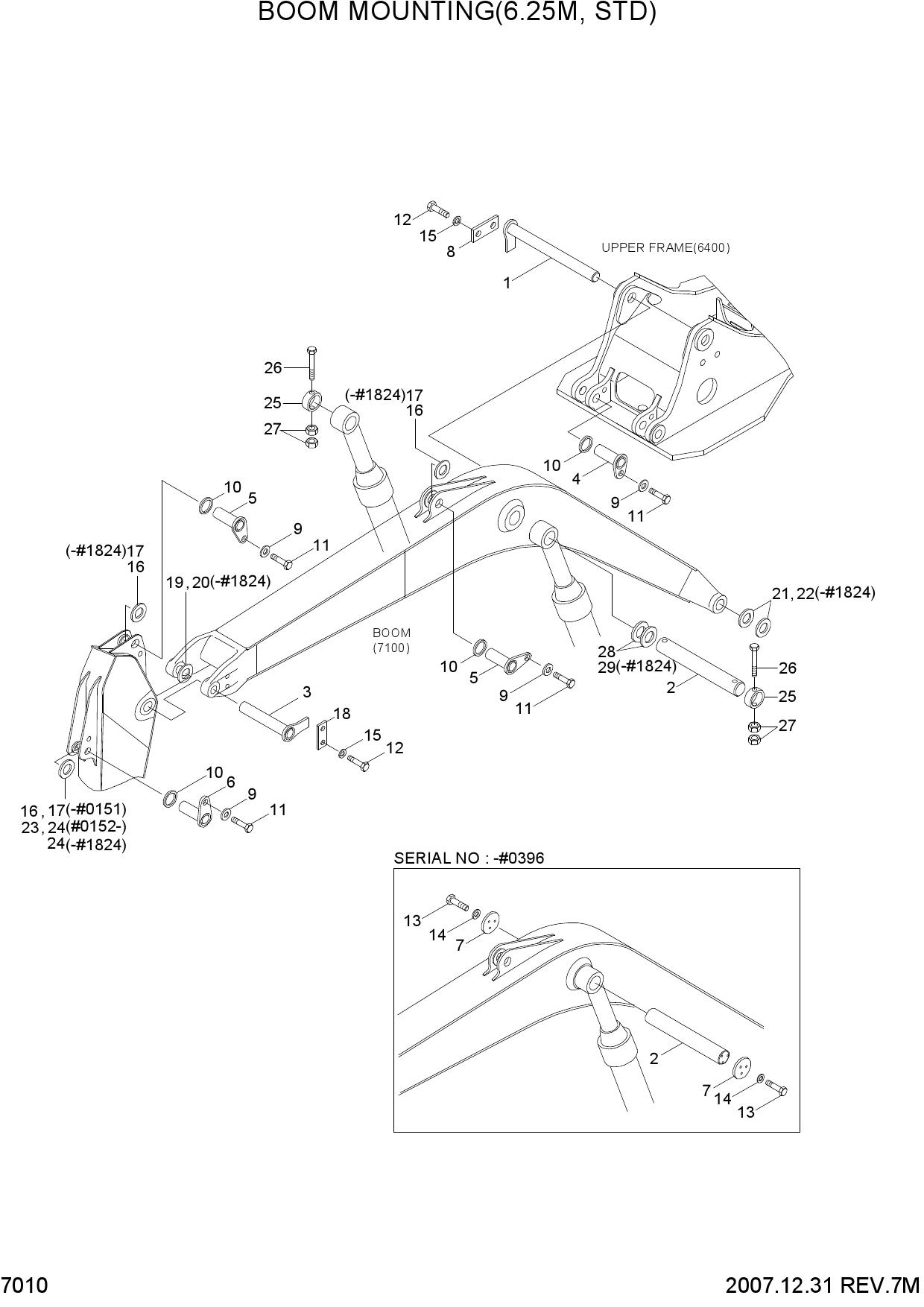

Запчасти для гусеничных экскаваторов Hyundai R290LC-7 BOOM MOUNTING(6.25M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 61N8-12010 | PIN ASSY | |
| 1 | 61N8-12010-AS | PIN ASSY | |
| 1 | 61N8-12011 | PIN ASSY | |
| 1 | 61N8-12011BG | PIN ASSY | |
| 1 | 61N8-12011-AS | PIN ASSY | |
| 2 | 61N8-12020 | PIN ASSY | |
| 2 | 61E9-1102 | PIN ASSY | |
| 2 | 61E9-11021 | PIN ASSY | |
| 2 | 61E9-11021-AS | PIN ASSY | |
| 3 | 61N8-12030 | PIN ASSY | |
| 3 | 61N8-12030-AS | PIN ASSY | |
| 3 | 61N8-12031 | PIN ASSY | |
| 3 | 61N8-12032 | PIN ASSY | |
| 3 | 61N8-12032-AS | PIN ASSY | |
| 4 | 61N8-01700 | PIN ASSY | |
| 4 | 61N8-01701BG | PIN ASSY | |
| 4 | 61N8-01701-AS | PIN ASSY | |
| 5 | 61N8-01710 | PIN ASSY | |
| 5 | 61N8-01711 | PIN ASSY | |
| 5 | 61N8-01711-AS | PIN ASSY | |
| 6 | 61N8-01720 | PIN ASSY | |
| 6 | 61N8-01721 | PIN ASSY | |
| 6 | 61N8-01721-AS | PIN ASSY | |
| 6 | 61N8-01710 | PIN ASSY | |
| 6 | 61N8-01711 | PIN ASSY | |
| 6 | 61N8-01711-AS | PIN ASSY | |
| 7 | 61N8-13010 | PLATE-STOP | |
| 8 | 61N8-13020 | PLATE | |
| 8 | 61N8-13020BG | PLATE | |
| 9 | 61N8-00320 | WASHER-HARDENED | |
| 10 | 61N8-00170 | SPACER-PIN | |
| 11 | S017-200302 | BOLT-HEX | |
| 12 | S017-160402 | BOLT-HEX | |
| 13 | S017-120402 | BOLT-HEX | |
| 14 | S411-120002 | WASHER-SPRING | |
| 15 | S411-160002 | WASHER-SPRING | |
| 16 | S391-090165 | SHIM-ROUND(1.0T) | |
| 16 | S391-090165 | SHIM-ROUND(1.0T) | |
| 17 | S392-090165 | SHIM-ROUND(2.0T) | |
| 17 | S392-090165 | SHIM-ROUND(2.0T) | |
| 18 | 61E9-10810 | PLATE | |
| 19 | S391-100190 | SHIM-ROUND(1.0T) | |
| 20 | S392-100190 | SHIM-ROUND(2.0T) | |
| 21 | S391-110190 | SHIM-ROUND(1.0T) | |
| 22 | S392-110190 | SHIM-ROUND(2.0T) | |
| 23 | S391-090150 | SHIM-ROUND(1.0T) | |
| 24 | S392-090150 | SHIM-ROUND(2.0T) | |
| 25 | 61N8-19030 | STOPPER-PIN | |
| 26 | S017-161802 | BOLT-HEX | |
| 27 | S205-161002 | NUT-HEX | |
| 28 | S391-100150 | SHIM-ROUND(1.0T) | |
| 29 | S392-100150 | SHIM-ROUND(2.OT) |
