- MAIN PUMP(-#1179)
- MAIN PUMP(#1180-)
- REGULATOR(-#1179)
- REGULATOR(#1180-)
- GEAR PUMP(-#1179)
- GEAR PUMP(#1180-)
- EPPR VALVE
- MAIN CONTROL VALVE(1/5, -#1171)
- MAIN CONTROL VALVE(1/5, #1172-)
- MAIN CONTROL VALVE(2/5, -#1171)
- MAIN CONTROL VALVE(2/5, #1172-)
- MAIN CONTROL VALVE(3/5, -#1171)
- MAIN CONTROL VALVE(3/5, #1172-)
- MAIN CONTROL VALVE(4/5, -#1171)
- MAIN CONTROL VALVE(4/5, #1172-)
- MAIN CONTROL VALVE(5/5, -#1171)
- MAIN CONTROL VALVE(5/5, #1172-)
- SWING MOTOR(-#0150)
- SWING MOTOR(#0151-)
- SWING REDUCTION GEAR(-#2205)
- SWING REDUCTION GEAR(#2206-)
- TRAVEL MOTOR(-#1214)
- TRAVEL MOTOR(#1215-)
- TRAVEL REDUCTION GEAR(-#1214)
- TRAVEL REDUCTION GEAR(#1215-)
- REMOTE CONTROL LEVER
- REMOTE CONTROL LEVER(OPT, #1313-)
- REMOTE CONTROL PEDAL
- TURNING JOINT
- BOOM CYLINDER(-#1621)
- BOOM CYLINDER(#1622-)
- ARM CYLINDER(-#1621)
- ARM CYLINDER(#1622-1810)
- ARM CYLINDER(#1811-)
- BUCKET CYLINDER(-#1621)
- BUCKET CYLINDER(#1622-)
- BUCKET CYLINDER(#0024-, LONG REACH)
- SOLENOID VALVE

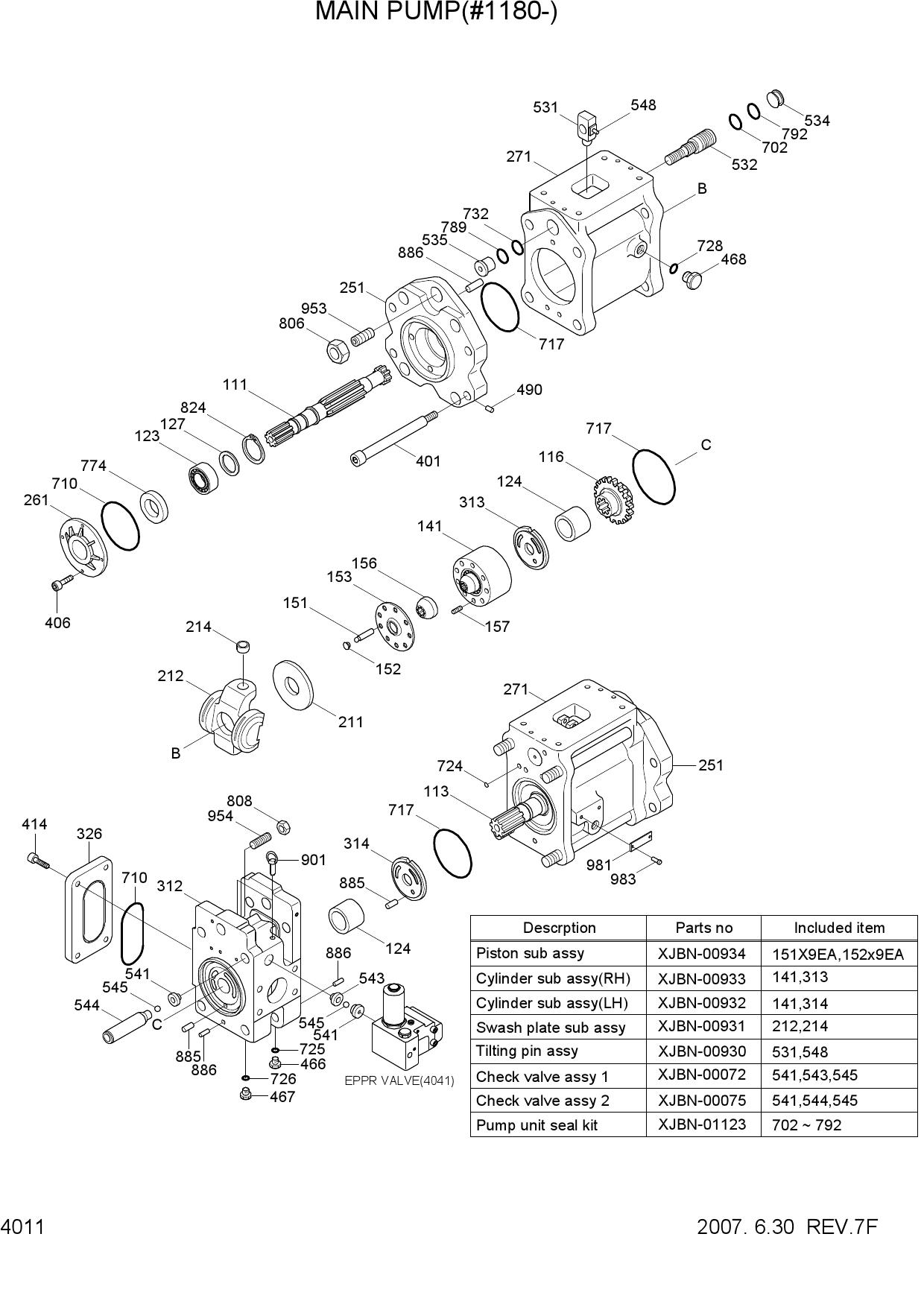

Запчасти для гусеничных экскаваторов Hyundai R290LC-7 MAIN PUMP(#1180-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N8-10060 | MAIN PUMP | |
| *-1 | XJBN-00963 | MAIN PUMP UNIT | |
| 111 | XJBN-00953 | SHAFT(F)-DRIVE | |
| 113 | XJBN-00952 | SHAFT(R)-DRIVE | |
| 116 | XJBN-00951 | GEAR-1ST | |
| 123 | XJBN-00950 | BEARING-ROLLER | |
| 124 | XJBN-00949 | BEARING-NEEDLE | |
| 127 | XJBN-00081 | SPACER-BEARING | |
| N141 | XJBN-00948 | BLOCK-CYLINDER | |
| N151 | XJBN-00947 | PISTON | |
| N152 | XJBN-00946 | SHOE | |
| 153 | XJBN-00945 | PLATE-SET | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | |
| 157 | XJBN-00944 | SPRING-CYLINDER | |
| 211 | XJBN-00085 | PLATE-SHOE | |
| N212 | XJBN-00943 | PLATE-SWASH | |
| 214 | XJBN-00071 | BUSHING-TILTING | |
| 251 | XJBN-00942 | SUPPORT-SP | |
| 261 | XJBN-00941 | COVER(F)-SEAL | |
| 271 | XJBN-00088 | CASING-PUMP | |
| 312 | XJBN-00940 | BLOCK-VALVE | |
| N313 | XJBN-00939 | PLATE(R)-VALVE | |
| N314 | XJBN-00938 | PLATE(L)-VALVE | |
| 326 | XJBN-00937 | COVER | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | |
| 406 | XJBN-00029 | SCREW-HEX | |
| 414 | XJBN-00160 | SCREW-SOCKET | |
| 466 | XJBN-00030 | PLUG | |
| 467 | XJBN-00936 | PLUG | |
| 468 | XJBN-00031 | PLUG | |
| 490 | XJBN-00032 | PLUG | |
| N531 | XJBN-00956 | PIN-TILTING | |
| 532 | XJBN-00955 | PISTON-SERVO | |
| 534 | XJBN-00092 | STOPPER(L) | |
| 535 | XJBN-00093 | STOPPER(S) | |
| N541 | XJBN-00859 | SEAT | |
| N543 | XJBN-00860 | STOPPER | |
| N544 | XJBN-00861 | STOPPER | |
| 545 | XJBN-00038 | BALL-STEEL | |
| N548 | XJBN-00360 | PIN-FEED BACK | |
| K702 | XJBN-00918 | O-RING | |
| K710 | XJBN-00095 | O-RING | |
| K717 | XJBN-00096 | O-RING | |
| K724 | XJBN-00044 | O-RING | |
| K725 | XJBN-00045 | O-RING | |
| K726 | XJBN-00233 | O-RING | |
| K728 | XJBN-00046 | O-RING | |
| K732 | XJBN-00912 | O-RING | |
| K774 | XJBN-00906 | SEAL-OIL | |
| K789 | XJBN-00099 | RING-BACK UP | |
| K792 | XJBN-00100 | RING-BACK UP | |
| 806 | XJBN-00101 | NUT | |
| 808 | XJBN-00051 | NUT | |
| 824 | XJBN-00102 | RING-SNAP | |
| 885 | XJBN-00103 | PIN-VALVE PLATE | |
| 886 | XJBN-00054 | PIN-SPRING | |
| 901 | XJBN-00104 | BOLT-EYE | |
| 953 | XJBN-00954 | SCREW-SET | |
| 954 | XJBN-00106 | SCREW-SET | |
| 981 | XJBN-00156 | NAME PLATE | |
| 983 | XJBN-00455 | PIN | |
| *-2 | XJBN-00964 | REGULATOR ASSY | |
| *-3 | XJBN-00965 | GEAR PUMP ASSY | |
| *-4 | XJBN-00014 | EPPR VALVE ASSY | |
| 011 | XJBN-00934 | PISTON ASSY | |
| 013 | XJBN-00933 | CYLINDER(R) ASSY | |
| 014 | XJBN-00932 | CYLINDER(L) ASSY | |
| 030 | XJBN-00931 | SWASH PLATE ASSY | |
| 041 | XJBN-00072 | CHECK VALVE ASSY 1 | |
| 042 | XJBN-00075 | CHECK VALVE ASSY 2 | |
| 530 | XJBN-00930 | TILTING PIN ASSY | |
| K | XJBN-01123 | SEAL KIT-PUMP UNIT |
