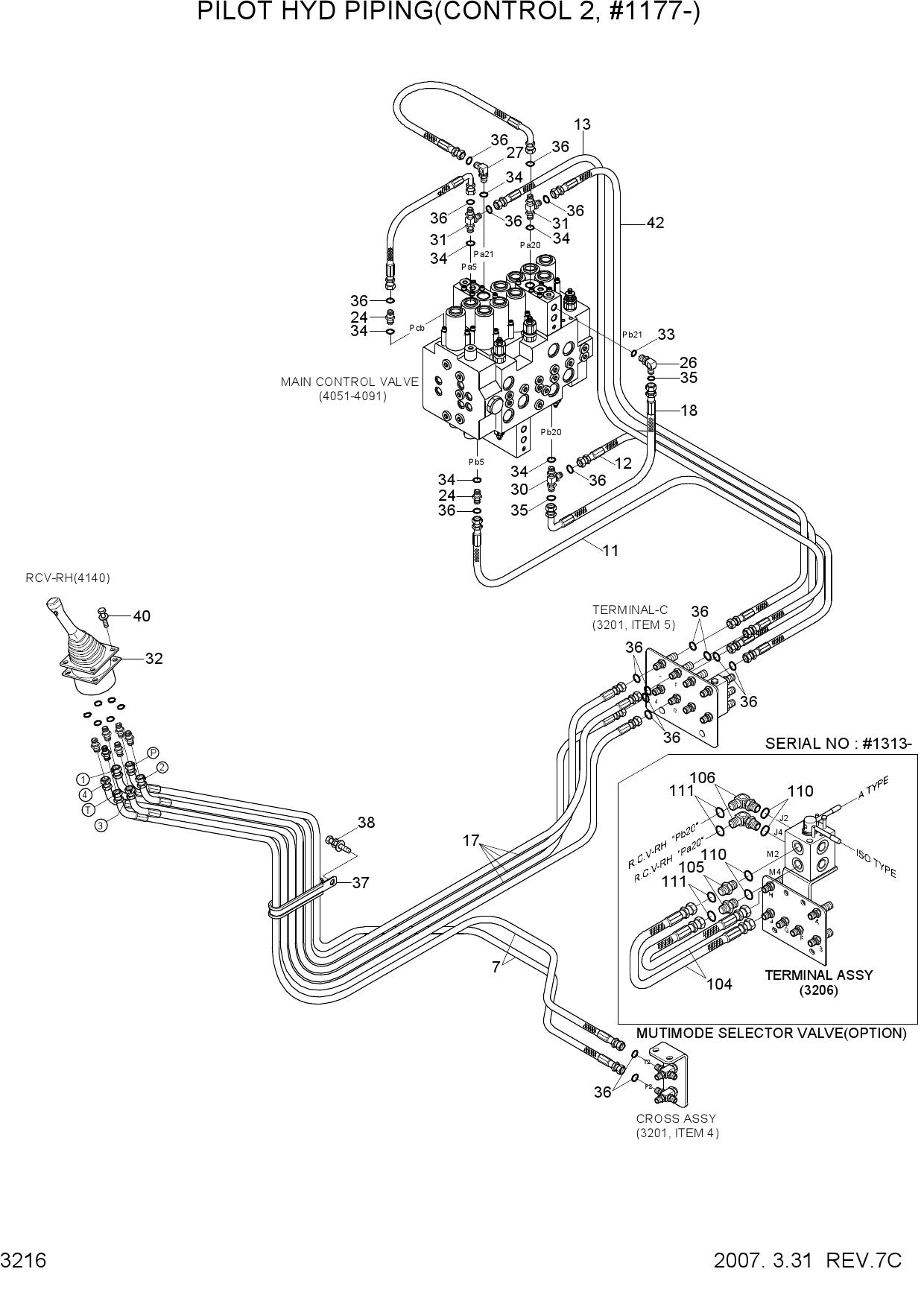

Запчасти для гусеничных экскаваторов Hyundai R290LC-7 PILOT HYD PIPING(CONTROL 2, #1177-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 7 | P920-062028 | HOSE ASSY-ORFS 0X45 | |
| 11 | X400-062032 | HOSE ASSY-SYNF,ORFS | |
| 12 | X400-062028 | HOSE ASSY-SYNFLEX,ORFS | |
| 13 | X400-062035 | HOSE ASSY-SYNF,ORFS | |
| 17 | X410-062041 | HOSE ASSY-ORFS 0X45 | |
| 18 | X420-042016 | HOSE ASSY-SYNFLEX,ORFS | |
| 19 | X420-062014 | HOSE ASSY-SYNFLEX,ORFS | |
| 24 | X500-110002 | CONNECTOR-ORFS | |
| 26 | X500-110001 | CONNECTOR-ORFS | |
| 27 | X520-110002 | ELBOW-90,ORFS | |
| 30 | X820-065152 | TEE-R/TYPE,ORFS | |
| 31 | X820-065252 | TEE-R/TYPE,ORFS | |
| 32 | 31M6-51061 | SHIM(3.2T) | |
| 33 | S631-011004 | O-RING | |
| 34 | S631-014004 | O-RING | |
| 35 | S621-011001 | O-RING | |
| 36 | S621-012001 | O-RING | |
| 37 | 31E7-0310 | CLAMP-HOSE | |
| 38 | S037-102526 | BOLT-W/WASHER | |
| 40 | S035-063046 | BOLT-W/WASHER | |
| 42 | X400-062034 | HOSE ASSY-SYNF,ORFS | |
| 104 | P910-062008 | HOSE ASSY-ORFS 0X0 | |
| 105 | X500-110011 | CONNECTOR-ORFS | |
| 106 | X520-110011 | ELBOW-90,ORFS | |
| 110 | S631-011004 | O-RING | |
| 111 | S621-012001 | O-RING |
