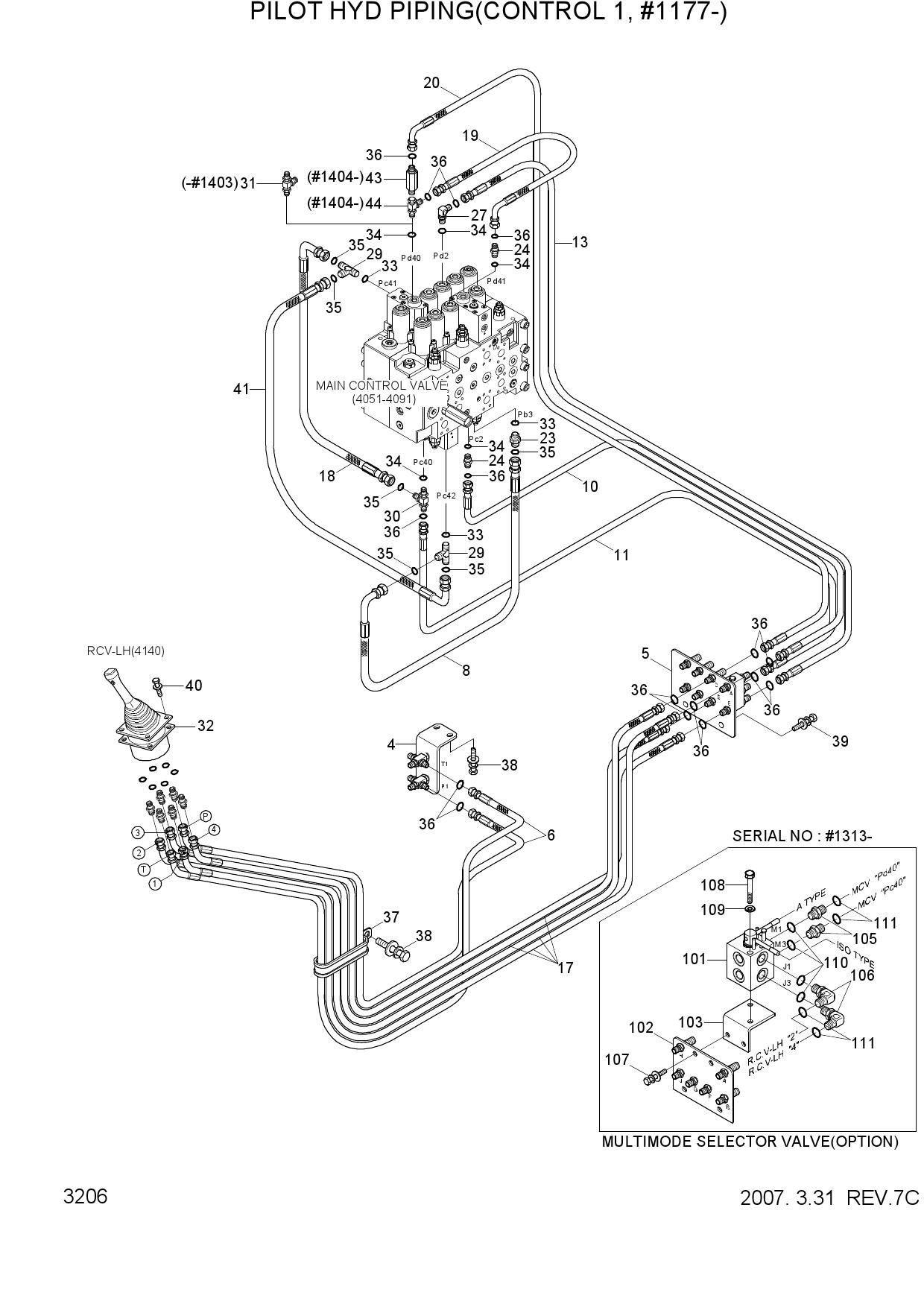

Запчасти для гусеничных экскаваторов Hyundai R290LC-7 PILOT HYD PIPING(CONTROL 1, #1177-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31NB-20022 | CROSS ASSY | |
| 5 | 31N8-24010 | TERMINAL ASSY-C | |
| 6 | P920-062026 | HOSE ASSY-ORFS 0X45 | |
| 8 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 10 | X400-062029 | HOSE ASSY-SYNF,ORFS | |
| 11 | X400-062032 | HOSE ASSY-SYNF,ORFS | |
| 13 | X400-062035 | HOSE ASSY-SYNF,ORFS | |
| 17 | X410-062041 | HOSE ASSY-ORFS 0X45 | |
| 18 | X420-042016 | HOSE ASSY-SYNFLEX,ORFS | |
| 19 | X420-062014 | HOSE ASSY-SYNFLEX,ORFS | |
| 20 | X420-062038 | HOSE ASSY-SYNF,ORFS 0X90 | |
| 23 | X500-110013 | CONNECTOR-ORFS | |
| 24 | X500-110002 | CONNECTOR-ORFS | |
| 27 | X520-110002 | ELBOW-90,ORFS | |
| 29 | X820-045151 | TEE-R/TYPE,ORFS | |
| 30 | X820-065152 | TEE-R/TYPE,ORFS | |
| 31 | X820-065252 | TEE-R/TYPE,ORFS | |
| 32 | 31M6-51061 | SHIM(3.2T) | |
| 33 | S631-011004 | O-RING | |
| 34 | S631-014004 | O-RING | |
| 35 | S621-011001 | O-RING | |
| 36 | S621-012001 | O-RING | |
| 37 | 31E7-0310 | CLAMP-HOSE | |
| 38 | S037-102526 | BOLT-W/WASHER | |
| 39 | S037-103026 | BOLT-W/WASHER | |
| 40 | S035-063046 | BOLT-W/WASHER | |
| 41 | X420-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 43 | 31N6-22350 | VALVE-SHOCKLESS | |
| 44 | X840-525252 | TEE-R/TYPE,SWIVEL,ORFS | |
| 101 | 31N6-22050 | SELECTOR VLV-MULTIMODE | |
| 102 | 31N9-22110 | TERMINAL ASSY | |
| 103 | 31N9-22120 | BRACKET-WA | |
| 105 | X500-110011 | CONNECTOR-ORFS | |
| 106 | X520-110011 | ELBOW-90,ORFS | |
| 107 | S037-103026 | BOLT-W/WASHER | |
| 108 | S015-080806 | BOLT-HEX | |
| 109 | S411-080006 | WASHER-SPRING | |
| 110 | S631-011004 | O-RING | |
| 111 | S621-012001 | O-RING |
