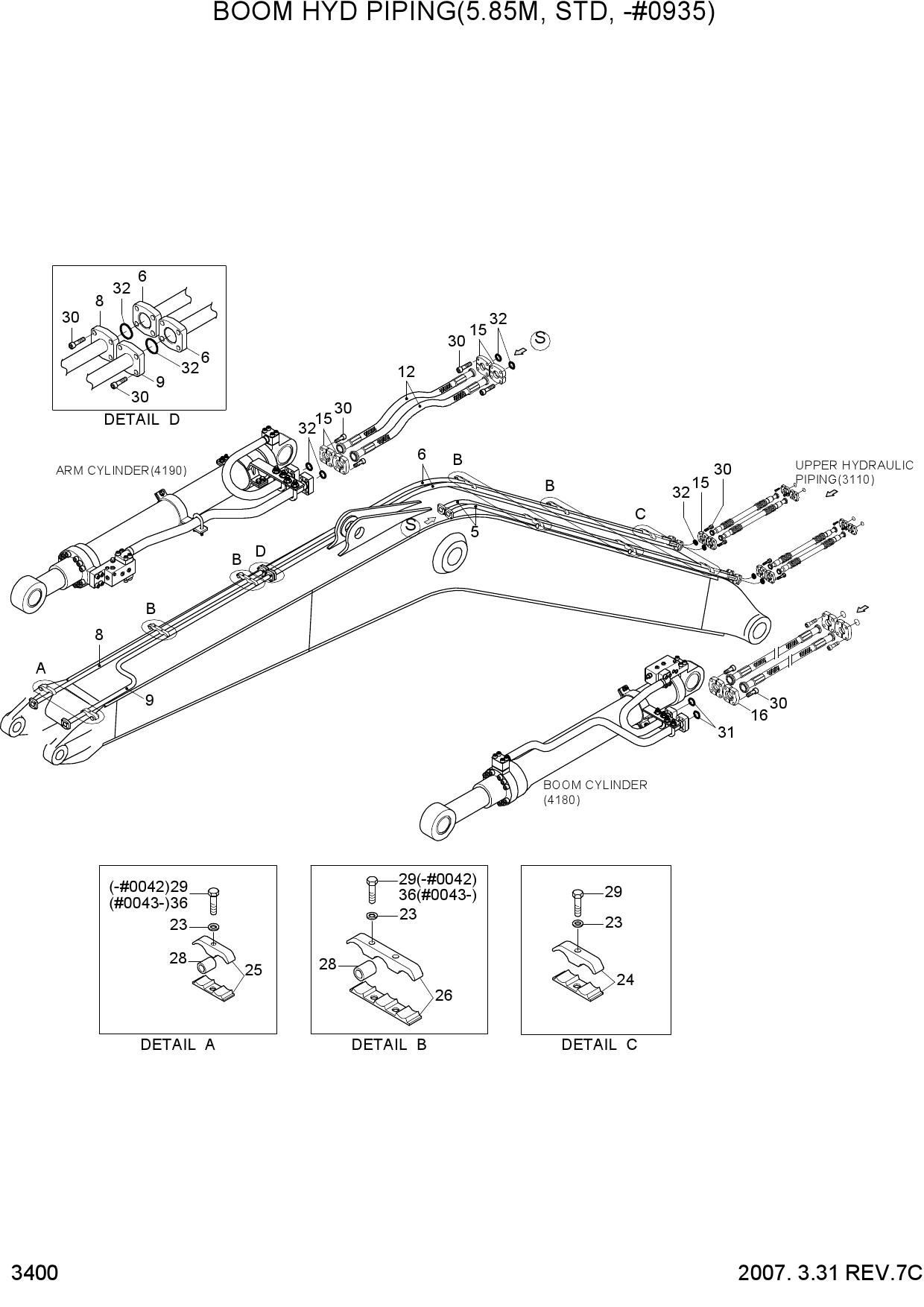

Запчасти для гусеничных экскаваторов Hyundai R250LC-7 BOOM HYD PIPING(5.85M, STD, -#0935)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N7-50152 | PIPE ASSY | |
| 6 | 31N7-50162 | PIPE ASSY | |
| 8 | 31N7-50182 | PIPE ASSY | |
| 9 | 31N7-50192 | PIPE ASSY | |
| 12 | P680-167320FL | HOSE ASSY-FLG | |
| 15 | P173-160104 | FLANGE-HYD,SPLIT | |
| 16 | P173-120102 | FLANGE-HYD,SPLIT | |
| 23 | S411-160002 | WASHER-SPRING | |
| 24 | 31N6-50310 | CLAMP ASSY | |
| 25 | 31N6-50320 | CLAMP ASSY | |
| 26 | 31N6-50340 | CLAMP ASSY | |
| 28 | 31N5-50240 | SPACER-PIPE | |
| 29 | S017-160752 | BOLT-HEX | |
| 29 | S017-160752 | BOLT-HEX | |
| 30 | S109-100306 | BOLT-SOCKET | |
| 31 | Y171-019004 | O-RING | |
| 32 | Y171-024004 | O-RING | |
| 36 | S017-16080A | BOLT-HEX(COATING) |
