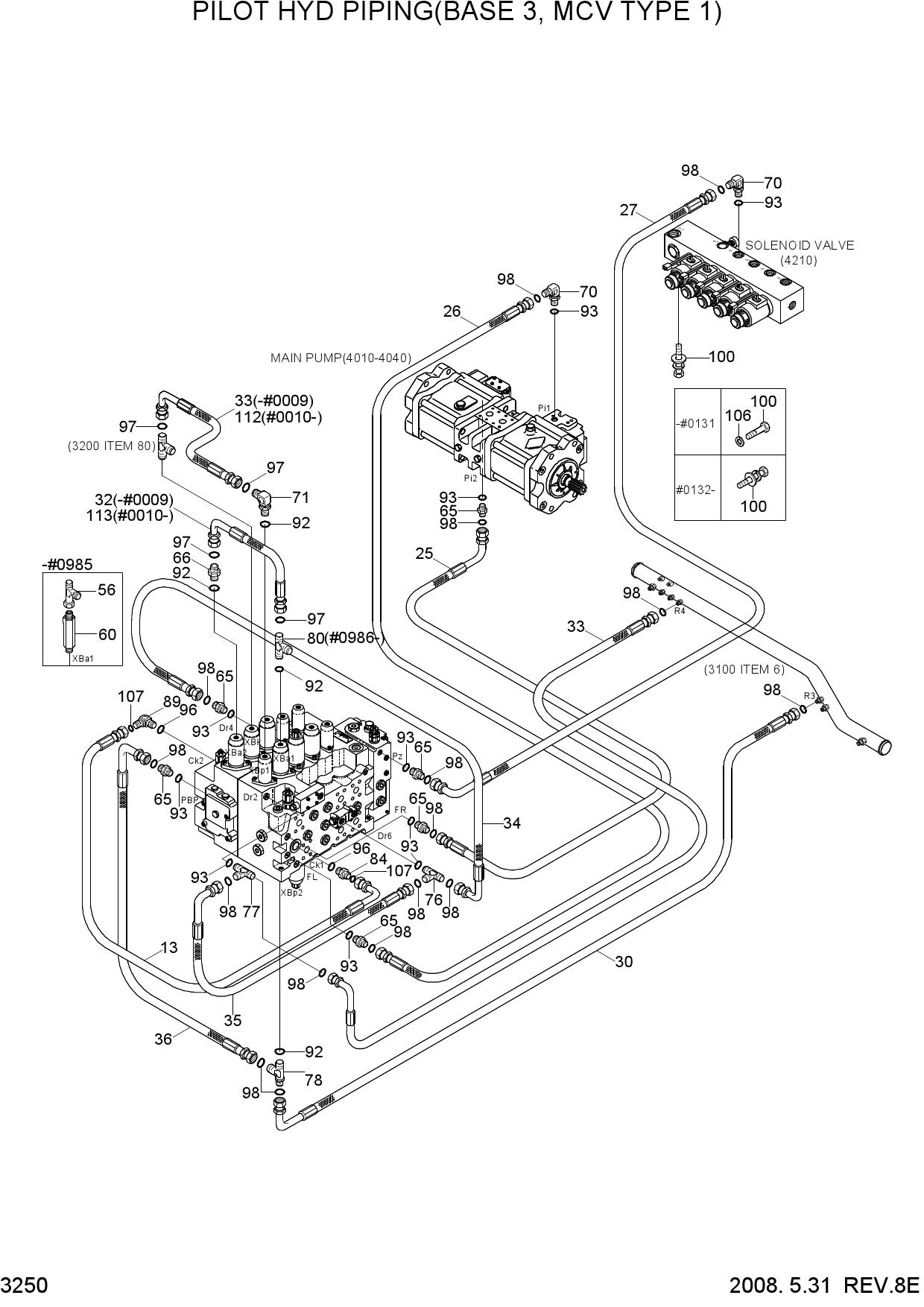

Запчасти для гусеничных экскаваторов Hyundai R250LC-7 PILOT HYD PIPING(BASE 3, MCV TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 13 | P930-087024 | HOSE ASSY-ORFS 0X90 | |
| 25 | P620-042049 | HOSE ASSY-THD 0X90 | |
| 25 | P620-043049 | HOSE ASSY-THD 0X90 | |
| 25 | P930-043049 | HOSE ASSY-ORFS 0X90 | |
| 26 | P620-042050 | HOSE ASSY-THD 0X90 | |
| 26 | P620-043050 | HOSE ASSY-THD 0X90 | |
| 26 | P930-043050 | HOSE ASSY-ORFS 0X90 | |
| 27 | P860-042044 | HOSE ASSY-SYN 0X90 | |
| 27 | X420-042044 | HOSE ASSY-ORFS 0X90 | |
| 30 | P860-042020 | HOSE ASSY-SYN 0X90 | |
| 30 | X420-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 32 | P860-042016 | HOSE ASSY-SYN 0X90 | |
| 33 | P860-042014 | HOSE ASSY-SYN 0X90 | |
| 33 | P860-042014 | HOSE ASSY-SYN 0X90 | |
| 33 | X420-042014 | HOSE ASSY-SYNF,ORFS 0X90 | |
| 34 | P860-042012 | HOSE ASSY-SYN 0X90 | |
| 34 | X420-042012 | HOSE ASSY-ORFS 0X90 | |
| 35 | P860-042010 | HOSE ASSY-SYN 0X90 | |
| 35 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 36 | P860-042009 | HOSE ASSY-SYN 0X90 | |
| 36 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 48 | X400-042025 | HOSE ASSY-SYNFLEX,ORFS | |
| 56 | 31EG-90540 | TEE-R/TYPE,S/NUT | |
| 56 | X840-525252 | TEE-R/TYPE,SWIVEL,ORFS | |
| 60 | 31N6-22110 | VALVE-SHOCKLESS | |
| 60 | 31N6-22370 | VALVE-SHOCKLESS | |
| 65 | P010-110002 | CONNECTOR | |
| 65 | X500-110001 | CONNECTOR-ORFS | |
| 66 | P010-110003 | CONNECTOR | |
| 66 | X500-110002 | CONNECTOR-ORFS | |
| 70 | P020-110001 | ELBOW-90 | |
| 70 | X520-110001 | ELBOW-90,ORFS | |
| 71 | P020-110002 | ELBOW-90 | |
| 71 | X520-110002 | ELBOW-90,ORFS | |
| 76 | P310-040404 | TEE-BRANCH TYPE | |
| 76 | X810-045151 | TEE-B/TYPE,ORFS | |
| 77 | P320-040404 | TEE-RUN TYPE | |
| 77 | X820-045151 | TEE-R/TYPE,ORFS | |
| 78 | P320-060404 | TEE-RUN TYPE | |
| 78 | X820-065151 | TEE-R/TYPE,ORFS | |
| 80 | X820-065252 | TEE-R/TYPE,ORFS | |
| 84 | X500-110017 | CONNECTOR-ORFS | |
| 89 | X520-110016 | ELBOW-90,ORFS | |
| 92 | S631-014004 | O-RING | |
| 93 | S631-011004 | O-RING | |
| 96 | S621-014001 | O-RING | |
| 97 | S621-012001 | O-RING | |
| 98 | S621-011001 | O-RING | |
| 100 | S017-080252 | BOLT-HEX | |
| 100 | S035-082526 | BOLT-W/WASHER | |
| 106 | S403-082002 | WASHER-PLAIN | |
| 107 | S631-024004 | O-RING | |
| 112 | P420-062014 | HOSE ASSY-COMP 0X90 | |
| 113 | P420-062016 | HOSE ASSY-COMP 0X90 |
