- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING(TRAVEL, AMPHIBIOUS)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIPING(CONTROL 1, #3529-)
- PILOT HYD PIPING(CONTROL 2, #3529-)
- PILOT HYD PIPING(CONTROL 3, #3529-)
- PILOT HYD PIPING(BASE 1, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 2, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 3, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 1, CLUSTER TYPE 2)
- PILOT HYD PIPING(BASE 2, CLUSTER TYPE 2)
- PILOT HYD PIPING(BASE 3, CLUSTER TYPE 2)
- TRAVEL HYD PIPING(T/MOTOR TYPE 1)
- TRAVEL HYD PIPING(T/MOTOR TYPE 2)
- BOOM HYD PIPING(5.68M, STD)
- BOOM HYD PIPING(LONG REACH, OPT)
- BOOM HYD PIPING(4.7M, OPT)
- BOOM GREASE LUB SYSTEM(5.68M, STD)
- BOOM GREASE LUB SYSTEM(L/REACH, OPT)
- BOOM GREASE LUB SYSTEM(4.7M, OPT)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP PIPING
- QUICK CLAMP(HOOK TYPE 1, -#3872)
- QUICK CLAMP(CLOSE TYPE 1, -#3872)
- QUICK CLAMP(HOOK TYPE 2, -#3872)
- QUICK CLAMP(CLOSE TYPE 2, -#3872)
- QUICK CLAMP(HOOK TYPE 1, #3873-)
- QUICK CLAMP(CLOSED TYPE 1, #3873-)
- QUICK CLAMP(HOOK TYPE 2, #3873-)
- QUICK CLAMP(CLOSED TYPE 2, #3873-)
- ARM HYD PIPING
- ARM HYD PIPING(LONG REACH, OPT)
- ARM HYD PIPING(3.9M, OPT)
- ARM SAFETY LOCK SYSTEM
- ATTACH PIPING KIT(S & D/ACTING)
- D/ACT MAIN PIPING KIT 1(CLUSTER TYPE 1)
- D/ACT MAIN PIPING KIT 2(CLUSTER TYPE 1)
- D/ACT MAIN PIPING KIT(CLUSTER TYPE 2)
- SINGLE PEDAL(DOUBLE ACTING)
- S/ACTING MAIN PIPING KIT(CLUSTER TYPE 1)
- S/ACTING MAIN PIPING KIT(CLUSTER TYPE 2)

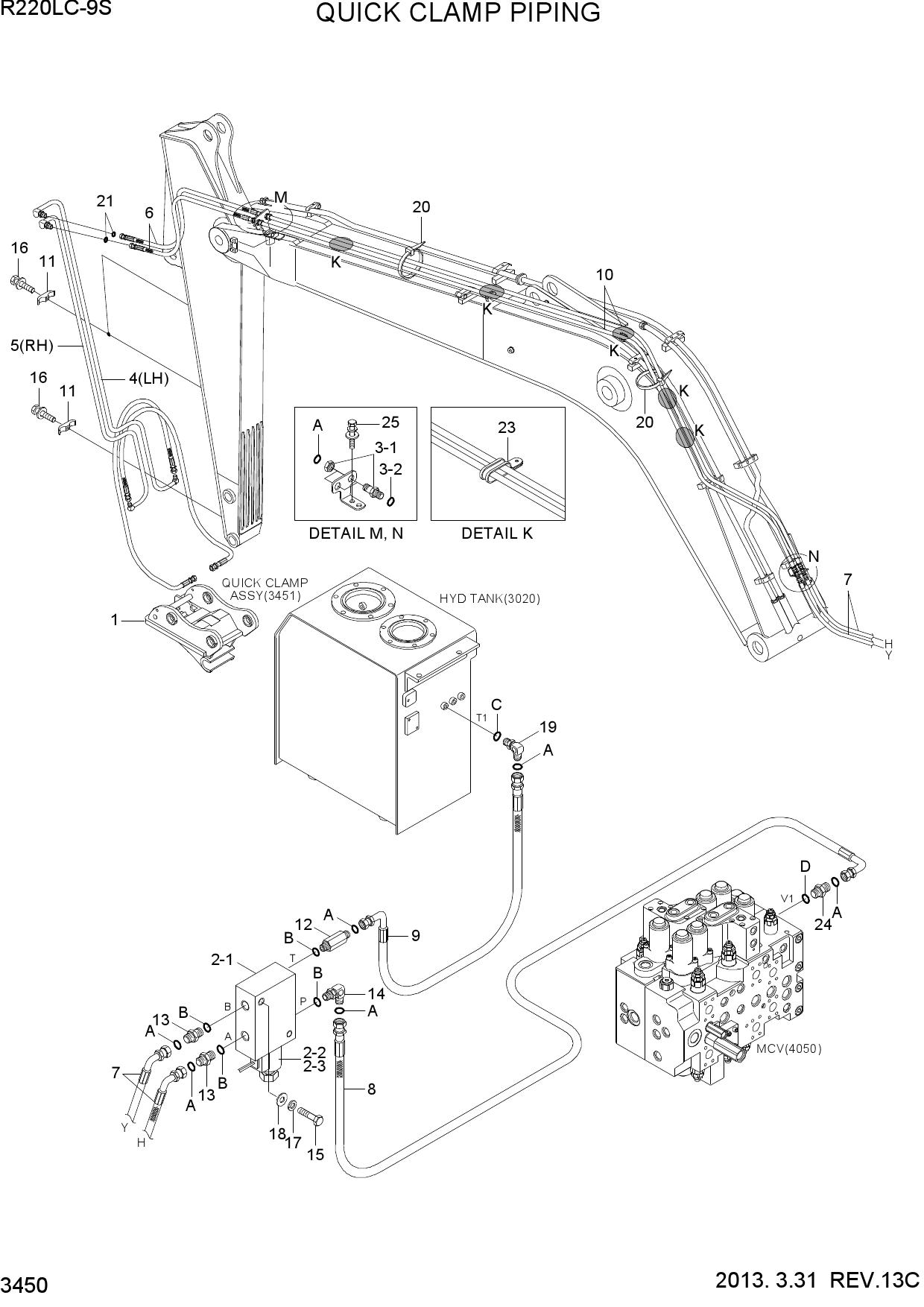

Запчасти для гусеничных экскаваторов Hyundai R220LC-9S QUICK CLAMP PIPING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31Q6-91720 | SOLENOID VALVE-Q/CLAMP | |
| 2-1 | B-34EA-91720 | MANIFOLD | |
| 2-2 | GS044200NC | VALVE-SOLENOID | |
| 2-3 | LTC0627VMD/DT | COIL | |
| 3 | 31N8-95770 | TERMINAL-Q/CLAMP | |
| 3 | 31N8-95771 | TERMINAL-Q/CLAMP | |
| 3-1 | X540-120001 | CONNECTOR-ORFS | |
| 3-2 | S621-011001 | O-RING | |
| 4 | 31Q6-91520 | PIPE WA | |
| 4 | 31Q6-91700 | PIPE WA | |
| 4 | 31Q6-91800 | PIPE WA | |
| 5 | 31Q6-91530 | PIPE WA | |
| 5 | 31Q6-91710 | PIPE WA | |
| 5 | 31Q6-91810 | PIPE WA | |
| 6 | P915-048033 | HOSE ASSY-ORFS 0X0 | |
| 6 | P915-048030 | HOSE ASSY-ORFS 0X0 | |
| 6 | P915-048022 | HOSE ASSY-ORFS 0X0 | |
| 6 | P915-048064 | HOSE ASSY-ORFS 0X0 | |
| 7 | P920-048034 | HOSE ASSY-ORFS 0X45 | |
| 8 | P930-048016 | HOSE ASSY-ORFS 0X90 | |
| 9 | P930-042009 | HOSE ASSY-ORFS 0X90 | |
| 10 | P910-048119 | HOSE ASSY-ORFS 0X0 | |
| 10 | P910-048098 | HOSE ASSY-ORFS 0X0 | |
| 11 | 34EA-91811 | CLAMP-PIPE | |
| 12 | X511-104512 | CONNECTOR-LONG,ORFS | |
| 13 | X500-110001 | CONNECTOR-ORFS | |
| 14 | X520-110001 | ELBOW-90,ORFS | |
| 15 | S017-100506 | BOLT-HEX | |
| 16 | S037-103026 | BOLT-W/WASHER | |
| 17 | S411-100006 | WASHER-SPRING | |
| 18 | S403-10200B | WASHER-PLAIN | |
| 19 | X520-110012 | ELBOW-90,ORFS | |
| 20 | S554-054300 | CLAMP-BAND | |
| 21 | S621-011001 | O-RING | |
| 23 | 31L7-10200 | CLAMP-TUBE | |
| 24 | X500-110013 | CONNECTOR-ORFS | |
| 25 | S037-124026 | BOLT-W/WASHER | |
| A | S621-011001 | O-RING | |
| B | S631-011001 | O-RING | |
| C | S631-014001 | O-RING | |
| D | S631-024004 | O-RING |
