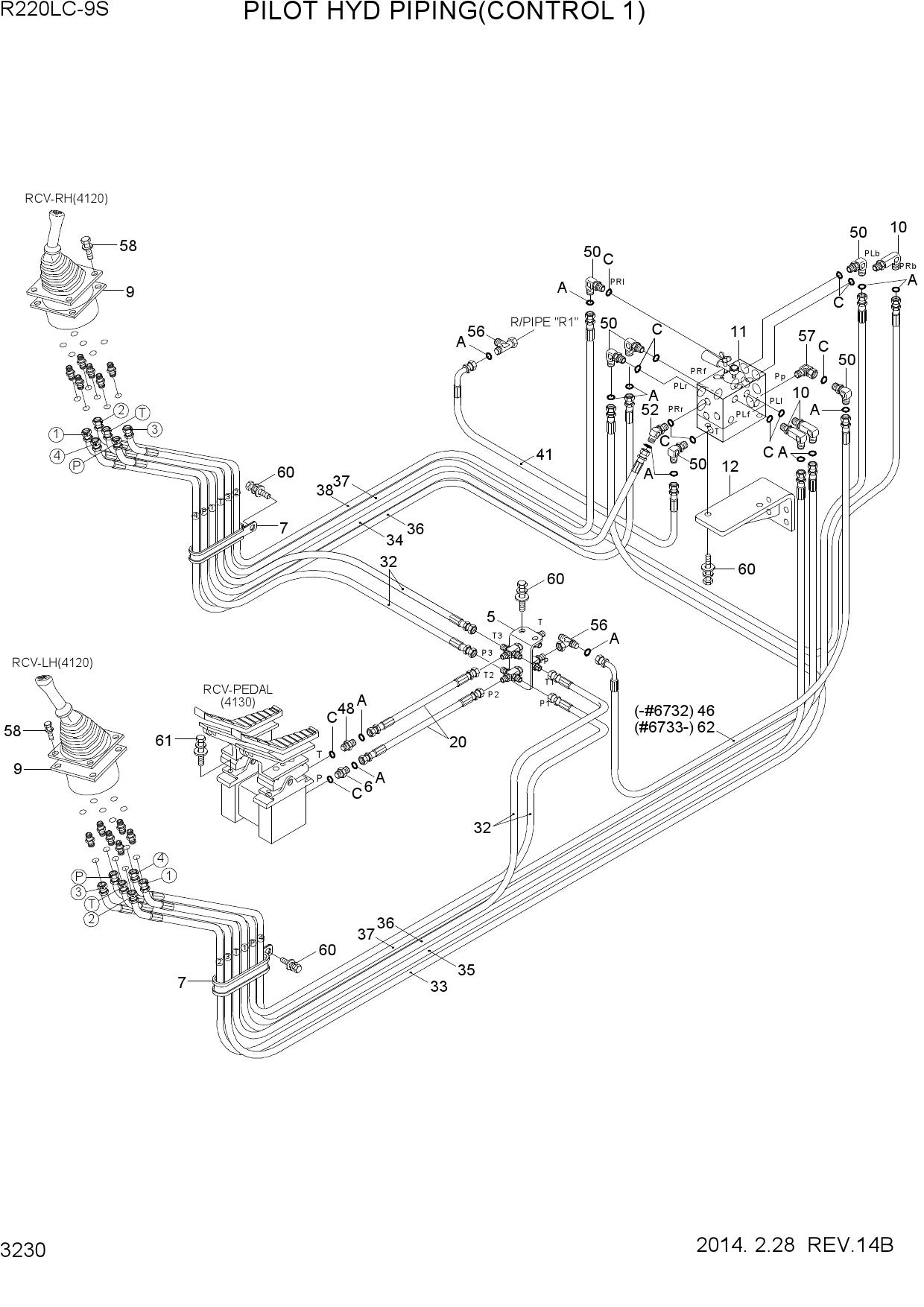

Запчасти для гусеничных экскаваторов Hyundai R220LC-9S PILOT HYD PIPING(CONTROL 1, #3529-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N6-25100 | CROSS ASSY | |
| 6 | 31N6-25060 | FILTER-LAST GUARD | |
| 7 | 31L7-10240 | CLAMP-TUBE INS | |
| 9 | 31M6-51061 | SHIM(3.2T) | |
| 10 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 11 | 31Q6-22000 | PATERN CHANGE VALVE | |
| 12 | 31Q6-26280 | BRACKET WA | |
| 20 | X400-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 32 | X410-042023 | HOSE ASSY-ORFS 0X45 | |
| 33 | X410-042039 | HOSE ASSY-SYNFLEX,ORFS | |
| 34 | X410-042041 | HOSE ASSY-ORFS 0X45 | |
| 35 | X410-042042 | HOSE ASSY-ORFS 0X45 | |
| 36 | X410-042043 | HOSE ASSY-ORFS 0X45 | |
| 37 | X410-042044 | HOSE ASSY-ORFS 0X45 | |
| 38 | X410-042046 | HOSE ASSY-ORFS 0X45 | |
| 41 | X420-042011 | HOSE ASSY-ORFS 0X90 | |
| 46 | X420-042024 | HOSE ASSY-SYNFLEX,ORFS | |
| 48 | X500-110001 | CONNECTOR-ORFS | |
| 50 | X520-110001 | ELBOW-90,ORFS | |
| 52 | X530-110001 | ELBOW-45,ORFS | |
| 56 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 57 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 58 | S035-063046 | BOLT-W/WASHER | |
| 60 | S037-102526 | BOLT-W/WASHER | |
| 61 | S037-103026 | BOLT-W/WASHER | |
| 62 | X420-042025 | HOSE ASSY-SYNFLEX,ORFS | |
| A | S621-011001 | O-RING | |
| C | S631-011004 | O-RING |
