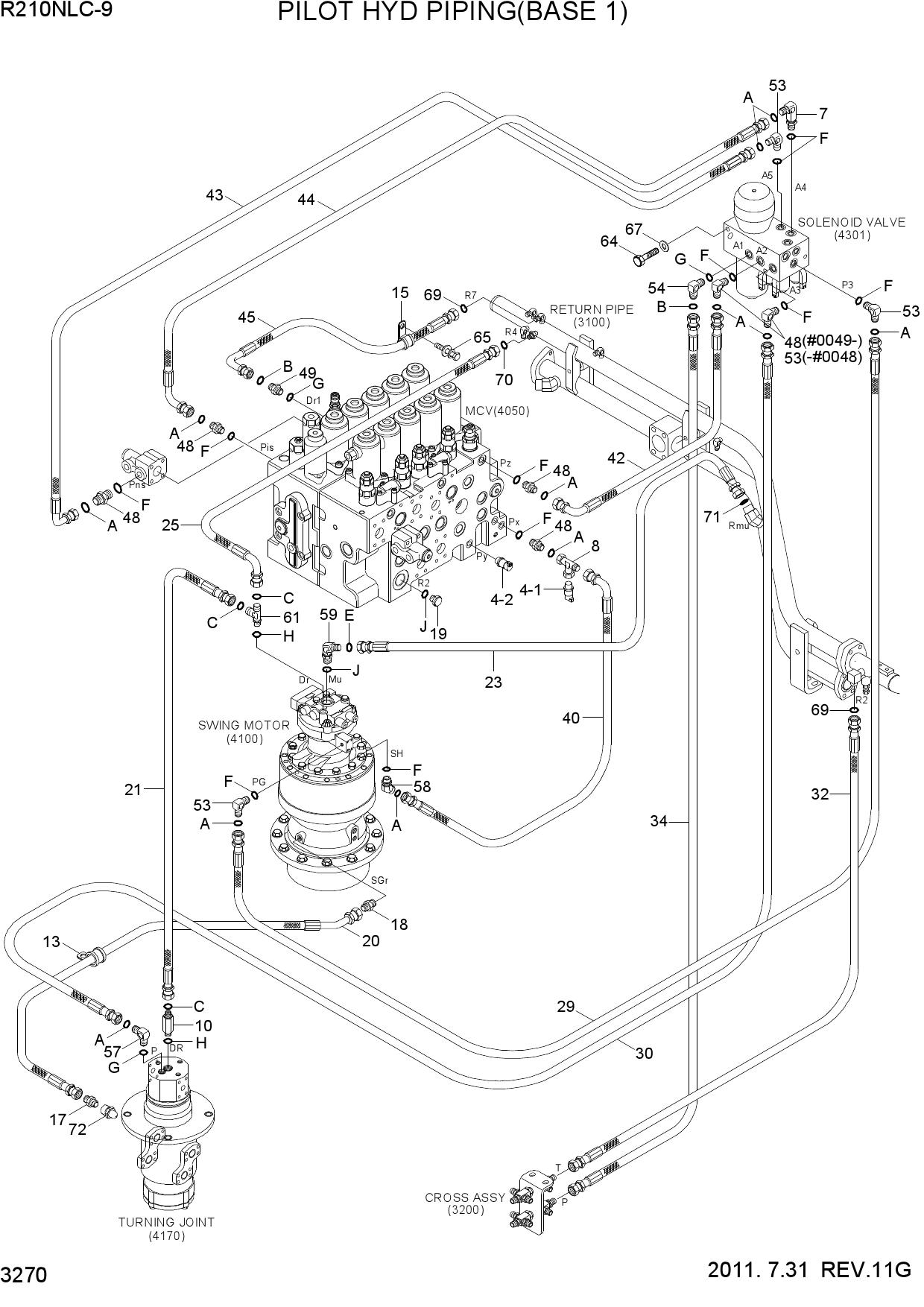

Запчасти для гусеничных экскаваторов Hyundai R210NLC-9 PILOT HYD PIPING(BASE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4-1 | 31Q8-40520 | PRESSURE SENSOR | |
| 4-1 | 31Q4-40620 | SENSOR-PRESSURE | |
| 4-1 | 31Q4-40830 | SENSOR-PRESSURE | |
| 4-2 | 31Q8-40520 | PRESSURE SENSOR | |
| 4-2 | 31Q4-40620 | SENSOR-PRESSURE | |
| 4-2 | 31Q4-40830 | SENSOR-PRESSURE | |
| 7 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 8 | 31N6-66060 | TEE-TEST | |
| 10 | 31N8-40190 | CONNECTOR-LONG,ORFS | |
| 13 | 31L7-10190 | CLAMP-TUBE | |
| 15 | 31L7-10240 | CLAMP-TUBE INS | |
| 17 | 31W5-70060 | CONNECTOR | |
| 18 | P010-430002 | CONNECTOR | |
| 19 | P220-110106 | PLUG-HEX,HEAD | |
| 20 | P850-042022 | HOSE ASSY-SYN 0X45 | |
| 21 | P910-082015 | HOSE ASSY-ORFS 0X0 | |
| 23 | P910-162018 | HOSE ASSY-ORFS 0X0 | |
| 25 | P930-082018 | HOSE ASSY-ORFS 0X90 | |
| 29 | X400-042048 | HOSE ASSY-SYNF ORFS | |
| 30 | X400-042058 | HOSE ASSY-SYNFLEX,ORFS | |
| 32 | X400-062025 | HOSE ASSY-SYNFLEX,ORFS | |
| 34 | X400-062064 | HOSE ASSY-SYNFLEX,ORFS | |
| 40 | X420-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 42 | X420-042041 | HOSE ASSY-SYNFLEX,ORFS | |
| 43 | X420-042043 | HOSE ASSY-ORFS 0X90 | |
| 44 | X420-042047 | HOSE ASSY-SYNFLEX,ORFS | |
| 45 | X420-062006 | HOSE ASSY-ORFS 0X90 | |
| 48 | X500-110001 | CONNECTOR-ORFS | |
| 48 | X500-110001 | CONNECTOR-ORFS | |
| 49 | X500-110002 | CONNECTOR-ORFS | |
| 53 | X520-110001 | ELBOW-90,ORFS | |
| 53 | X520-110002 | ELBOW-90,ORFS | |
| 54 | X520-110002 | ELBOW-90,ORFS | |
| 57 | X520-110012 | ELBOW-90,ORFS | |
| 58 | X530-110001 | ELBOW-45,ORFS | |
| 59 | X530-110005 | ELBOW-45,ORFS | |
| 61 | X820-085353 | TEE-R/TYPE,ORFS | |
| 64 | S017-101156 | BOLT-HEX | |
| 65 | S037-102026 | BOLT-W/WASHER | |
| 67 | S441-10000B | WASHER-HARDENED | |
| 69 | S621-012001 | O-RING | |
| 70 | S621-014001 | O-RING | |
| 71 | S621-021001 | O-RING | |
| 72 | S653-810002 | NIPPLE-GREASE | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S621-014001 | O-RING | |
| E | S621-021001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING | |
| H | S631-018004 | O-RING | |
| J | S631-029004 | O-RING |
