- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING(ADJUST BOOM)
- CONTROL VALVE(ADJUST BOOM)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- TRAVEL HYD PIPING(T/MOTOR TYPE 1)
- TRAVEL HYD PIPING(T/MOTOR TYPE 2)
- BOOM HYD PIPING(5.65M, STD)
- BOOM GREASE LUB SYSTEM(5.65M, STD)
- BOOM HYD PIPING(5.2M, SHORT)
- BOOM GREASE LUB SYSTEM(5.2M, SHORT)
- BOOM HYD PIPING(5.55M, OPT)
- BOOM GREASE LUB SYSTEM(5.55M, OPT)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM PIPING KIT-BREAKER(ADJUST BOOM)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE 1, -#0121)
- QUICK CLAMP(CLOSED TYPE 1, -#0121)
- QUICK CLAMP(HOOK TYPE 2, -#0121)
- QUICK CLAMP(CLOSED TYPE 2, -#0121)
- QUICK CLAMP(HOOK TYPE 1, #0122-)
- QUICK CLAMP(CLOSED TYPE 1, #0122-)
- QUICK CLAMP(HOOK TYPE 2, #0122-)
- QUICK CLAMP(CLOSED TYPE 2, #0122-)
- ARM HYD PIPING(2.92M)
- ARM HYD PIPING
- ARM SAFETY LOCK SYSTEM
- ARM SAFETY LOCK SYSTEM(ADJUST BOOM)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT 1
- DOUBLE ACTING MAIN PIPING KIT 2
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT

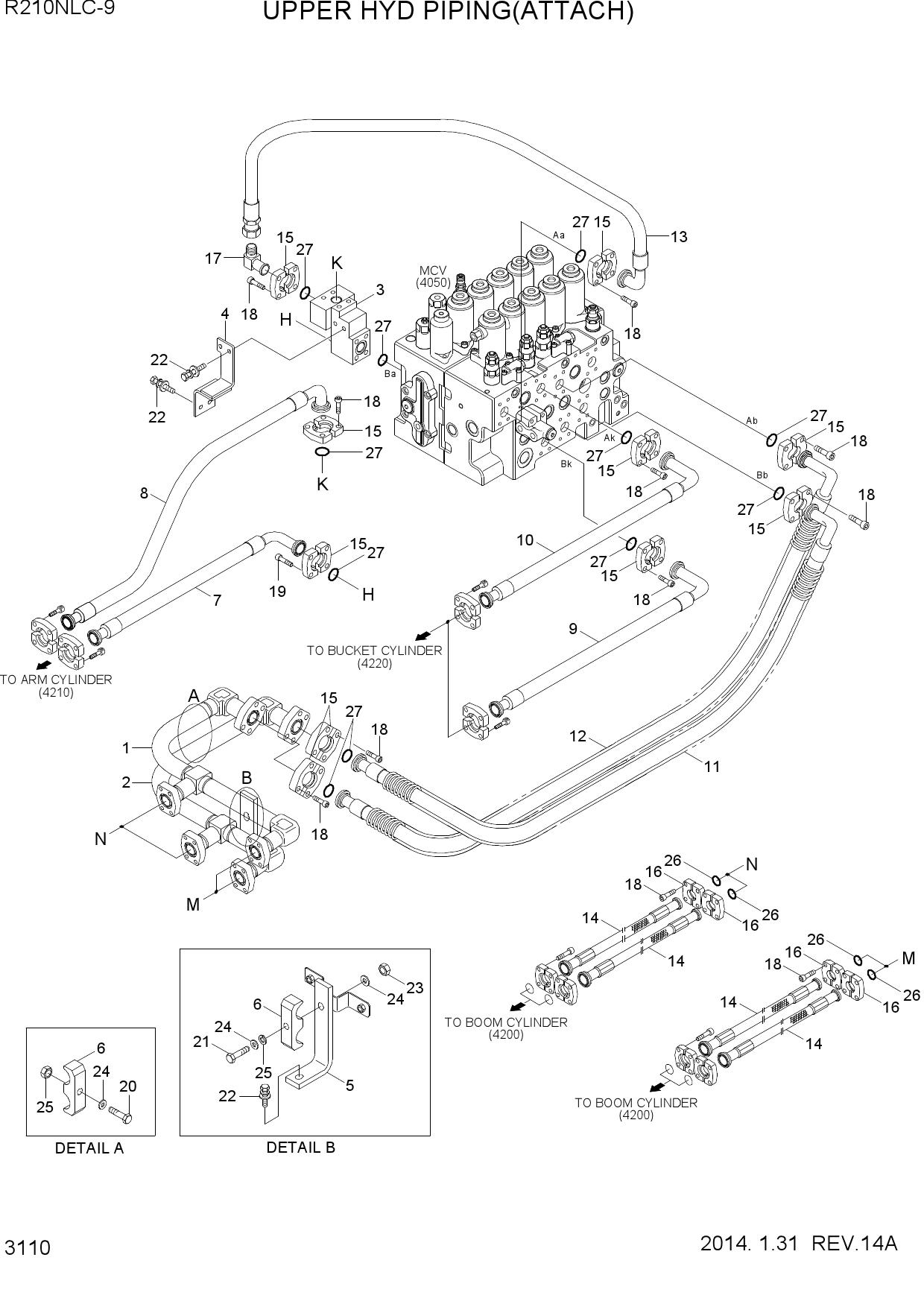

Запчасти для гусеничных экскаваторов Hyundai R210NLC-9 UPPER HYD PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q6-13440 | PIPE WA | |
| 1 | 31Q6-13441 | PIPE WA | |
| 2 | 31Q6-13450 | PIPE WA | |
| 2 | 31Q6-13451 | PIPE WA | |
| 3 | 31Q6-12401 | BLOCK | |
| 4 | 31Q6-12420 | BRACKET | |
| 5 | 31Q6-11322 | BRACKET WA | |
| 6 | 31Q6-11330 | CLAMP | |
| 7 | 31Q6-13321 | HOSE ASSY | |
| 7 | 31Q6-13322 | HOSE ASSY | |
| 7 | 31Q6-13550 | HOSE ASSY | |
| 7 | 31Q6-13551 | HOSE ASSY | |
| 8 | 31Q6-13330 | HOSE ASSY | |
| 8 | 31Q6-13331 | HOSE ASSY | |
| 8 | 31Q6-13560 | HOSE ASSY | |
| 8 | 31Q6-13561 | HOSE ASSY | |
| 9 | 31Q6-13400 | HOSE ASSY | |
| 9 | 31Q6-13401 | HOSE ASSY | |
| 9 | 31Q6-13570 | HOSE ASSY | |
| 9 | 31Q6-13571 | HOSE ASSY | |
| 10 | 31Q6-13410 | HOSE ASSY | |
| 10 | 31Q6-13411 | HOSE ASSY | |
| 10 | 31Q6-13580 | HOSE ASSY | |
| 10 | 31Q6-13581 | HOSE ASSY | |
| 11 | 31Q6-13480 | HOSE ASSY | |
| 11 | 31Q6-13481 | HOSE ASSY | |
| 12 | 31Q6-13490 | HOSE ASSY | |
| 12 | 31Q6-13491 | HOSE ASSY | |
| 13 | 31Q6-13380 | HOSE ASSY | |
| 14 | 31Q6-13390 | HOSE ASSY | |
| 14 | 31Q6-13391 | HOSE ASSY | |
| 14 | 31Q6-15910 | HOSE ASSY-FLG(HI-GRADE) | |
| 15 | P173-160104 | FLANGE-HYD,SPLIT | |
| 16 | P173-120102 | FLANGE-HYD,SPLIT | |
| 17 | 31NB-10380 | ELBOW-90,ORFS | |
| 18 | S109-100306 | BOLT-SOCKET | |
| 19 | S109-101006 | BOLT-SOCKET | |
| 20 | S017-120706 | BOLT-HEX | |
| 21 | S017-120956 | BOLT-HEX | |
| 22 | S037-123026 | BOLT-W/WASHER | |
| 23 | S205-12100B | NUT-HEX | |
| 24 | S403-12200B | WASHER-PLAIN | |
| 25 | S411-120006 | WASHER-SPRING | |
| 26 | Y171-019004 | O-RING | |
| 27 | Y171-024004 | O-RING |
