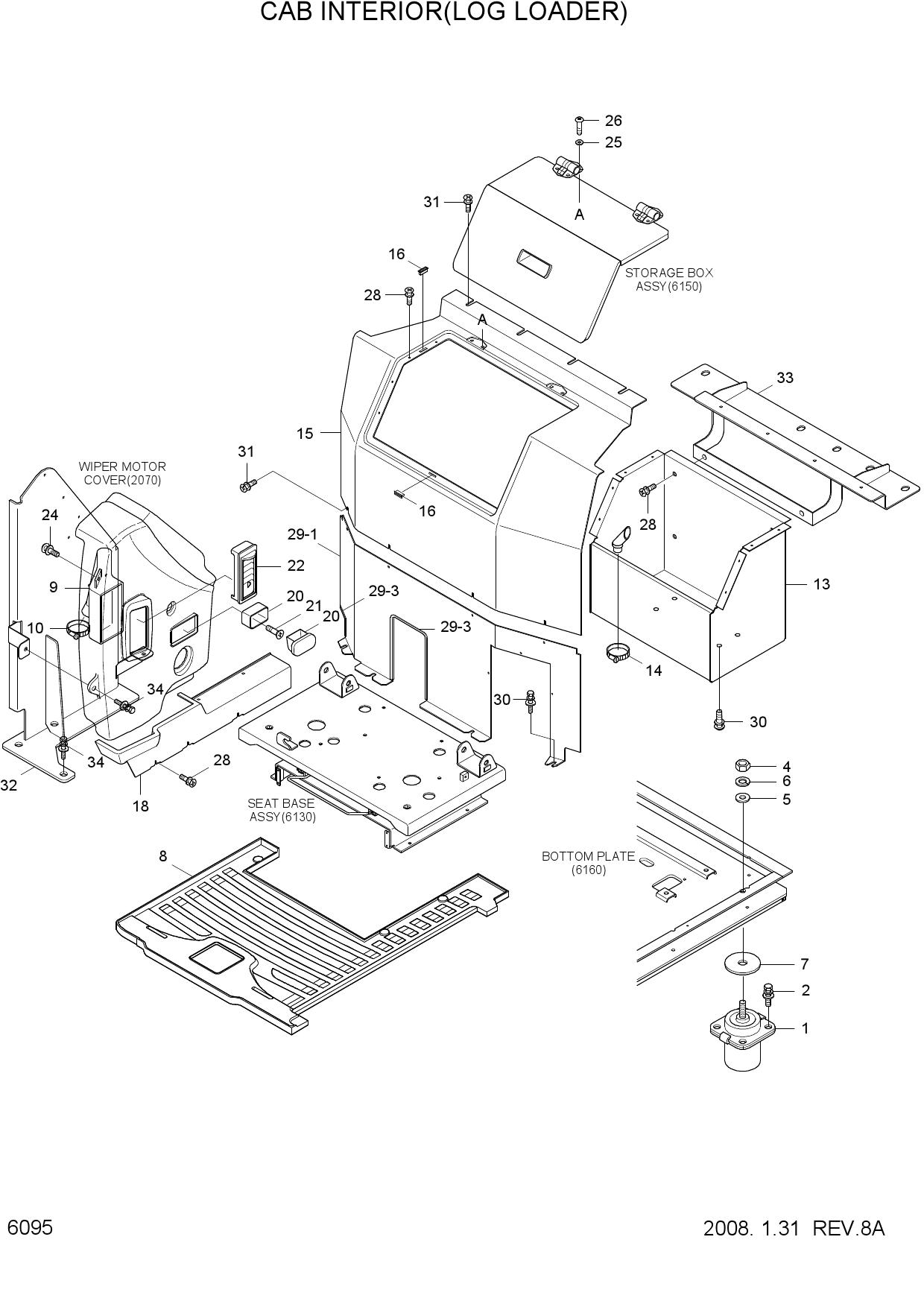

Запчасти для гусеничных экскаваторов Hyundai R210LC-7A CAB INTERIOR(LOG LOADER)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 71N6-10300 | VISCOUS MOUNT | |
| 2 | S037-103026 | BOLT-W/WASHER | |
| 4 | S205-16100B | NUT-HEX | |
| 5 | S403-162006 | WASHER-PLAIN | |
| 6 | S411-160006 | WASHER-SPRING | |
| 7 | 71E9-10650 | WASHER-REBOUND | |
| 8 | 71N6-10141 | MAT-FLOOR | |
| 8 | 71N6-10280 | MAT-FLOOR | |
| 8 | 71N6-10290 | MAT-FLOOR | |
| 9 | 71N6-20221 | DUCT-DEFROSTER | |
| 10 | S520-055000 | CLAMP-HOSE | |
| 13 | 71N6-20470 | STORAGE BOX ASSY | |
| 14 | 71N6-20370 | CLIP-HOSE | |
| 15 | 71N6-20311 | AIRCON COVER-UP | |
| 16 | 71N6-20390 | MAGNETIC | |
| 18 | 71N6-20331 | COVER-DEF,HOSE | |
| 20 | E171-1176 | ASHTRAY | |
| 21 | S141-040166 | SCREW-FLAT HD | |
| 22 | 71N6-20380 | AIR NOZZLE | |
| 24 | S131-040826 | SCREW-W/WASHER | |
| 25 | S403-05200B | WASHER-PLAIN | |
| 26 | S151-050206 | SCREW-TAPPING | |
| 28 | S132-061676 | SCREW-W/WASHER | |
| 29 | 71N6-20292 | AIRCON COVER-LOW | |
| 29-1 | 71N6-21760 | PLATE | |
| 29-2 | S241-060000 | NUT-WELD | |
| 29-3 | S791-016054 | GROMMET-PLATE | |
| N29-4 | S791-016010 | GROMMET-PLATE | |
| 30 | S037-102026 | BOLT-W/WASHER | |
| 31 | S132-062076 | SCREW-W/WASHER | |
| 32 | 71N6-30800 | SEAT ASSY | |
| 32 | 71N6-20510 | CLUSTER SUPPORT W.A. | |
| 33 | 71N6-20570 | A/C COVER SUPPORT W.A. | |
| 34 | S037-122526 | BOLT-W/WASHER |
