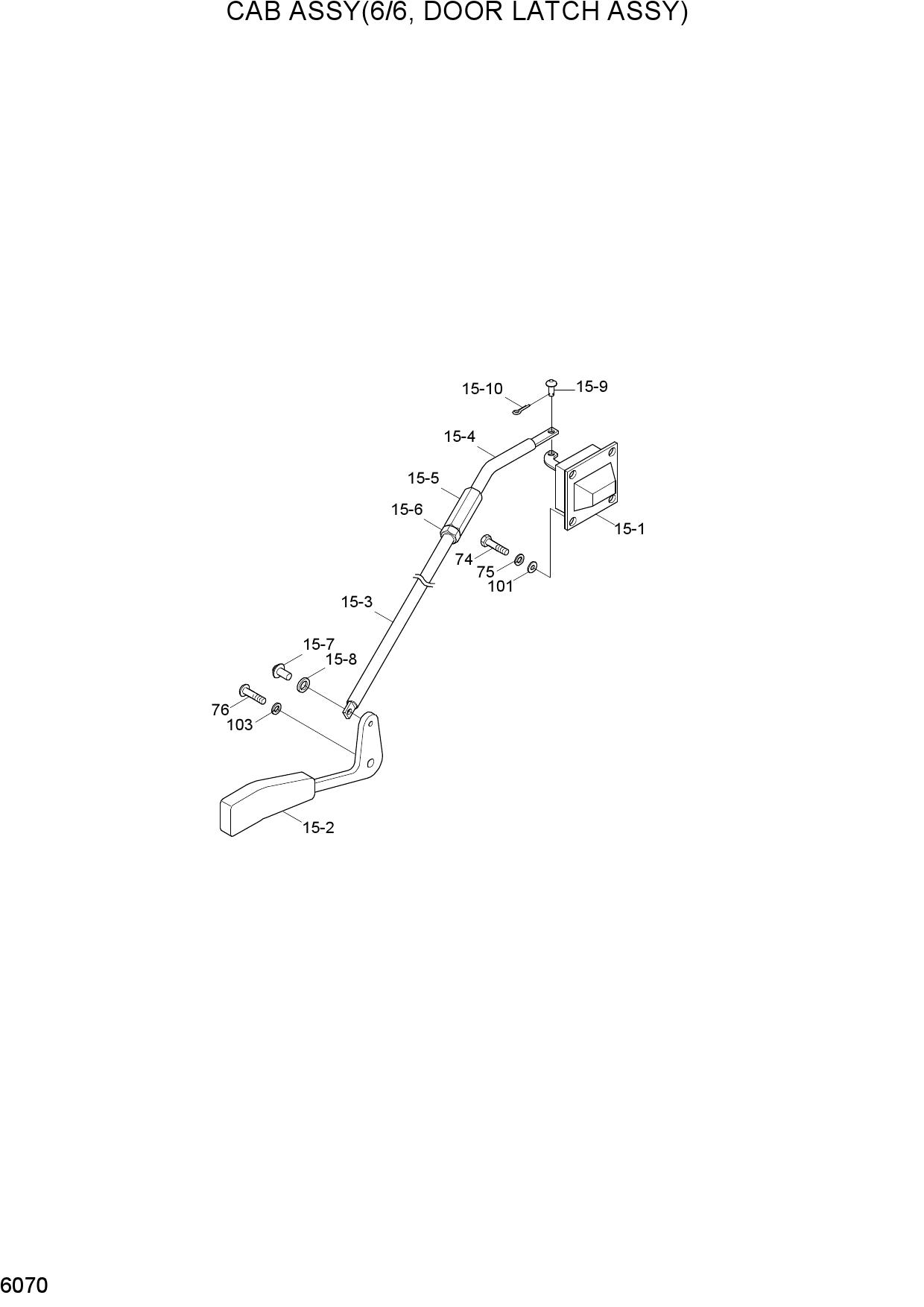

Запчасти для гусеничных экскаваторов Hyundai R210LC-7A CAB ASSY(6/6, DOOR LATCH ASSY)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 15 | 71N6-02781 | LATCH ASSY-BACK | |
| 15-1 | 71EH-11260 | LOCK ASSY-LH | |
| 15-2 | 71N6-03571 | LEVER ASSY | |
| 15-3 | 71N6-03580 | ROD | |
| 15-4 | 71N6-03590 | ROD | |
| 15-5 | 71EH-11210 | NUT | |
| 15-6 | S205-08100B | NUT-HEX | |
| 15-7 | 71EH-11250 | PIN-ROUND | |
| 15-8 | S431-040002 | WASHER-LOCK | |
| 15-9 | 71EH-11240 | PIN-ROUND | |
| 15-10 | S461-050152 | PIN-SPLIT | |
| 74 | S015-080206 | BOLT-HEX | |
| 75 | S411-080006 | WASHER-SPRING | |
| 76 | S151-060206 | SCREW-TAPPING | |
| 101 | S403-08200B | WASHER-PLAIN | |
| 103 | S411-060006 | WASHER-SPRING |
