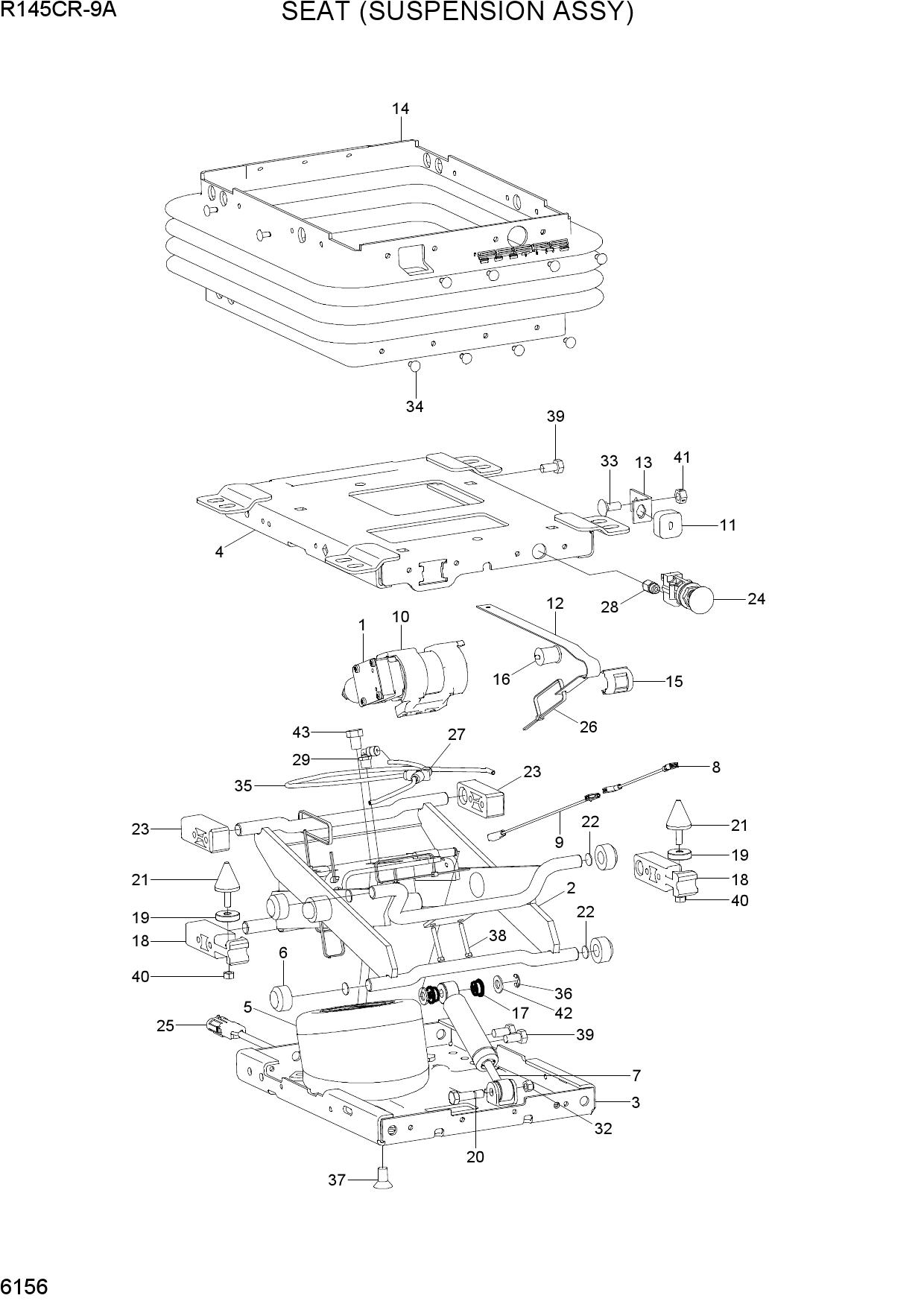

Запчасти для гусеничных экскаваторов Hyundai R145CR-9A SEAT (SUSPENSION ASSY)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | SA34433 | VENTREX ASSY | |
| 2 | SA21887 | SCISSORS-COMPACT | |
| 3 | SA21670 | HOUSING-LOWER | |
| 4 | SA21568 | HOUSING-UPPER | |
| 5 | S9383 | AIR SPRING | |
| 6 | S8946 | ROLLER | |
| 7 | S33554 | DAMPER-MONOTUBE | |
| 8 | S30461-AF | HARNESS-WIRE | |
| 9 | S30461-AE | HARNESS-WIRE | |
| 10 | S29667 | CLAMP-COMPRESSOR | |
| 11 | S2546 | BUMPER | |
| 12 | S22125 | TAPE-ADJUST, WEIGHT | |
| 13 | S21971 | BRACKET-UPSTOP | |
| 14 | S21125 | BOOT-SUSP | |
| 15 | S21047 | GUIDE-WEIGHT TAPE | |
| 16 | S21046 | ROLLER-WEIGHT TAPE | |
| 17 | S21033 | BUSHING-SHOCK | |
| 18 | S19959 | BLOCK-SCISSORS PIVOT | |
| 19 | S19941 | SPACER-BUMPER | |
| 20 | S19485 | BOLT-SHOCK MOUNT | |
| 21 | S15640 | BUMPER-DOWNSTOP | |
| 22 | S15293 | SPACER | |
| 23 | S14607 | BLOCK-SHAFT | |
| 24 | S14268 | VALVE-AIR CONTROL | |
| 25 | S12843 | HARNESS-WIRE | |
| 26 | 79S0101 | TIE-CABLE | |
| 27 | 64S0188S | FITTING-T | |
| 28 | 64S0177 | CONNECTOR-MALE | |
| 29 | 64S0176S | ELBOW-MALE | |
| 32 | 45S0138 | LOCK NUT-NYLON | |
| 33 | 41S0108 | BOLT-CARRIAGE | |
| 34 | 33S0129 | XMAS TREE CLIP | |
| 35 | 28SM0107 | TUBING-NYLON | |
| 36 | 26S0112 | RETAINING RING | |
| 37 | 18S0103 | SCREW | |
| 38 | 16S0142 | FLANGE | |
| 39 | 16S0132 | BOLT | |
| 40 | 11S0128 | NUT | |
| 41 | 07S0102 | NUT,CENTERLOCK 5/16-18UNC | |
| 42 | 06S0133 | Deleted | |
| 43 | 05S0127 | BOLT-HEX |
