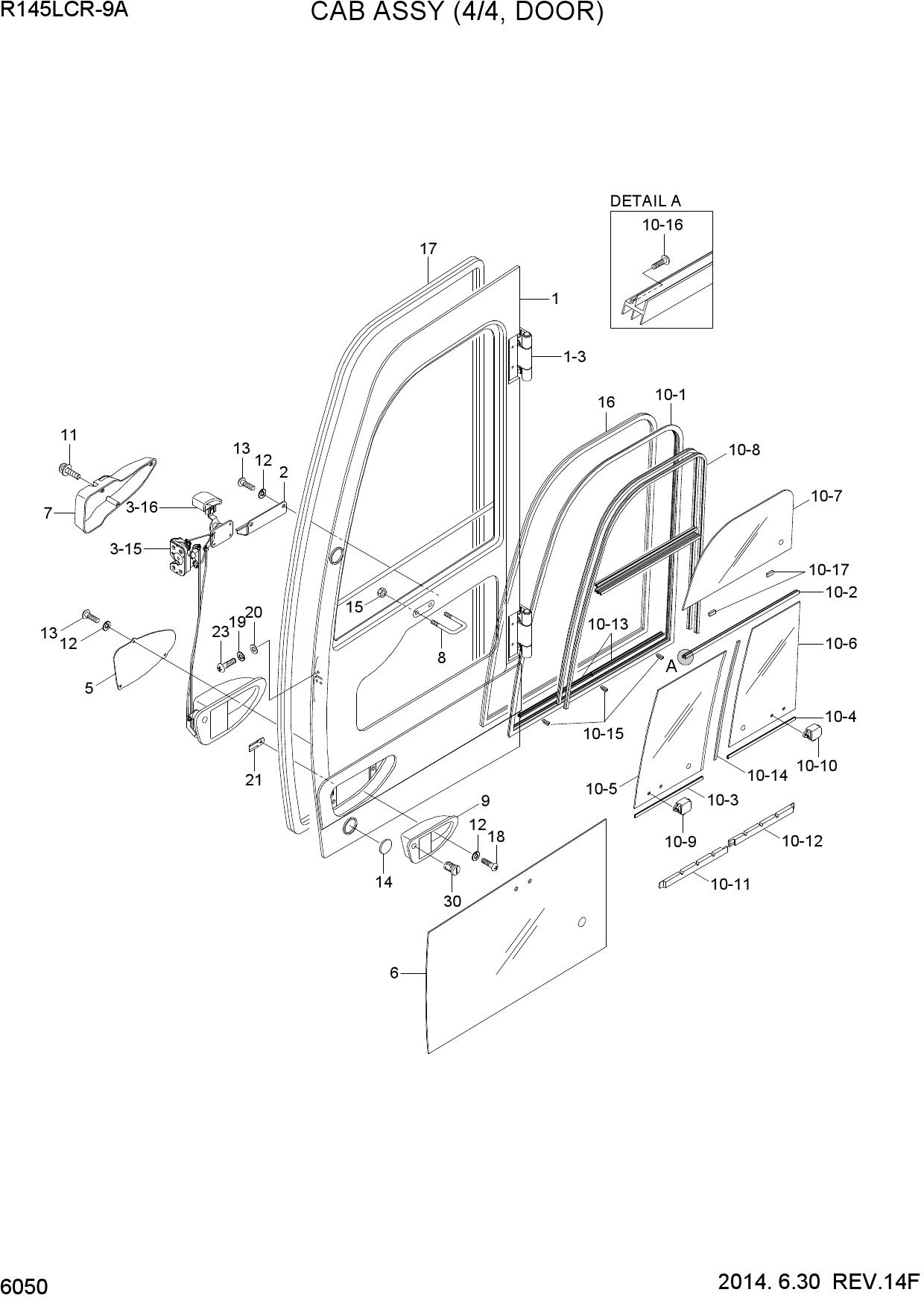

Запчасти для гусеничных экскаваторов Hyundai R145CR-9A CAB ASSY(4/4, DOOR)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-1 | 75Q4-02001 | SIDE DOOR ASSY | |
| 1 | 75Q4-02011 | SIDE DOOR WA | |
| 1-3 | 71Q6-02102 | HINGE | |
| 2 | 75Q4-02020 | COVER | |
| 3 | 72Q6-02121 | HANDLE ASSY | |
| 3-15 | 72Q6-02131 | LATCH ASSY-INNER | |
| 3-16 | 72Q6-02140 | LEVER ASSY | |
| 5 | 71Q6-02061 | COVER | |
| 6 | 75Q4-02031 | GLASS-LH,SIDE DOOR | |
| 7 | 71Q6-02140 | COVER | |
| 8 | 75Q4-02041 | STRIKER | |
| 9 | 72Q6-02110 | HANDLE-OUTER | |
| 10 | 75Q4-02210 | SASH ASSY-DOOR | |
| 10-1 | 75Q4-02220 | FRAME | |
| 10-2 | 75Q4-02230 | FRAME-MIDDLE | |
| 10-3 | 75Q4-02240 | RAIL-FRONT | |
| 10-4 | 75Q4-02250 | RAIL-REAR | |
| 10-5 | 75Q4-02260 | GLASS-FRONT | |
| 10-6 | 75Q4-02270 | GLASS-REAR | |
| 10-7 | 75Q4-02280 | GLASS-UPPER | |
| 10-8 | 75Q4-02290 | SEAL | |
| 10-9 | 71Q6-03350 | CATCH | |
| 10-9 | 71Q6-03351 | CATCH-REAR | |
| 10-10 | 71Q6-03310 | LOCK ASSY | |
| 10-10 | 71Q6-03311 | CATCH-FRONT | |
| 10-11 | 75Q4-02410 | LOCK-HOOK, FRONT | |
| 10-12 | 75Q4-02420 | LOCK-HOOK, REAR | |
| 10-13 | 71Q6-03290 | RAIL | |
| 10-14 | 75Q4-02430 | MOHAIR-CENTER | |
| 10-15 | 71Q6-03360 | RUBBER | |
| 10-16 | S151-040166 | SCREW-TAPPING | |
| 10-17 | 75Q4-02440 | STOPPER | |
| 11 | S131-043046 | SCREW-W/WASHER | |
| 12 | S411-050006 | WASHER-SPRING | |
| 13 | S161-050156 | SCREW-CROSS R/ROUND | |
| 14 | 17E1-5146 | BUMPER-DOOR | |
| 15 | S203-101006 | NUT-HEX | |
| 16 | S778-018700 | STRIP-WEATHER | |
| 17 | S776-043900 | STRIP-WEATHER | |
| 18 | S161-050156 | SCREW-CROSS R/ROUND | |
| 19 | S411-060006 | WASHER-SPRING | |
| 20 | S403-06200B | WASHER-PLAIN | |
| 21 | 71Q6-00590 | PLATE-ASSIT | |
| 23 | S161-060256 | SCREW-CROSS R/ROUND |
