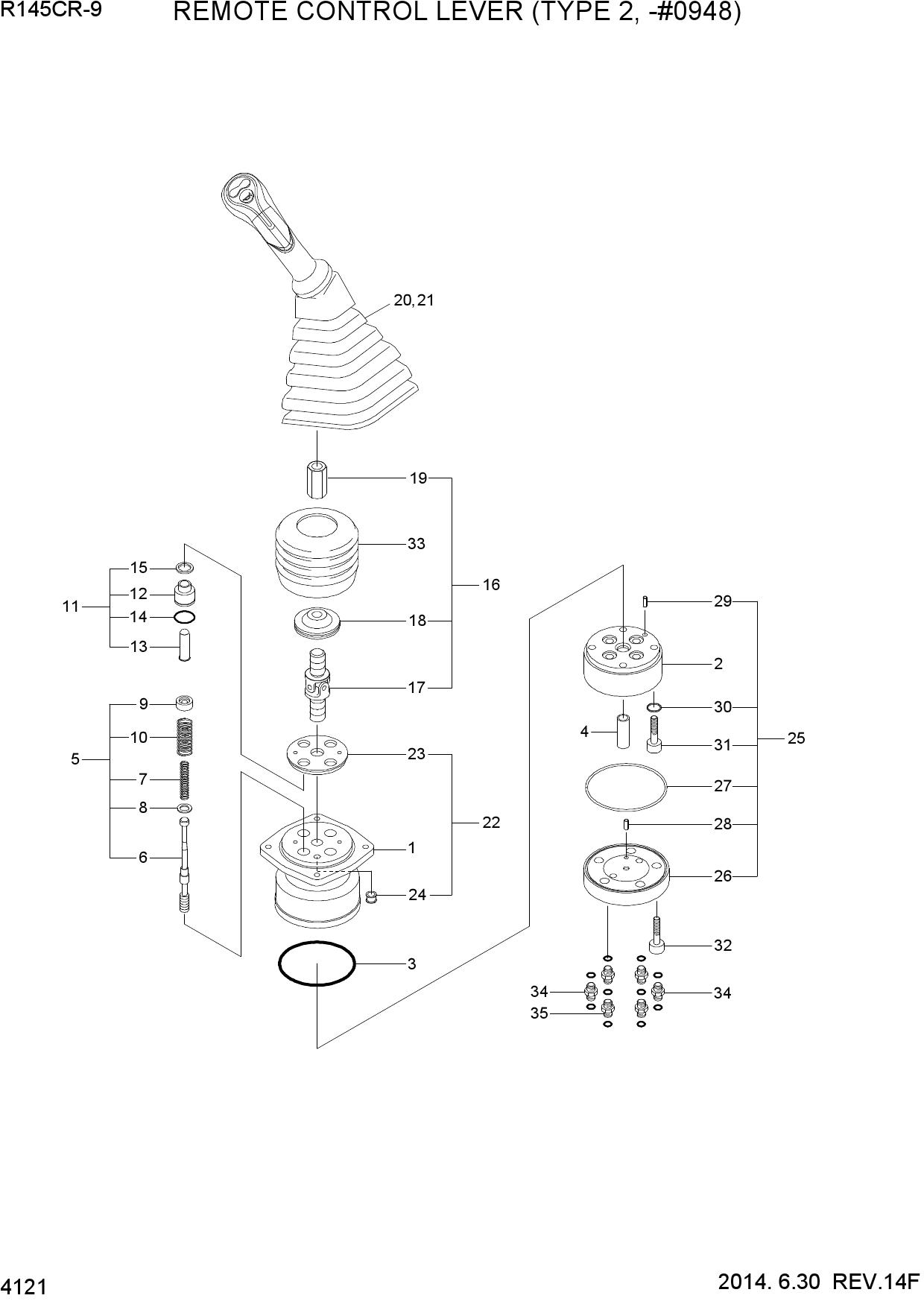

Запчасти для гусеничных экскаваторов Hyundai R145CR-9 REMOTE CONTROL LEVER (TYPE 2, -#0948)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31Q6-20055 | RCV LEVER ASSY-LH | |
| * | 31Q6-20065 | RCV LEVER ASSY-RH | |
| *-1 | 31Q6-21055 | RCV LEVER SUB-LH | |
| *-1 | 31Q6-21065 | RCV LEVER SUB-RH | |
| 1 | XKDB-00028 | HOUSING | |
| 2 | XKDB-00027 | CASE | |
| 3 | XKDB-00026 | O-RING | |
| 4 | XKDB-00011 | BUSHING | |
| 5 | XKDB-00046 | SPOOL ASSY | |
| 6 | XKDB-00024 | SPOOL | |
| 7 | XKDB-00022 | SPRING | |
| 8 | XKDB-00025 | WASHER | |
| 9 | XKDB-00021 | SEAT-SPRING | |
| 10 | XKDB-00023 | SPRING | |
| 11 | XKDB-00037 | PLUG ASSY | |
| 12 | XKDB-00020 | PLUG | |
| 13 | XKDB-00019 | ROD-PUSH | |
| 14 | XKDB-00012 | O-RING | |
| 15 | XKDB-00014 | U-PACKING | |
| 16 | XKDB-00038 | JOINT SUB ASSY | |
| 17 | XKDB-00018 | JOINT | |
| 18 | XKDB-00017 | DISK | |
| 19 | XKDB-00016 | NUT-ADJUST | |
| 20 | XKDB-00015 | HANDLE SUB-LH | |
| 21 | XKDB-00039 | HANDLE SUB-RH | |
| 22 | XKDB-00040 | PLATE ASSY | |
| 23 | XKDB-00013 | PLATE | |
| 24 | XKDB-00009 | BUSHING | |
| 25 | XKDB-00041 | PLATE ASY-PORT | |
| 26 | XKDB-00029 | PLATE-PORT | |
| 27 | XKDB-00010 | O-RING | |
| 28 | XKDB-00003 | PIN-SPING | |
| 29 | XKDB-00006 | PIN | |
| 30 | XKDB-00005 | WASHER-SEAL | |
| 31 | XKDB-00004 | BOLT | |
| 32 | XKDB-00004 | BOLT | |
| 33 | XKDB-00001 | BOOT | |
| 34 | XKDB-00045 | CONNECTOR-ORFS | |
| 35 | XKDB-00044 | FILTER-LAST GUARD |
