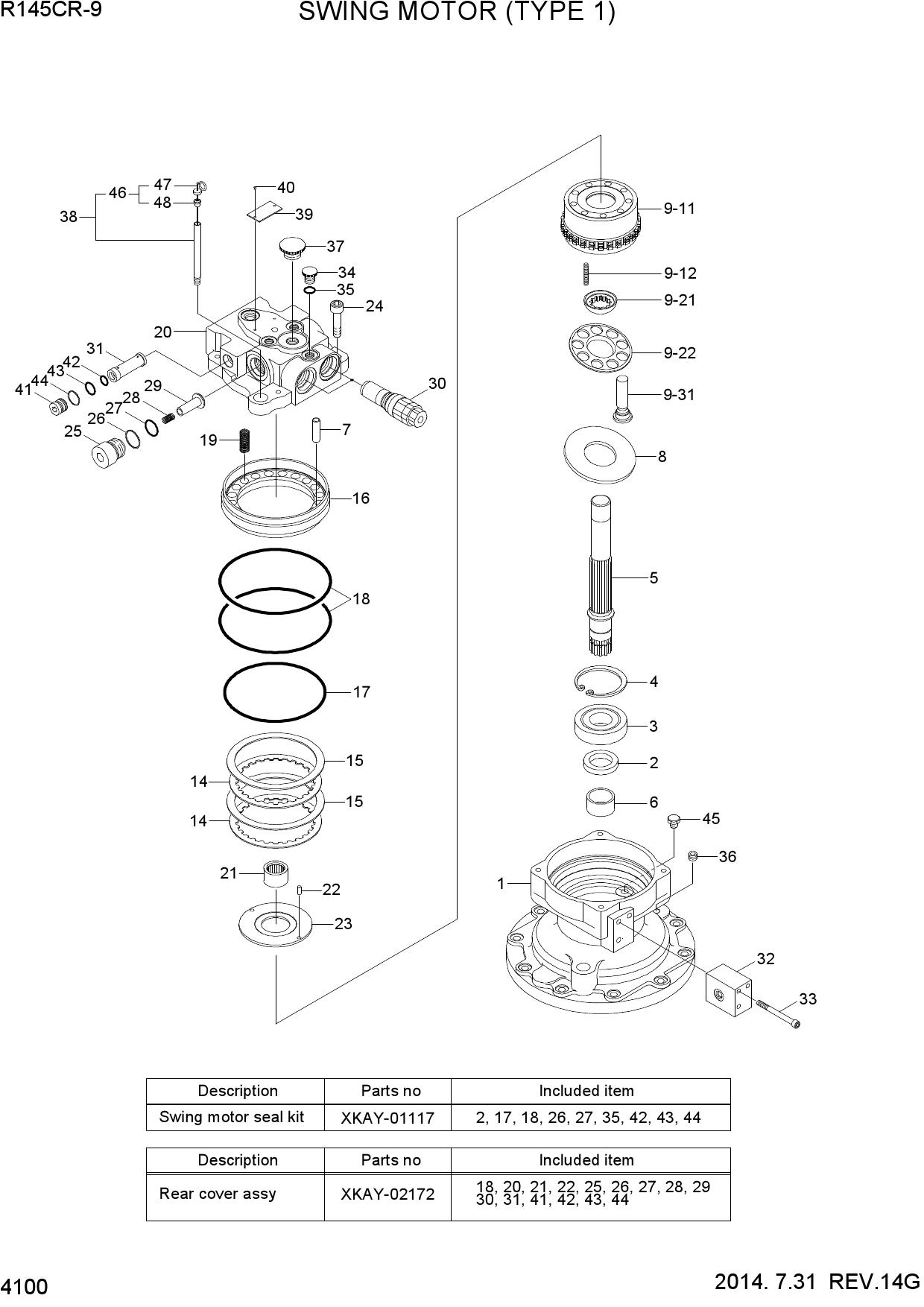

Запчасти для гусеничных экскаваторов Hyundai R145CR-9 SWING MOTOR(TYPE 1)

№	Номер	Описание
N*-1	31Q4-11130	SWING MOTOR UNIT
*-1	31Q4-11131	SWING MOTOR UNIT
*-1	31Q4-11131	SWING MOTOR UNIT
*-1	31Q4-11131AR	SWING MOTOR
1	XKAY-02199	BODY
1	XKAY-01099	BODY
1	XKAY-02199	BODY
K2	XKAY-00281	SEAL-OIL
3	XKAY-00282	BEARING-ROLLER
4	XKAY-00283	RING-SNAP
5	XKAY-01100	SHAFT
6	XKAY-00285	BUSHING
7	XKAY-00625	PIN
9	XKAY-02003	ROTARY KIT
9	XKAY-02004	ROTARY KIT
8	XKAY-01101	PLATE-SHOE
9-1	XKAY-02005	BLOCK KIT-CYLINDER
9-1	XKAY-02006	BLOCK KIT-CYLINDER
9	XKAY-01102	ROTARY KIT
N9-11	XKAY-02007	BLOCK-CYLINDER
N9-11	XKAY-02008	BLOCK-CYLINDER
9	XKAY-02003	ROTARY KIT
9-12	XKAY-02010	SPRING
9	XKAY-02004	ROTARY KIT
9-1	XKAY-01103	BLOCK KIT-CYLINDER
9-1	XKAY-02005	BLOCK KIT-CYLINDER
9-1	XKAY-02006	BLOCK KIT-CYLINDER
N9-11	XKAY-01104	BLOCK-CYLINDER
N9-11	XKAY-02007	BLOCK-CYLINDER
N9-11	XKAY-02008	BLOCK-CYLINDER
N9-12	XKAY-00291	SPRING
N9-12	XKAY-02010	SPRING
N23	XKAY-01114	PLATE-VALVE
N23	XKAY-02009	PLATE-VALVE
9-2	XKAY-01105	RETAINER KIT
20	XKAY-02011	COVER-REAR
N9-21	XKAY-01584	GUIDE-BALL
N9-22	XKAY-01106	PLATE-SET
9-3	XKAY-01107	PISTON KIT
23	XKAY-02009	PLATE-VALVE
N9-31	XKAY-01108	PISTON ASSY
14	XKAY-01109	PLATE-FRICTION
15	XKAY-01110	PLATE
16	XKAY-01111	PISTON-BRAKE
K17	XKAY-00301	O-RING
K18	XKAY-01112	O-RING
19	XKAY-01585	SPRING
20	XKAY-01113	COVER-REAR
20	XKAY-02011	COVER-REAR
21	XKAY-00304	BEARING-NEEDLE
22	XKAY-00562	PIN
24	XKAY-00308	BOLT-WRENCH
25	XKAY-02200	PLUG
K26	XKAY-00141	RING-BACK UP
K27	XKAY-00310	O-RING
46	XKAY-02203	LEVEL GAUGE KIT
47	XKAY-02194	BAR-LEVEL
48	XKAY-01985	PLUG
28	XKAY-02201	SPRING
39	XKAY-02000	NAME PLATE
29	XKAY-02202	CHECK
30	XKAY-02001	RELIEF VALVE ASSY
31	XKAY-00314	VLV ASSY-REACTIONLESS
32	XKAY-01470	VALVE ASSY-TIME DELAY
33	XKAY-00692	BOLT-WRENCH
34	XKAY-00150	PLUG
K35	XKAY-00256	O-RING
36	XKAY-00140	PLUG
37	XKAY-00317	PLUG
38	XKAY-02012	LEVEL GAUGE ASSY
46	XKAY-02203	LEVEL GAUGE KIT
47	XKAY-02194	BAR-LEVEL
48	XKAY-01985	PLUG
39	XKAY-01116	NAME PLATE
39	XKAY-02000	NAME PLATE
40	XKAY-00277	RIVET
41	XKAY-00322	PLUG
K42	XKAY-00324	O-RING
K43	XKAY-00247	O-RING
K44	XKAY-00605	RING-BACK UP
45	XKAY-00137	PLUG
49	XKAY-02172	REAR COVER ASSY
K	XKAY-01117	SEAL KIT
K	XKAY-01117	SEAL KIT

Для поиска необходимых позиций выберите нужный раздел каталога запасных частей Hyundai Чтобы купить запчасти для R145CR-9 в компании ООО «ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или отправьте сообщение через форму запроса в ближайший к вам филиал.
