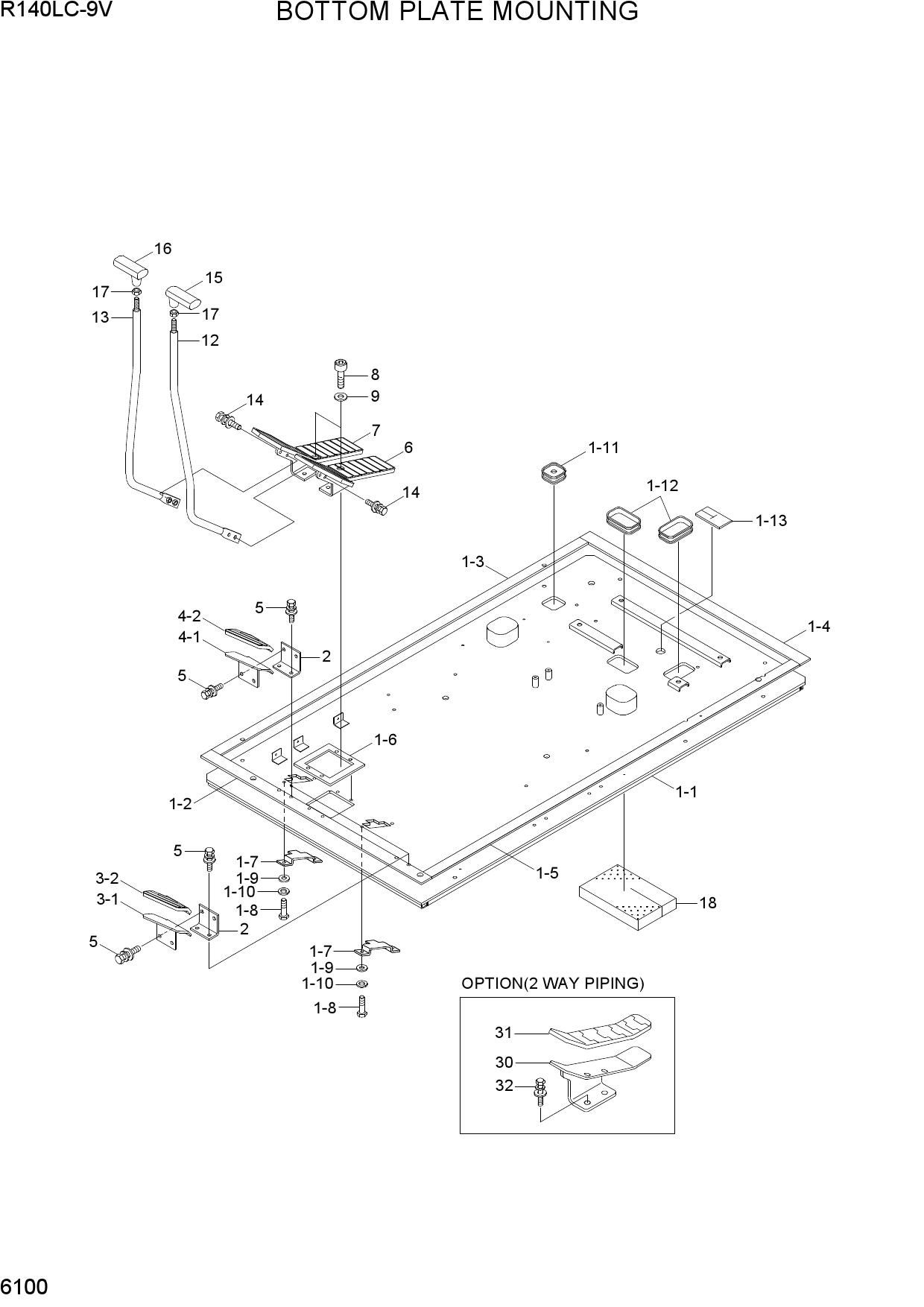

Запчасти для гусеничных экскаваторов Hyundai R140LC-9V(INDIA) BOTTOM PLATE MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 74N6-10100 | BOTTOM PLATE ASSY | |
| 1 | 74N6-10200 | BOTTOM PLATE ASSY | |
| 1-1 | 74N6-10110 | BOTTOM PLATE WA | |
| 1-1 | 74N6-10210 | BOTTOM PLATE WA | |
| 1-2 | 71N6-11100 | PAD-RUBBER | |
| 1-3 | 71N6-11110 | PAD-RUBBER | |
| 1-4 | 71N6-11120 | PAD-RUBBER | |
| 1-5 | 71N6-11130 | PAD-RUBBER | |
| 1-6 | 71N6-11140 | PAD-RUBBER | |
| 1-7 | 71E9-10661 | COVER | |
| 1-8 | S017-100156 | BOLT-HEX | |
| 1-9 | S403-10200B | WASHER-PLAIN | |
| 1-10 | S411-100006 | WASHER-SPRING | |
| 1-11 | 71E9-10630 | GROMMET | |
| 1-12 | 71E9-10640 | GROMMET | |
| 1-13 | 71N4-10940 | PAD-TRAVEL LINK | |
| 2 | 71N6-DA0080 | BRACKET-FOOT REST | |
| 2 | 71N6-10130 | BRACKET-FOOT REST | |
| 3 | 71N6-DA0070 | FOOT REST ASSY-LH | |
| 3 | 71N6-10310 | FOOT REST ASSY-LH | |
| 3-1 | 71N6-10161 | RUBBER-FOOT REST | |
| 3-2 | 71N6-10150 | BRACKET-FOOT REST | |
| 4 | 71N6-10320 | FOOT REST ASSY-RH | |
| 4-1 | 71N6-10181 | RUBBER-FOOT REST | |
| 4-2 | 71N6-10170 | BRACKET-FOOT REST | |
| 5 | S037-102526 | BOLT-W/WASHER | |
| 5 | S037-102526 | BOLT-W/WASHER | |
| 6 | 71N6-DA0120 | BRACKER-PEDAL,LH | |
| 7 | 71N6-DA0130 | BRACKET-PEDAL,RH | |
| 8 | S109-100206 | BOLT-SOCKET | |
| 9 | S403-10200B | WASHER-PLAIN | |
| 12 | 71N6-10230 | LEVER-TRAVEL | |
| 13 | 71N6-10240 | LEVER-TRAVEL | |
| 14 | S037-103026 | BOLT-W/WASHER | |
| 15 | 71N6-10251 | KNOB-LEVER | |
| 16 | 71N6-10261 | KNOB-LEVER | |
| 17 | S206-10100B | NUT-HEX | |
| 18 | 71N4-10970 | SPONGE-INSULATION | |
| 30 | 71Q6-22700 | PEDAL WA-RH | |
| 31 | 71Q6-22740 | RUBBER-PEDAL | |
| 32 | S037-102026 | BOLT-W/WASHER |
