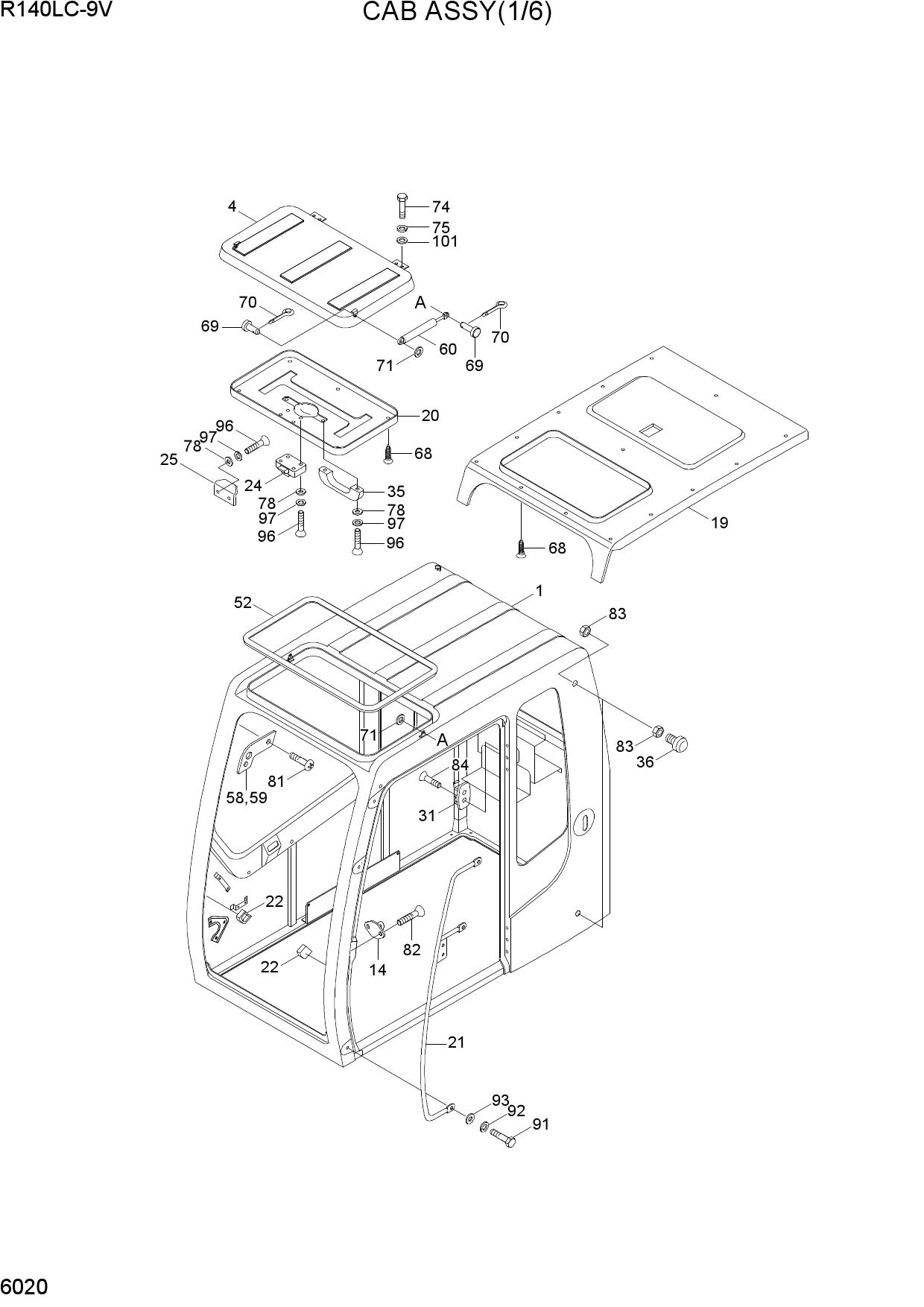

Запчасти для гусеничных экскаваторов Hyundai R140LC-9V(INDIA) CAB ASSY(1/6)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 77Q4-10000 | CABIN ASSY | |
| 1 | 77Q4-00010 | CABIN WA | |
| 4 | 71N6-02400BG | SUN ROOF WA | |
| 14 | 71N6-02770 | STRIKER | |
| 19 | 71N6-02810 | LINING(1)-HEAD | |
| 20 | 71N6-02820 | LINING(2)-HEAD | |
| 21 | 71N6-02831BG | RAIL-HAND | |
| N22 | 71N6-02841 | STOPPER | |
| 24 | 71N6-02860 | LATCH-ROOF | |
| 25 | 71N6-02870 | BRACKET-ROOF | |
| 31 | 71N6-02920 | HOOK-COAT | |
| 35 | E171-1147 | HANDLE | |
| 36 | 71EH-13150 | BUMPER-RUBBER | |
| 52 | S772-020300 | WEATHER STRIP | |
| 58 | 71N6-03181 | STOPPER-LH | |
| 59 | 71N6-03191 | STOPPER-RH | |
| 60 | 71N6-03202 | SPRING-GAS | |
| 68 | E171-1310 | PLUG-HEADLINER | |
| 69 | 71Q6-03160 | PIN-CLEVIS | |
| 70 | S501-070006 | PIN-SELF LOCKING | |
| 71 | S403-082006 | WASHER-PLAIN | |
| 74 | S015-080206 | BOLT-HEX | |
| 75 | S411-080006 | WASHER-SPRING | |
| 78 | S403-052006 | WASHER-PLAIN | |
| 81 | S141-060206 | SCREW-FLAT HD | |
| 82 | S145-080166 | SCREW-FLAT HD | |
| 83 | S203-101006 | NUT-HEX | |
| 84 | S141-040206 | SCREW-FLAT HD | |
| 91 | S017-160206 | BOLT-HEX | |
| 92 | S411-160006 | WASHER-SPRING | |
| 93 | S403-162006 | WASHER-PLAIN | |
| 96 | S161-050166 | SCREW-CROSS R/ROUND | |
| 97 | S411-050006 | WASHER-SPRING | |
| 101 | S403-082006 | WASHER-PLAIN |
