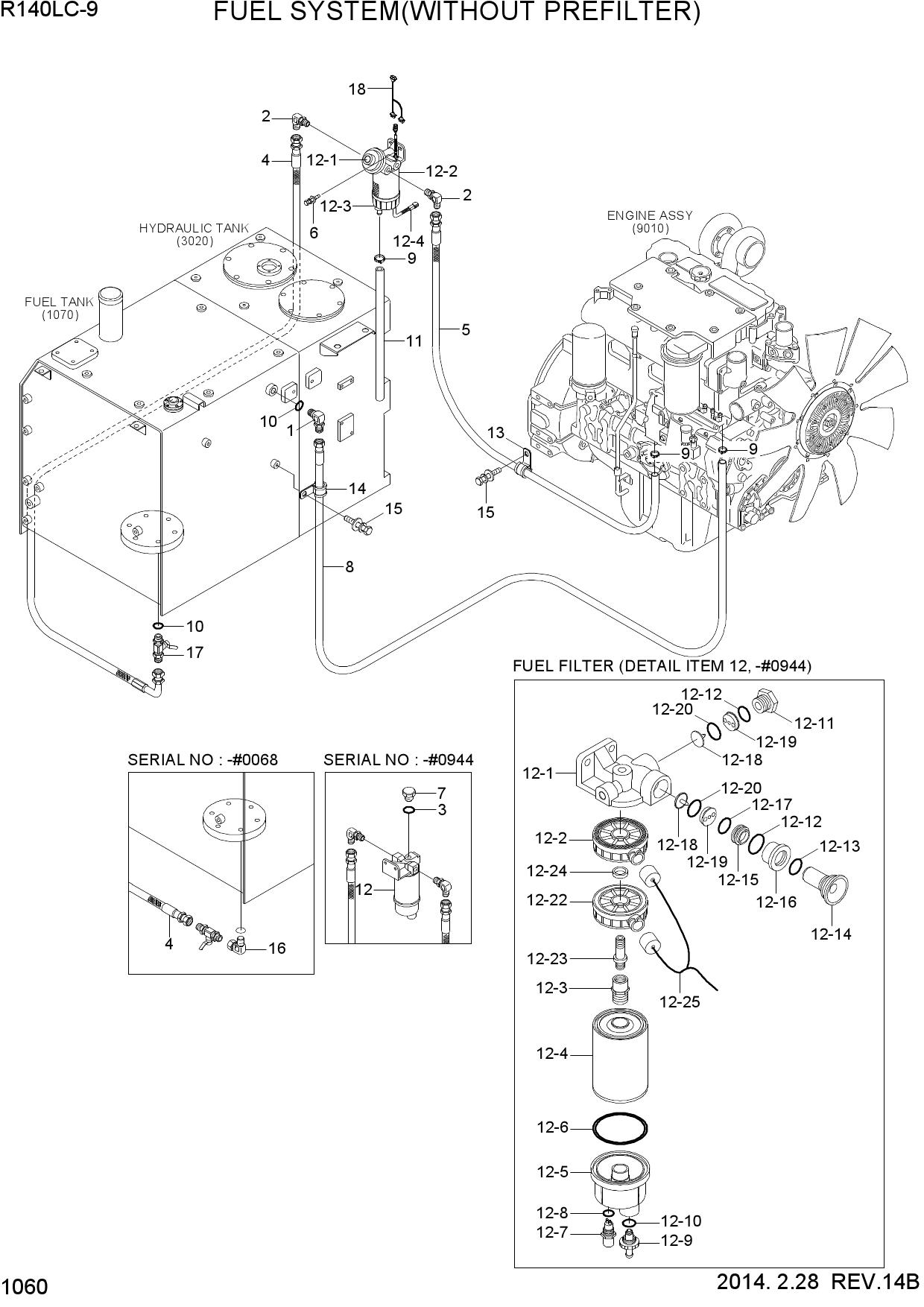

Запчасти для гусеничных экскаваторов Hyundai R140LC-9 FUEL SYSTEM(WITHOUT PREFILTER)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | P020-110003 | ELBOW-90 | |
| 2 | 11N8-50060 | ELBOW-90 | |
| 3 | S631-014001 | O-RING | |
| 4 | 11Q4-54010 | HOSE ASSY | |
| 4 | 11N6-53020 | HOSE-FUEL | |
| 5 | 11N8-50040 | HOSE | |
| 6 | S037-103026 | BOLT-W/WASHER | |
| 7 | P220-110102 | PLUG-HEX | |
| 8 | 11N8-57060 | HOSE-FUEL | |
| 9 | S520-020000 | CLAMP-HOSE | |
| 10 | S631-018001 | O-RING | |
| 11 | 11M8-50030 | HOSE ASSY | |
| 12 | 11NA-71001 | FUEL FILTER & W/S ASSY | |
| 12 | 11NA-73000 | FUEL FILTER & W/S ASSY | |
| 12-1 | 11NA-71010 | HEAD-FILTER | |
| 12-2 | 11NA-71020 | HEATER-FUEL | |
| 12-3 | 11NA-71030 | CONNECTOR | |
| 12-4 | 11NA-71041 | ELEMENT ASSY | |
| 12-5 | 11NA-71050 | BOWL-CLEAR | |
| 12-6 | 11NA-71060 | O-RING | |
| 12-7 | 11NA-71070 | SENSOR | |
| 12-8 | 11NA-71080 | O-RING | |
| 12-9 | 11NA-71090 | VALVE-SCREW | |
| 12-10 | 11NA-71100 | O-RING | |
| N12-11 | 11NA-71110 | PLUG-SCREW | |
| N12-12 | 11NA-71120 | O-RING | |
| N12-13 | 11NA-71130 | O-RING | |
| N12-14 | 11NA-71140 | PUMP-BODY PRIMING | |
| N12-15 | 11NA-71150 | PUMP-HEAD | |
| N12-16 | 11NA-71160 | HOLDER | |
| N12-17 | 11NA-71170 | O-RING | |
| N12-18 | 11NA-71180 | PLATE-VALVE | |
| N12-19 | 11NA-71190 | FRAME-VALVE | |
| N12-20 | 11NA-71200 | O-RING | |
| 12-22 | 11NA-71020 | HEATER-FUEL | |
| 12-23 | 11Q6-50100 | CONNECTOR | |
| 12-24 | 11Q6-50110 | SPACER | |
| 12-25 | 21Q8-23200 | HARNESS-FUEL WARMER | |
| 12 | 11QA-71000 | FUEL FILTER ASSY | |
| 12 | 11QA-73000 | FUEL FILTER ASSY | |
| 12-1 | 11QA-71010 | HEAD ASSY | |
| 12-2 | 11QA-71040 | ELEMENT ASSY | |
| 12-3 | 11QA-71050 | BOWL ASSY | |
| 12-3 | 11QA-71030 | BOWL ASSY | |
| 12-4 | 11QA-71020 | WIF SENSOR ASSY | |
| 13 | S593-000802 | CLIP-HARNESS | |
| 14 | S543-200002 | CLAMP-TUBE | |
| 15 | S037-102026 | BOLT-W/WASHER | |
| 16 | 11Q4-50030 | ELBOW-90 | |
| 17 | 11Q4-50010 | VALVE-FUEL CUT | |
| 17-1 | S631-018004 | O-RING | |
| 18 | 21QB-23500 | HARNESS FUEL WARMER |
