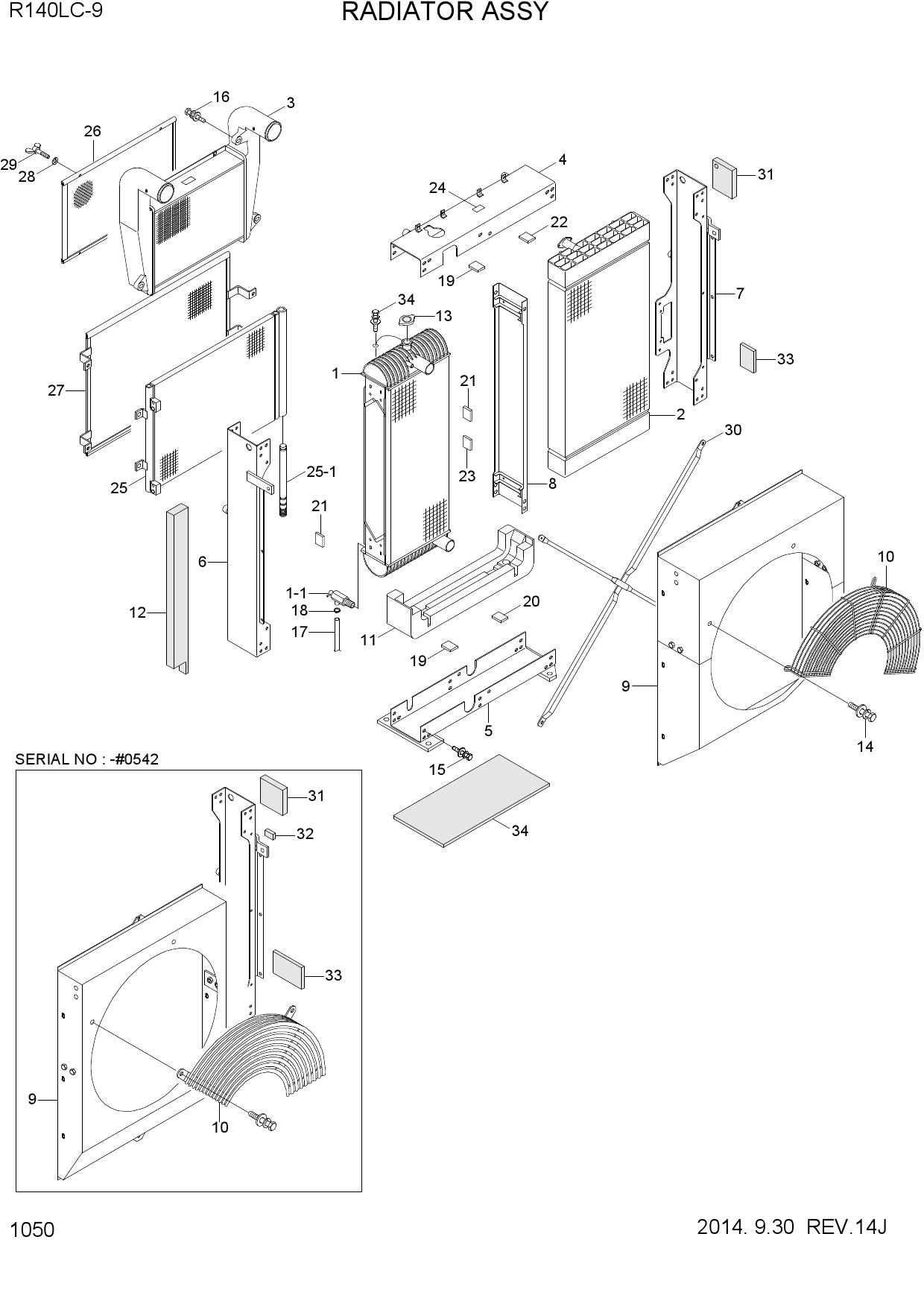

Запчасти для гусеничных экскаваторов Hyundai R140LC-9 RADIATOR ASSY
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 11Q4-44002 | RADIATOR TOTAL ASSY | |
| * | 11Q4-44003 | RADIATOR TOTAL ASSY | |
| * | 11Q4-44400 | RADIATOR TOTAL ASSY | |
| * | 11Q4-44401 | RADIATOR TOTAL ASSY | |
| 1 | 11Q4-44021 | RADIATOR ASSY | |
| 1-1 | AC101180 | COCK-DRAIN | |
| 2 | 11Q4-42022 | OIL COOLER ASSY | |
| 3 | 11Q4-42400 | CHARGE AIR COOLER | |
| 3 | 11Q4-42401 | AIR COOLER-CHARGE | |
| 4 | 11Q4-44030 | SUPPORT ASSY-UPPER | |
| 5 | 11Q4-42320 | SUPPORT-LOWER | |
| 6 | 11Q4-42330 | SUPPORT-LH,SIDE | |
| 7 | 11Q4-42340 | SUPPORT-RH,SIDE | |
| 8 | 11Q4-42350 | SUPPORT-LH,MID | |
| 9 | 11Q4-44011 | SHROUD ASSY | |
| 10 | 11Q4-42051 | GUARD-FAN | |
| 11 | 11Q4-42360 | ISOLATOR | |
| 12 | 11Q4-42160 | SPONGE | |
| 13 | 11N4-49480 | CAP | |
| 14 | AA000003 | BOLT-W/WASHER | |
| 15 | AC100938 | BOLT-W/WASHER | |
| 16 | AC101428 | BOLT ASSY | |
| 16 | AC101421 | BOLT-W/WASHER | |
| 17 | AC101429 | HOSE-DRAIN | |
| 18 | AC101228 | CLIP-HOSE | |
| 19 | AC101231 | SEALING-RAD TOP | |
| 20 | AC101232 | SEALING-RAD,BOTTOM | |
| 21 | AC101242 | SEALING-RAD,SIDE | |
| 22 | AC101233 | SEALING-OC TOP,BOTTOM | |
| 23 | AC101243 | SEALING-OC,SIDE | |
| 24 | AC101250 | NAME PLATE | |
| 24 | AC101382 | NAME PLATE | |
| 25 | 11Q6-90071 | CONDENSER-R/DRYER | |
| 25-1 | A2W00701D | CARTRIDGE ASSY | |
| 26 | 11Q4-42370 | NET-A | |
| 27 | 11Q4-42380 | NET-B | |
| 28 | AB61500208_3 | WASHER-PLAIN | |
| N29 | AC101316 | BOLT-WING | |
| 30 | 11Q4-42390 | BAR-CROSS | |
| 31 | AC101318 | SEALING-A | |
| 31 | AC101672 | SEALING-A | |
| 32 | AC101319 | SEALING-B | |
| 33 | AC101462 | SEALING-C | |
| 33 | AC101320 | SEALING-C | |
| 34 | AC101321 | SEALING-D | |
| 35 | AA000009 | BOLT | |
| 35 | A1W00190 | BOLT |
